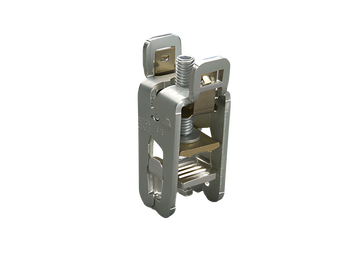

01135000

CRITO^®
brace terminal
35 - 150 mm², AWG 2 - 300 MCM, lam. Cu. 15 - 20 x 5 - 10
for busbars: 12, 15, 20 x 5, 10
