32629000

EQUES^®30Compact

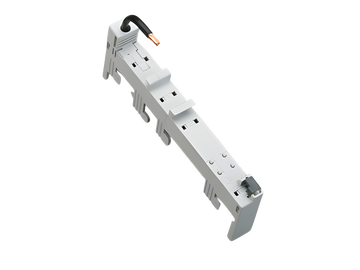

busbar adapter 1-pole, 32 A
1 fixed mounting rail
18 x 160 / 6 mm²
for busbars: 12 x 5
More
