01285000

CRITO^®
universal conductor terminal
4 - 35 mm², AWG 12 - 2
for busbars: flat busbars 5 mm
More

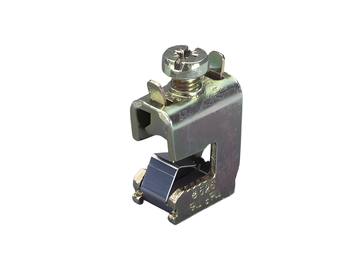

01290000

CRITO^®
universal conductor terminal
4 - 35 mm², AWG 12 - 2
for busbars: flat busbars 10 mm
More
