05793000

insulator
with female thread at both sides, length across flats 22
M5 x 25
More

05780000

insulator
with female thread at both sides, length across flats 30
M6 x 30
More

05792000

insulator
with female thread at both sides, length across flats 30
M8 x 30
More

05781000

insulator
with female thread at both sides, length across flats 32
M6 x 35
More

05782000

insulator
with female thread at both sides, length across flats 32
M8 x 35
More

05783000

insulator
with female thread at both sides, length across flats 40
M8 x 40
More

05784000

insulator
with female thread at both sides, length across flats 40
M10 x 40
More

05791000

insulator
with female thread at both sides, length across flats 40
M12 x 40
More

05786000

insulator
with female thread at both sides, length across flats 46
M8 x 45
More

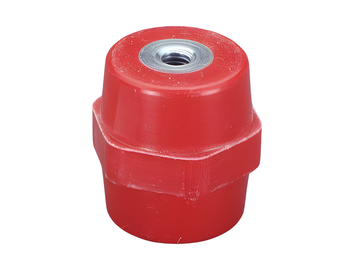

05787000

insulator
with female thread at both sides, length across flats 46
M10 x 45
More

05790000

insulator
with female thread at both sides, length across flats 36
M8 x 50
More

05788000

insulator
with female thread at both sides, length across flats 36
M10 x 50
More

05789000

insulator
with female thread at both sides, length across flats 40
M10 x 60
More

05800000

insulator
with female thread and threaded bolt, length across flats 30
M6 x 30
More

05801000

insulator
with female thread and threaded bolt, length across flats 32
M6 x 35
More

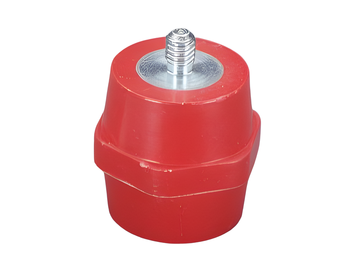

05802000

insulator
with female thread and threaded bolt, length across flats 32
M8 x 35
More

05779000A

insulator
with female thread at both sides, length across flats 20
M6 x 20
NEW
More
