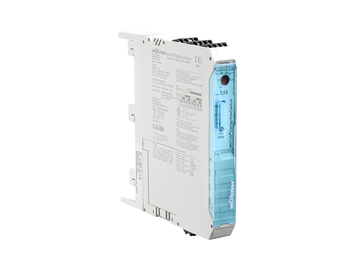

36101000B

MOTUS^®30Compact
hybrid motor starter, 3-pole
direct and reversing starter 0.075 - 0.6 A / switch for resistive loads 0.075 - 0.6 A
for busbars: 12 x 5, 10
More

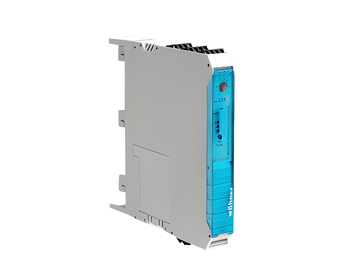

36104000B

MOTUS^®30Compact
hybrid motor starter, 3-pole
direct and reversing starter 0.18 - 2.4 A / switch for resistive loads 0.18 - 2.4 A
for busbars: 12 x 5, 10
More

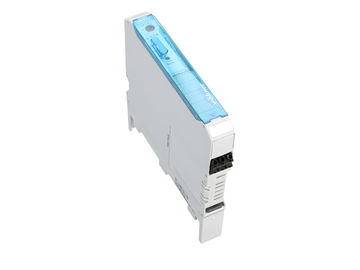

36107000B

MOTUS^®30Compact
hybrid motor starter, 3-pole
direct and reversing starter 1.5 - 6.5 A / switch for resistive loads 1.5 - 9.0 A
for busbars: 12 x 5, 10
More
