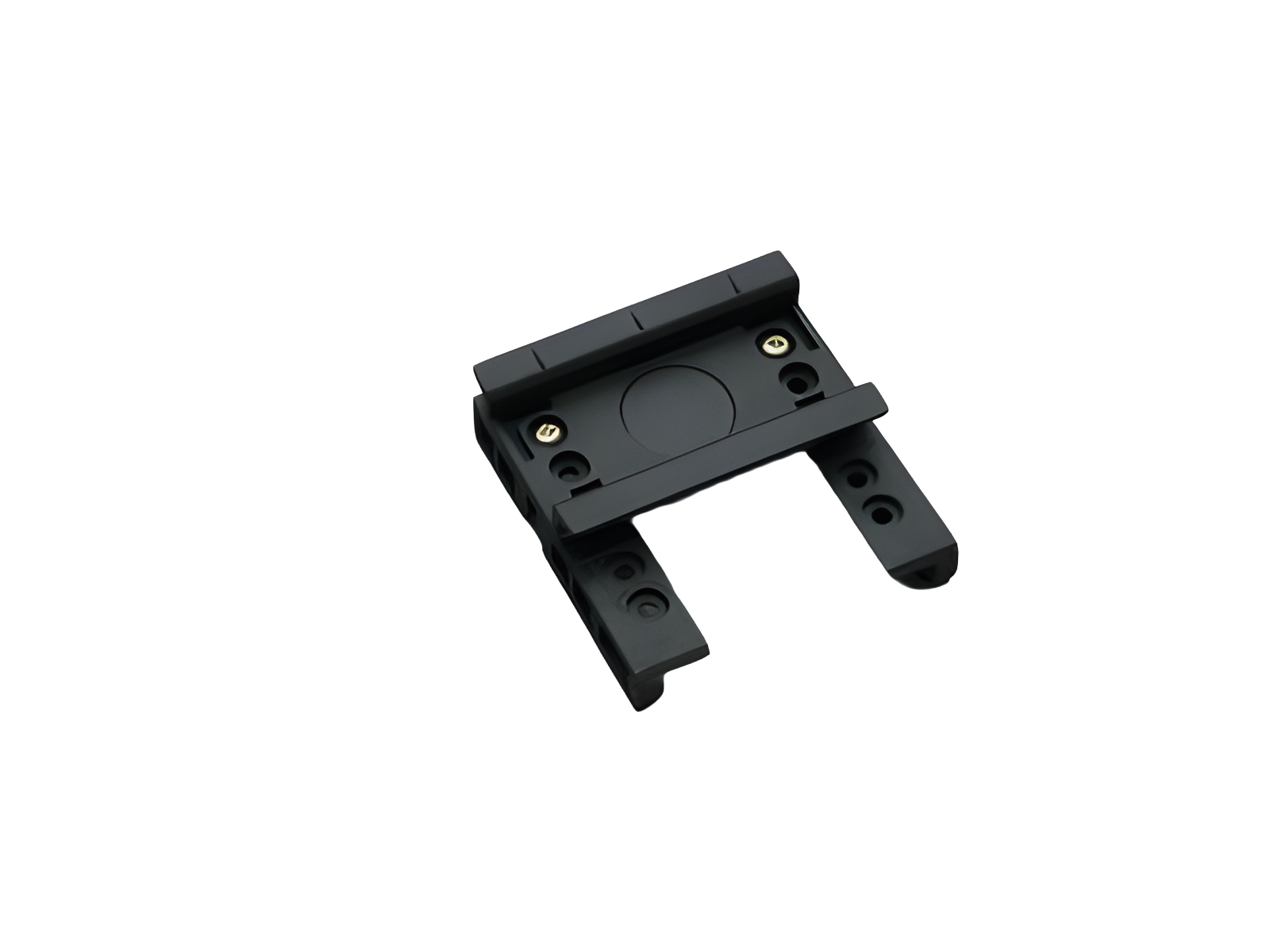

mounting rail 54 mm (32940)

The picture may show a similar product.

Description

Part No.: 32940000A

mounting rail 54 mm

for busbar adapters

NEW

System

CrossBoard® 125A / 250A, CrossBoard® 800 A, 60Classic

Product group 05
Subgroup 57
pack size 10
EAN 4021267329402
ECLASS 6.1 27370390
ECLASS 7.1 27370390
ETIM 4.0 EC000212
ETIM 5.0 EC001285

Approvals

Standards

IEC 61439-1:2020

UL 508

Approvals

CSA , UL , DNV GL

for UL feeder circuits >250V

type number: TS35-L

UL file: E123577, UL category (for USA): NMTR https://www.ul.com

UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com

CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
Details UL
Standards
UL 508
for UL feeder circuits >250V
Mechanical data
W x H x D: 54 x 57 x 19
weight: 1.5 kg/100

Application notes

short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit
for UL feeder circuits >250V

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

32420000
EQUES®60Classic
busbar component support
2 adjustable mounting rails
45 x 200, with removable upper section, without electrical connection
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
