mounting rail 54 mm

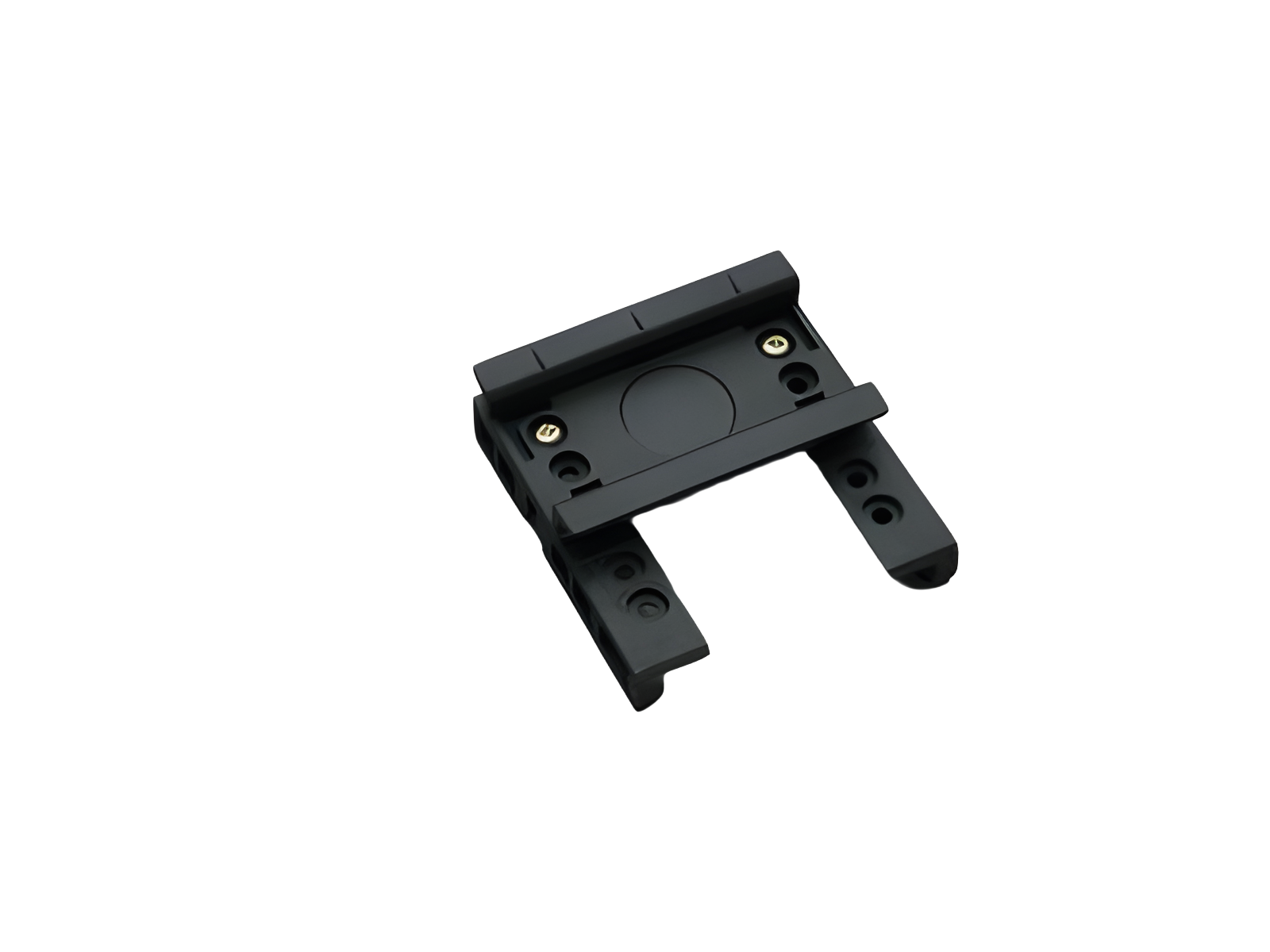

The picture may show a similar product.

Description

Part No.: 32940 000A

mounting rail 54 mm

for busbar adapters

System

CrossBoard® 125A / 250A, CrossBoard® 800 A, 60Classic

Product group	05
Subgroup	57

pack size	10
EAN	4021267329402

ECLASS 14.0	27370390
ETIM 5.0	EC001285
ETIM 8.0	EC001285
ETIM 10.0	EC001285

Approvals

Standards

IEC 61439-1:2020

UL 508

Approvals

CSA , UL , DNV GL

for UL feeder circuits >250V

type number: TS35-L

EAC Type: AC-A

UL file: E123577, UL category (for USA): NMTR https://www.ul.com

UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com

CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020

Details UL
Standards
UL 508

for UL feeder circuits >250V

Mechanical data
W x H x D:	54 x 35 x 19
weight:	1.5 kg/100

Material properties
Material:	Plastic
halogen-free:	Yes

Application notes


not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit


for UL feeder circuits >250V

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| Data packet EPlan (*.edz)

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

Usage
