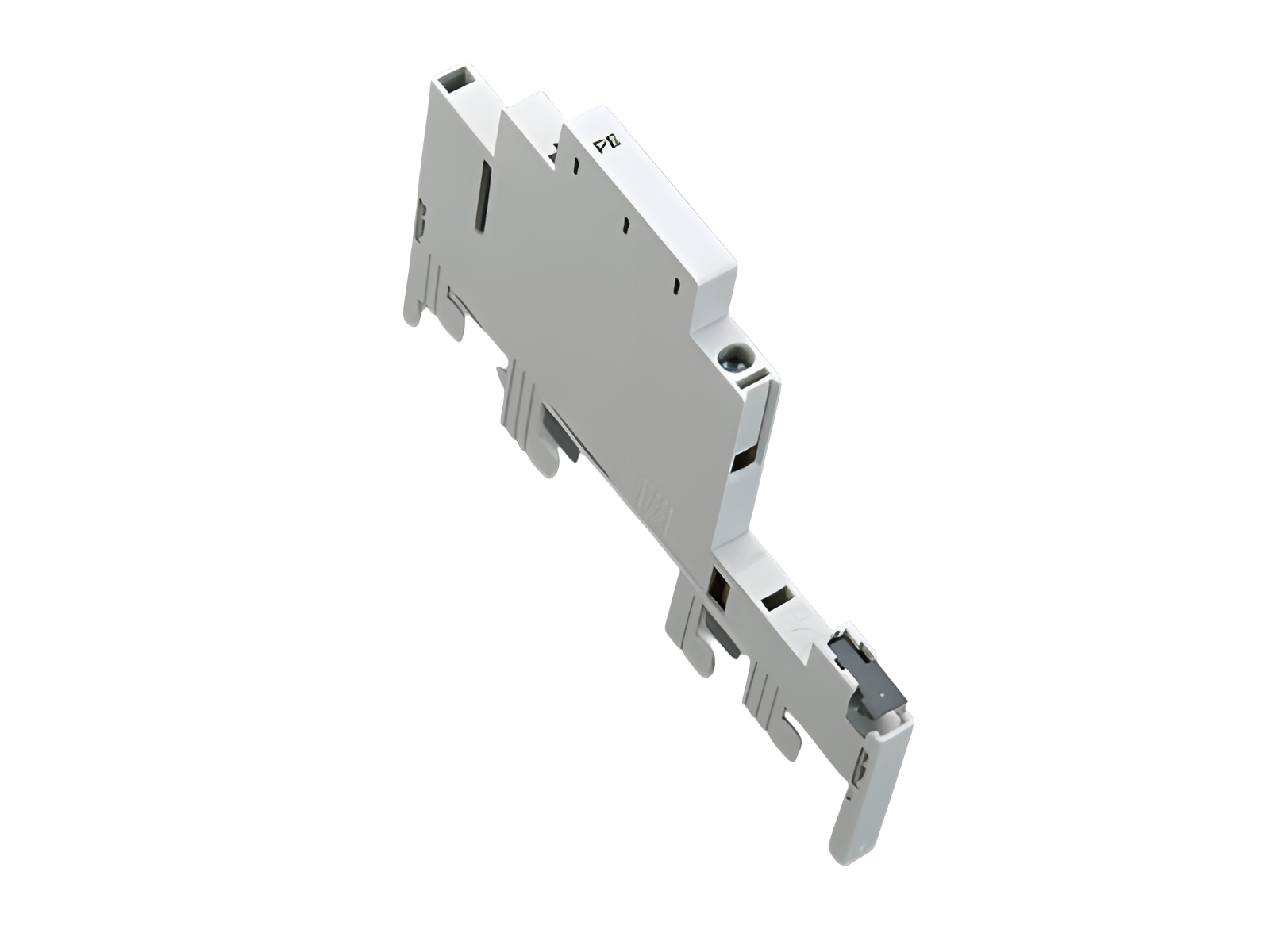

The picture may show a similar product.
Part No.: 32634 000
module PE
terminal 16 mm²
9 x 160
for busbars 12 x 5
System
30Compact 5P
| Product group | 05 |
| Subgroup | 44 |
| pack size | 12 |
| EAN | 4021267326340 |
| ECLASS 14.0 | 27370304 |
| ETIM 5.0 | EC001531 |
| ETIM 8.0 | EC001531 |
| ETIM 10.0 | EC001531 |
Standards
IEC 61439-1:2020
EAC Type: EQ
CCC approval: no certification required
| Details IEC | |
| Standards | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| rated voltage (IEC) AC: | 690 V |
| rated isolation voltage Ui AC: | 690 V |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0.5 W.
(The power dissipation at full load would be 0.8 W.)
| Connecting terminal 1.5 - 16mm² |
| Mechanical data | |
| W x H x D: | 9 x 160 x 114 |
| weight: | 4.4 kg/100 |
| for busbars: | 12 x 5 |
| Material properties | |
| halogen-free: | Yes |
