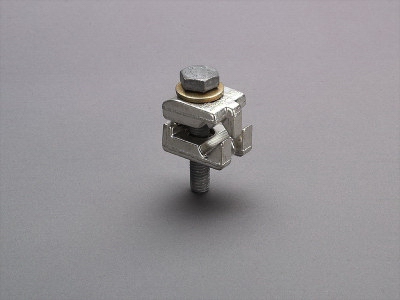

The picture may show a similar product.
Part No.: 33268000
direct terminal Cu and Al
size 3
| Product group | 12 |
| Subgroup | 70 |
| pack size | 3 |
| EAN | 4021267332686 |
| ECLASS 6.1 | 27142190 |
| ECLASS 7.1 | 27142190 |
| ETIM 4.0 | EC002498 |
| ETIM 5.0 | EC002498 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
| Details IEC | |
| Standards | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Mechanical data | |
| weight: | 10.1 kg/100 |
1 x 35-150mm² s(s) 1 x 50-185mm² sol(s) 1 x 35- 70mm² s(r) 1 x 50mm² sol(r)
Connections not maintenance-free if aluminium conductors are used
| Terminal points | |
| min. cross-section: | 35 mm² |
| max. cross-section: | 185 mm² |
| short-circuit withstandability: | determined by main product |
