direct terminal Cu and Al (33268)

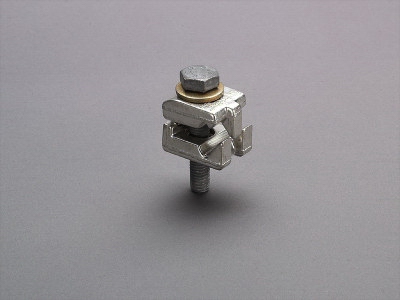

The picture may show a similar product.

Description

Part No.: 33268 000

direct terminal Cu and Al

size 3

Product group 12
Subgroup 70
pack size 3
EAN 4021267332686
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Mechanical data
weight: 10.1 kg/100

1 x 35-150mm² s(s) 1 x 50-185mm² sol(s) 1 x 35- 70mm² s(r) 1 x 50mm² sol(r)

Connections not maintenance-free if aluminium conductors are used

Terminal points
min. cross-section: 35 mm²
max. cross-section: 185 mm²

Application notes

determined by main product

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)
