lateral cover support (33113)

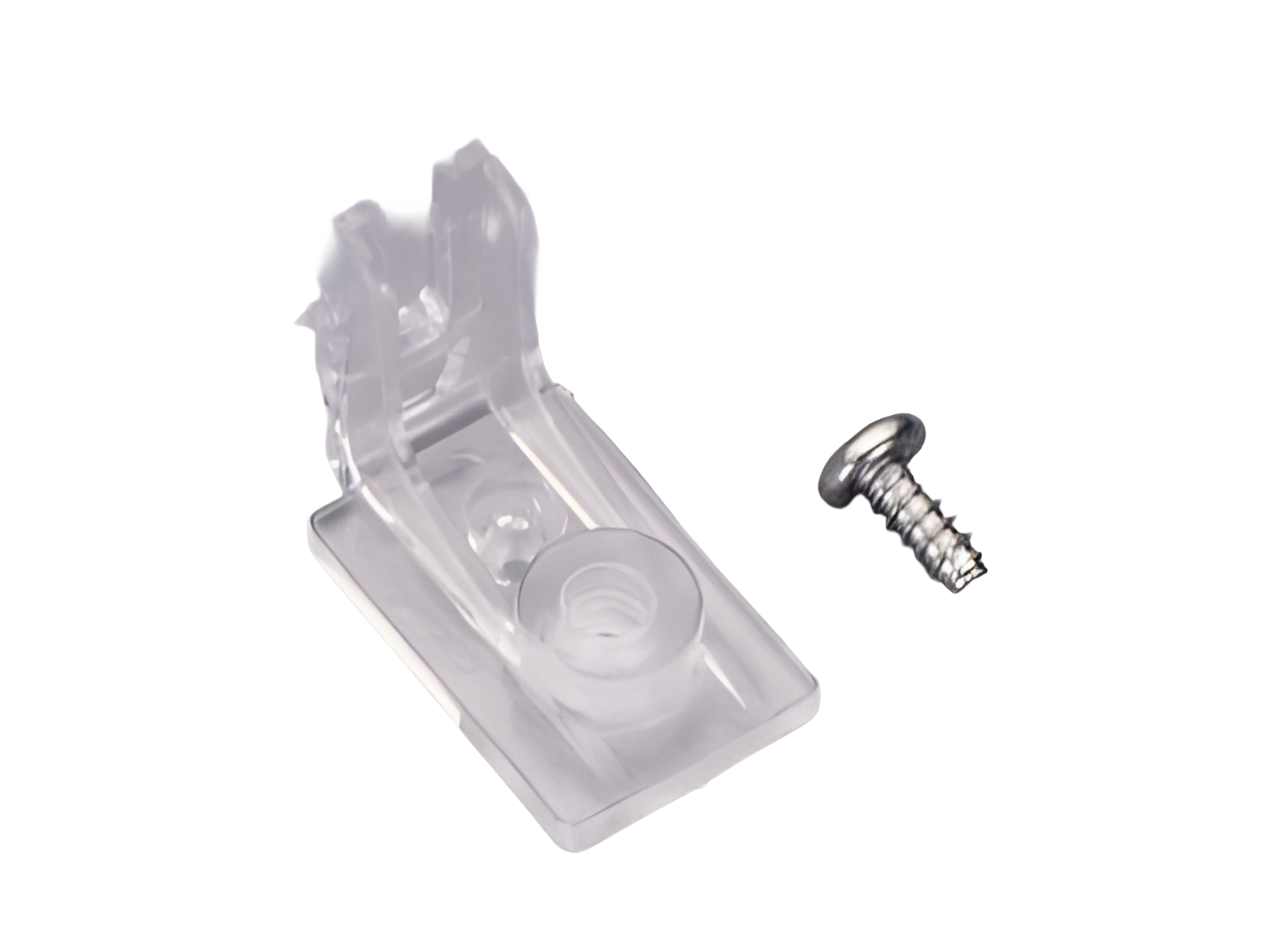

The picture may show a similar product.

Description

Part No.: 33113000

lateral cover support

for front covers

size 00 - 3

System

100Energy

Product group	12
Subgroup	70

pack size	1
EAN	4021267331139

ECLASS 6.1	27142190
ECLASS 7.1	27142190
ETIM 4.0	EC002498
ETIM 5.0	EC002498
