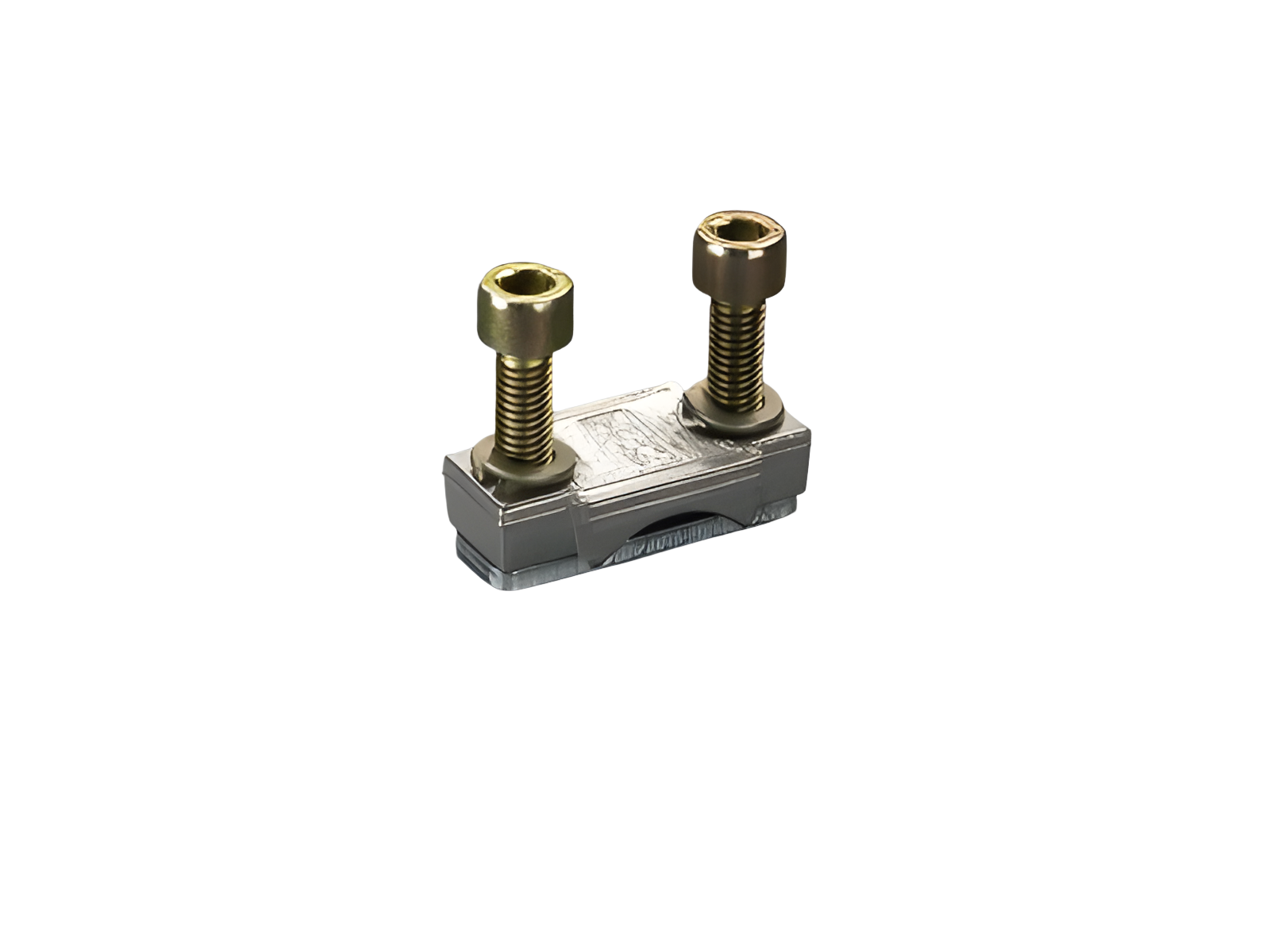

clamp connector for Cu cables (33165)

The picture may show a similar product.

Description

Part No.: 33165000

clamp connector for Cu cables

150 - 300 mm²

for QCB-NH3, LTS-F 630, LTS 800

System

60Classic

Product group	09
Subgroup	51

pack size	1
EAN	4021267331658

catalog page

2020 : 3.24, 6.14, 6.21, 6.22

ECLASS 6.1	27142190
ECLASS 7.1	27142190
ETIM 4.0	EC002498
ETIM 5.0	EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Approvals

EAC

EAC Type: AC-A

Technical data

Details IEC
Standards
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only

Electrical data
short-circuit withstandability:	determined by main product

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0.0 W.

(The power dissipation at full load would be 0.0 W.)

Mechanical data
weight:	12.5 kg/100

Cu 150-300mm² s(r), f+AE, lam. Cu 25x (1-13)mm

Terminal points
Not suitable for aluminium cables !

25 x 13

Links

Article master data, overviews and prices

Current metal surcharges

Downloads

| General technical information

| Mounting instructions

| CAD model 3D PDF

| CAD model 3D STP

| Dimensioned drawing

| EU declaration of conformity

| Declaration of conformity UKCA

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

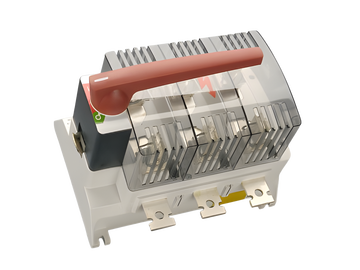

33362000
CAPUS^®Panel
switch disconnector with fuses, 3-pole
screw M12, red handle
size 3
More

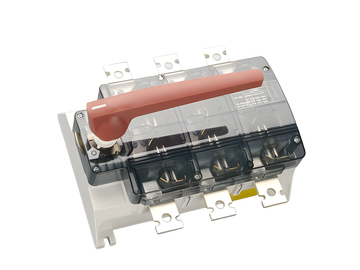

33358000
CAPUS^®Panel
switch-disconnector 3-pole
screw M12, red handle
800 A
More

33603000
QUADRON^®60Classic
NH fuse switch-disconnector size 3, 630 A
screw M12
connection top or bottom
for busbars: 12, 20, 30 x 10 and section busbars
More

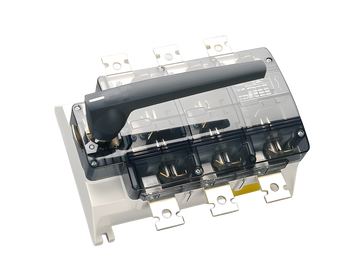

33336000
