The picture may show a similar product.
Part No.: 31073000

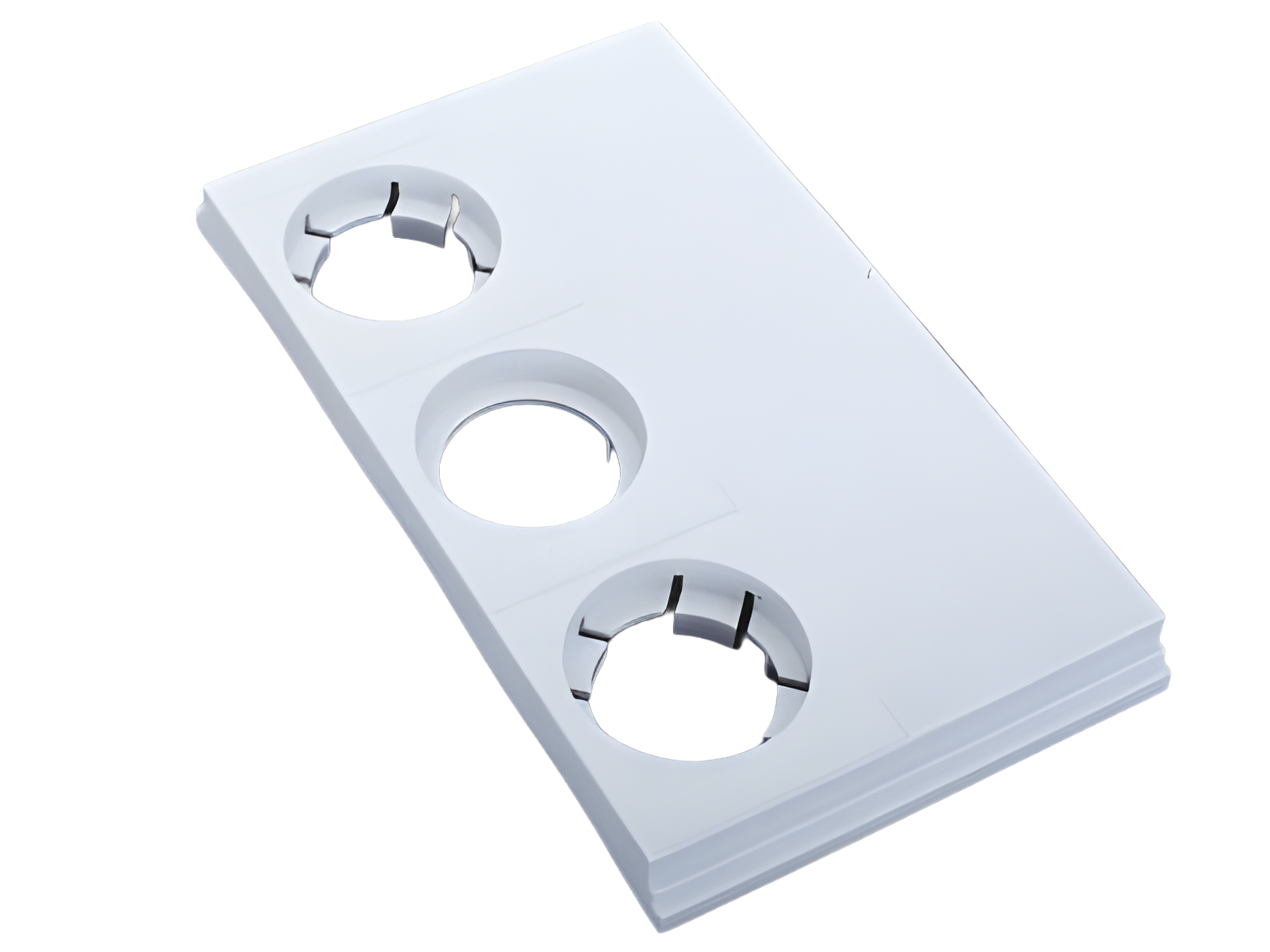

D strip cover
E 33
2-fold, elevated, 114 mm wide
System
60Classic
| Product group | 01 |
| Subgroup | 33 |
| pack size | 5 |
| EAN | 4021267310738 |
| ECLASS 6.1 | 27142104 |
| ECLASS 7.1 | 27142104 |
| ETIM 4.0 | EC000241 |
| ETIM 5.0 | EC000241 |
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-3:2010 + A1:2013 + A2:2019
Approvals
DNV GL
| Details IEC | |
| Standards | |
|
IEC 60269-1:2006 + A1:2009 + A2:2014 IEC 60269-3:2010 + A1:2013 + A2:2019 |
| Mechanical data | |
| W x H x D: | 114 x 200 x 17 |
| weight: | 10.8 kg/100 |
| poles: | 3-pole |
| Terminal points | |
| Not suitable for aluminium cables ! |
| There must be a clearance of at least 10 mm above the article to remove it from the busbar system. | |
| Not suitable for aluminium cables ! | |
|
Reference |
Labelling fields above and below the fuse. |
| short-circuit withstandability: | not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit |
