D strip cover (31073)

The picture may show a similar product.

Description

Part No.: 31073000

D strip cover

E 33

2-fold, elevated, 114 mm wide

System

60Classic

Product group 01
Subgroup 33
pack size 5
EAN 4021267310738
ECLASS 6.1 27142104
ECLASS 7.1 27142104
ETIM 4.0 EC000241
ETIM 5.0 EC000241

Approvals

Standards

IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-3:2010 + A1:2013 + A2:2019

Approvals

DNV GL

Technical data

Details IEC
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-3:2010 + A1:2013 + A2:2019
Mechanical data
W x H x D: 114 x 200 x 17
weight: 10.8 kg/100
poles: 3-pole
Terminal points
Not suitable for aluminium cables !

Application notes

There must be a clearance of at least 10 mm above the article to remove it from the busbar system.
Not suitable for aluminium cables !

Reference

Labelling fields above and below the fuse.

short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Downloads

Accessories

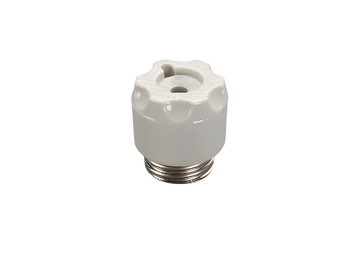

01100000
D-screw cap, porcelain
500 V
E 33
More

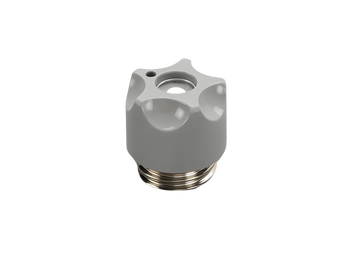

31100000
D-screw cap, plastic
500 V
E 33
More

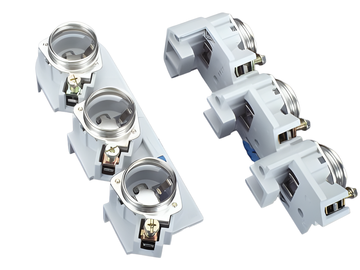

31409000
CUSTO®60Classic
D-fuse base, busbar mounted, 57mm
for busbar 10 mm, gauge ring
E 33 / 3P
for busbars: 12, 15, 20, 25, 30 x 10  and section busbars
More

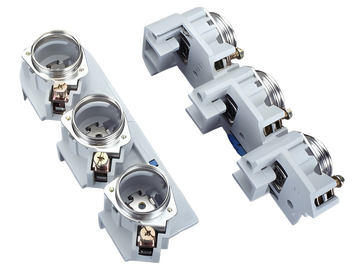

31442000
CUSTO®60Classic
D-fuse base, busbar mounted, 57mm
screw-in gauge ring
E 33 / 3P
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

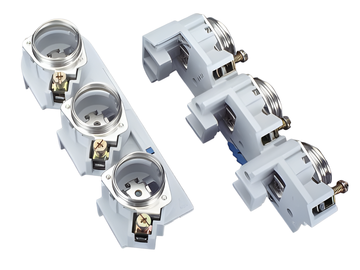

31482000
CUSTO®60Classic
D-fuse base, busbar mounted, 57mm
for busbar 10 mm, screw-in gauge ring
E 33 / 3P
for busbars: 12, 15, 20, 25, 30 x 10  and section busbars
More

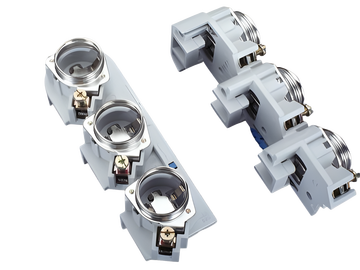

31919000
CUSTO®60Classic
D-fuse base, busbar mounted, 57mm
gauge ring
E 33 / 3P
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

79663000
shock protection cover
attachable on either side
for strip covers
More

Usage

31482000
CUSTO®60Classic
D-fuse base, busbar mounted, 57mm
for busbar 10 mm, screw-in gauge ring
E 33 / 3P
for busbars: 12, 15, 20, 25, 30 x 10  and section busbars
More

31409000
CUSTO®60Classic
D-fuse base, busbar mounted, 57mm
for busbar 10 mm, gauge ring
E 33 / 3P
for busbars: 12, 15, 20, 25, 30 x 10  and section busbars
More

31442000
CUSTO®60Classic
D-fuse base, busbar mounted, 57mm
screw-in gauge ring
E 33 / 3P
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

31919000
CUSTO®60Classic
D-fuse base, busbar mounted, 57mm
gauge ring
E 33 / 3P
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More
