current transformer 150 A / 5 A (33744)

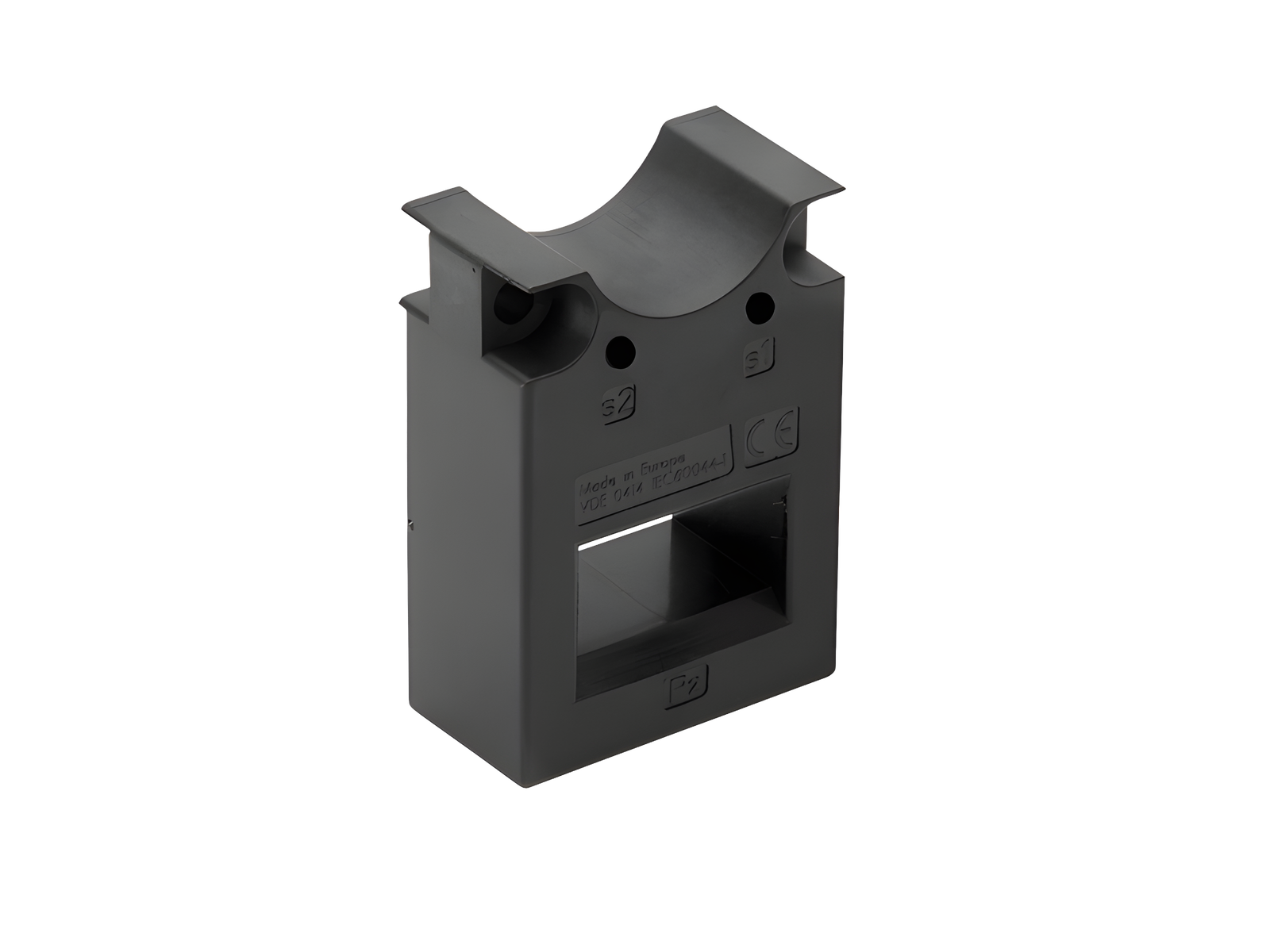

The picture may show a similar product.

Description

Part No.: 33744 000

current transformer 150 A / 5 A

Size CT5

1.5 VA / class 1

size 1 - 3

System

185Power

Product group 23
Subgroup 05
pack size 1
EAN 4021267337445
ECLASS 6.1 27210902
ECLASS 7.1 27210902
ETIM 4.0 EC002048
ETIM 5.0 EC002048

Approvals

Standards

IEC 61869-1:2007
IEC 61869-2:2012

CCC approval: no certification required

Technical data

size: CT5
Details IEC
Standards
IEC 61869-1:2007
IEC 61869-2:2012
Electrical data IEC
prim. rated current Ipr: 150 A
sec. rated current: 5 A
sec. rated apparent power: 1.5 VA
accuracy class (current): 1
max. operation voltage Um: 720 V
therm. short-time current Ith: 9 kA
class of insulation: B
over-current limitation factor: FS5

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 1.0 W.

(The power dissipation at full load would be 1.5 W.)

Mechanical data
W x H x D: 49 x 27 x 70
weight: 14.0 kg/100
sealable: nein
Terminal points
with leads
2,5 mm² / 1,50 m
