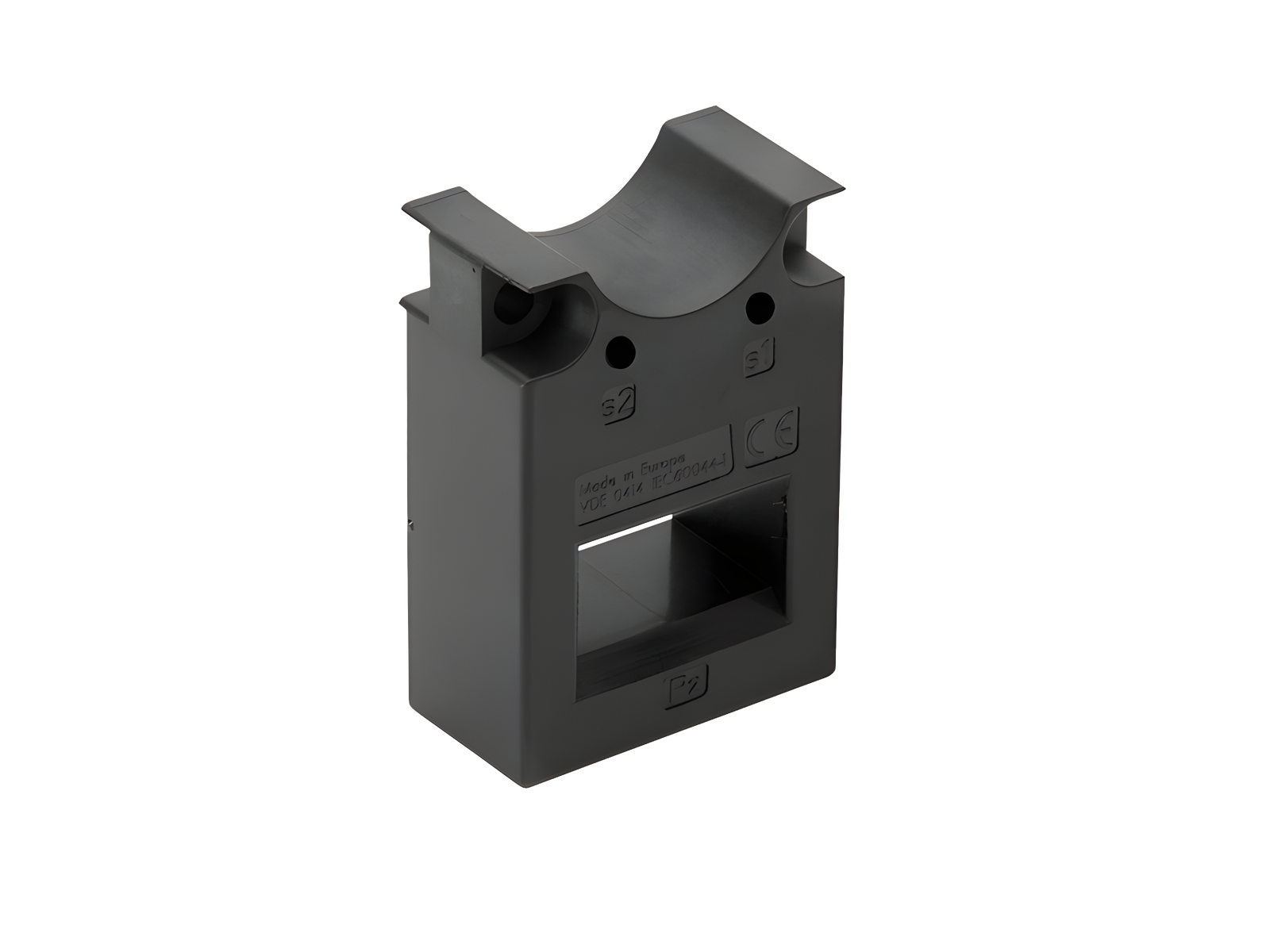

transformateur de courant 150 A / 5 A (33744)

The picture may show a similar product.

Description

Référence 33744000

transformateur de courant 150 A / 5 A

1,5 VA / classe 1

taille 1 - 3

Système

185Power

Groupe de produits 23
Sous-groupe 05
Dimensions de l'emballage 1
EAN 4021267337445
ECLASS 6.1 27210902
ECLASS 7.1 27210902
ETIM 4.0 EC002048
ETIM 5.0 EC002048

Homologations

Normes

IEC 61869-1:2007
IEC 61869-2:2012

Homologation CCC: no certification required

Données techniques

Taille: CT3
Details IEC
Normes
IEC 61869-1:2007
IEC 61869-2:2012
Electrical data IEC
prim. rated current In: 150 A
sec. rated current: 5 A
sec. rated apparent power: 1.5 VA
accuracy class (current): 1
max. operation voltage Um: 720 V
therm. short-time current Ith: 9 kA
class of insulation: B
over-current limitation factor: FS5

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 1,0 W.

(The power dissipation at full load would be 1,5 W.)

Charactéristiques mécaniques
L x H x P: 49 x 27 x 70
Poids: 14,0 kg/100
sealable: nein
Points de raccordement
with leads
2,5 mm² / 1,50 m

Links

Documentation

Usage

33728000A
adaptateur double
pour 2 réglettes taille NH 00
pour jeux de barres: 30, 40, 60, 80, 100, 120 x 10
