V-clamp (33563)

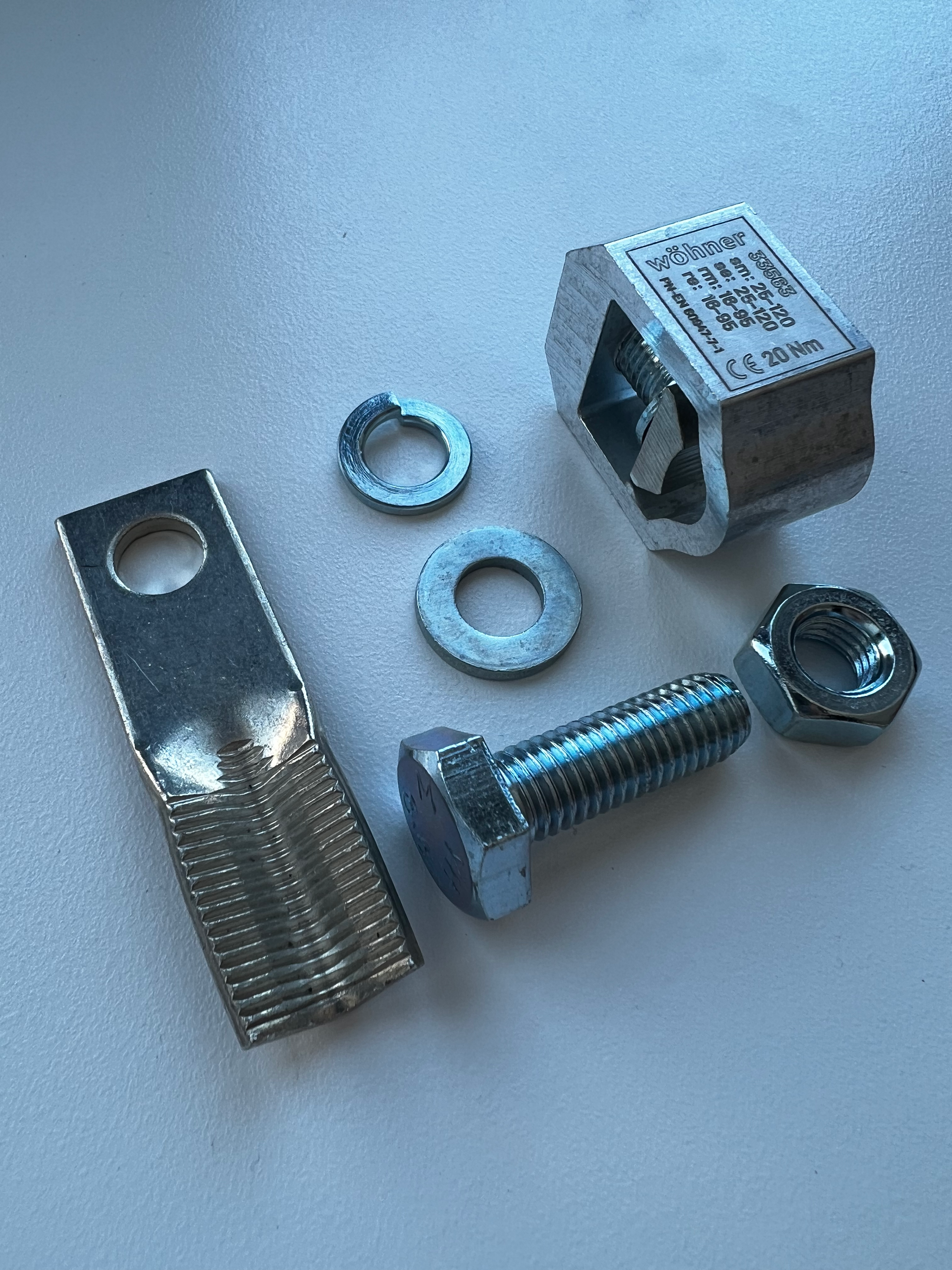

The picture may show a similar product.

Description

Part No.: 33563000A

V-clamp

terminal body alu, pressure piece brass

for PEN

for Cu / Al 16 - 120 mm²

coming soon

System

185Power

Product group 12
Subgroup 70
pack size 1
EAN 4021267336530
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Electrical data

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0.0 W.

(The power dissipation at full load would be 0.0 W.)

Mechanical data
weight: 4.8 kg/100
Terminal points
min. cross-section: 16 mm²
max. cross-section: 120 mm²
re: 16 - 95 mm²
rm: 16 - 95 mm²
se: 25 - 120 mm²
sm: 25 - 120 mm²
Suitable for aluminium conductors.
the temperature of aluminium conductors must not exceed 80°C (see operating instructions)
pre-treatment of aluminium conductors: see general technical information (under Downloads)

Application notes

Suitable for aluminium conductors.
the temperature of aluminium conductors must not exceed 80°C (see operating instructions)
pre-treatment of aluminium conductors: see general technical information (under Downloads)
short-circuit withstandability: determined by main product

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| Operation instructions

| EU declaration of conformity

| Product description (PDF) - draft

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf) - draft

| Text for specification - standard version (*.rtf) - draft

| Text for specification - GAEB90 (in German) (*.d81)
