connection kit (33563)

The picture may show a similar product.

Description

Part No.: 33563 000B

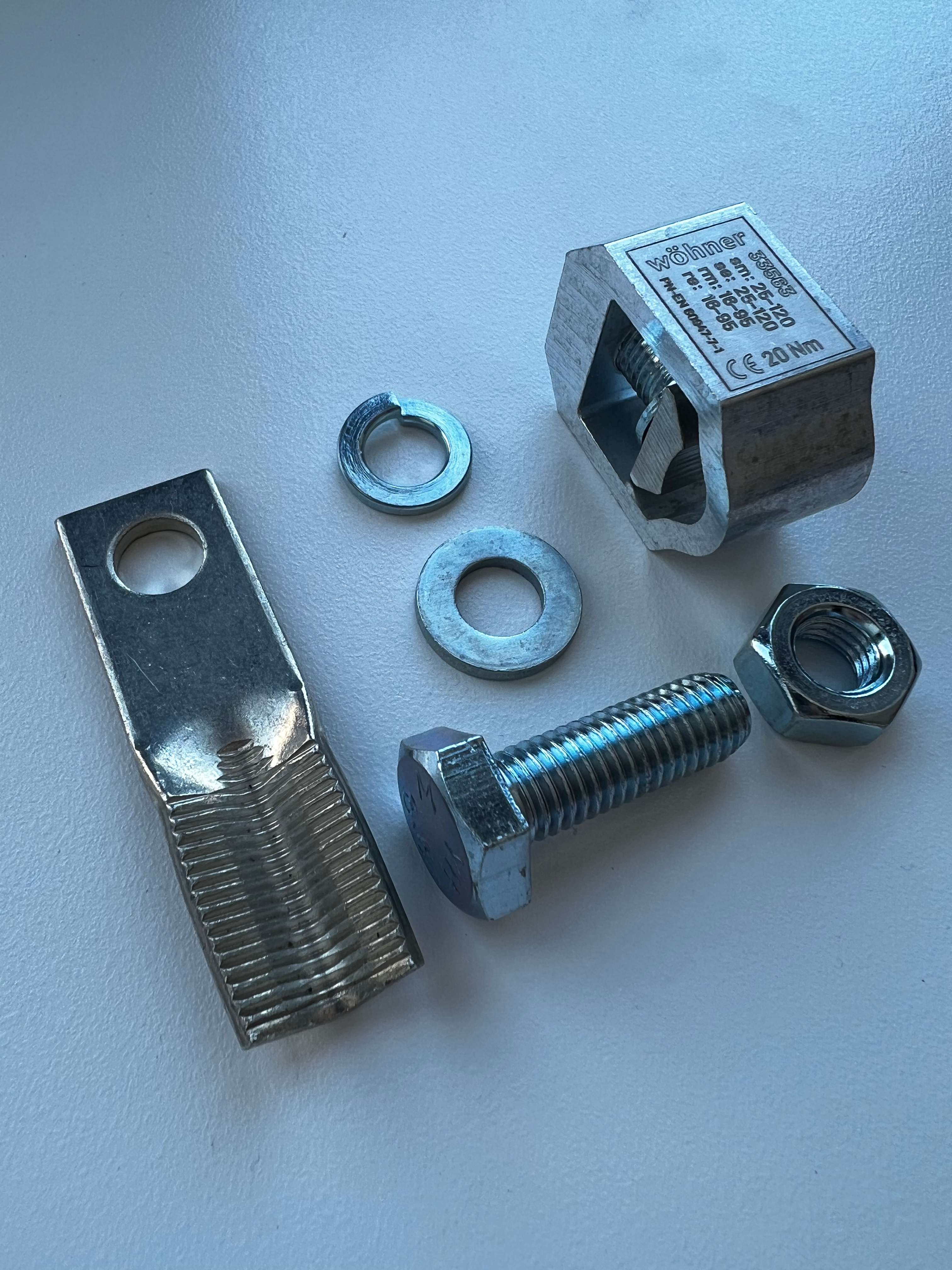

connection kit

with 1 V-clamp, without cover

terminal body alu, pressure piece brass

for Cu / Al 16 - 120 mm²

e.g. for drilled PE or N bars

coming soon

System

185Power

Product group 12
Subgroup 70
pack size 1
EAN 4021267335632
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Electrical data IEC
rated current (IEC): 100 A

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0.0 W.

(The power dissipation at full load would be 0.0 W.)

Mechanical data
W x H x D: 22 x 33 x 44
weight: 14.5 kg/100
Terminal points
v-clamp
min. cross-section: 16 mm²
max. cross-section: 120 mm²
re: 16 - 95 mm²
rm: 16 - 95 mm²
se: 25 - 120 mm²
sm: 25 - 120 mm²
Suitable for aluminium conductors.
the temperature of aluminium conductors must not exceed 80°C (see operating instructions)
pre-treatment of aluminium conductors: see general technical information (under Downloads)

Application notes

Suitable for aluminium conductors.
the temperature of aluminium conductors must not exceed 80°C (see operating instructions)
pre-treatment of aluminium conductors: see general technical information (under Downloads)

determined by main product
