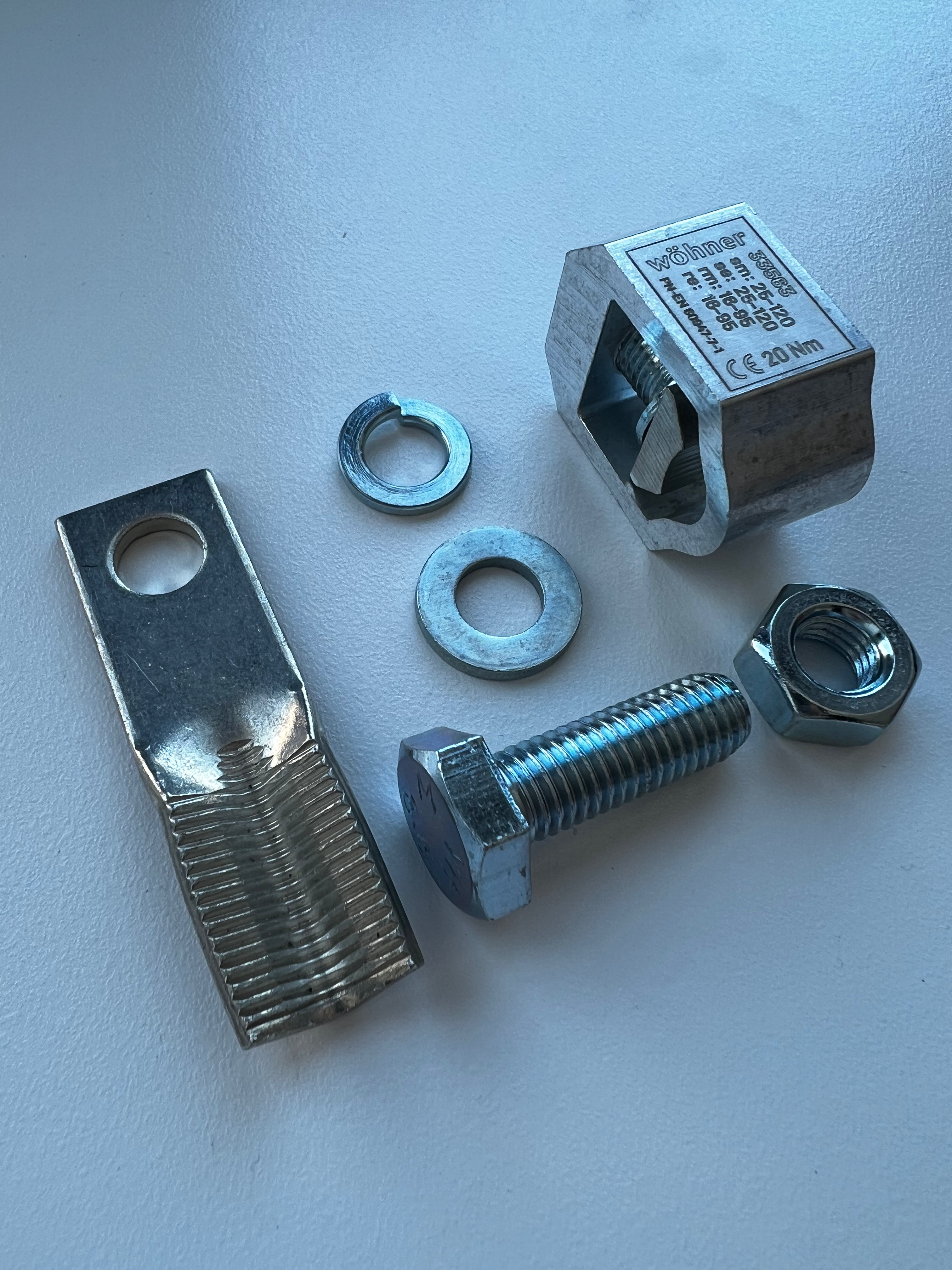

V-clamp (33563)

The picture may show a similar product.

说明

订货号 33563000A

V-clamp

terminal body alu, pressure piece brass

for PEN

for Cu / Al 16 - 120 mm²

短期内将供货

系统

185Power

产品组 12

分组

70
包装件数 1
EAN 4021267336530
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498

认证

标准

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

CCC 认证: 无需强制认证

产品信息

Details IEC
标准
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

电气数值

功率输出:

The power dissipation at a typical load of 80 % results to 0.0 W.

(The power dissipation at full load would be 0.0 W.)

机械数值
重量: 4.8 kg/100
连接端
min. cross-section: 16 mm²
最大横截面积: 120 mm²
re: 16 - 95 mm²
rm: 16 - 95 mm²
se: 25 - 120 mm²
sm: 25 - 120 mm²
Suitable for aluminium conductors.
the temperature of aluminium conductors must not exceed 80°C (see operating instructions)
pre-treatment of aluminium conductors: see general technical information (under Downloads)

Application notes

Suitable for aluminium conductors.
the temperature of aluminium conductors must not exceed 80°C (see operating instructions)
pre-treatment of aluminium conductors: see general technical information (under Downloads)
短路稳定性: 由主产品决定

链接

下载

Usage

33535000A
QUADRON®185Power
条形熔断器式隔离开关 160 A
尺寸 00,单极分断
high Version with V-clamp 95 mm²
Klemmengehäuse Alu, Druckstück Stahl
适用母线: 30, 40, 60, 80, 100, 120 x 10
短期内将供货
更多

33539000A
QUADRON®185Power
条形熔断器式隔离开关 160 A
尺寸 00,单极分断
flat Version with V-clamp 95 mm²
Klemmgehäuse Alu, Druckstück Stahl
适用母线: 30, 40, 60, 80, 100, 120 x 10
短期内将供货
更多

33529000A
QUADRON®185Power
条形熔断器式隔离开关 160 A
尺寸 00,单极分断
flat version with V-clamp 95 mm²
terminal body Al, pressure piece brass
适用母线: 30, 40, 60, 80, 100, 120 x 10
短期内将供货
更多

33534000A
QUADRON®185Power
条形熔断器式隔离开关 160 A
尺寸 00,3 极分断
flat version with V-Clamp 95 mm²
Klemmengehäuse Alu, Druckstück Stahl
适用母线: 30, 40, 60, 80, 100, 120 x 10
短期内将供货
更多

33525000A
QUADRON®185Power
条形熔断器式隔离开关 160 A
尺寸 00,单极分断
high version with V-clamp 95 mm²
Klemmgehäuse Alu, Druckstück Messing
适用母线: 30, 40, 60, 80, 100, 120 x 10
短期内将供货
更多

37525000B
QUADRON®185Power
条形熔断器式隔离开关 160 A
尺寸 00,单极分断
high version with V-clamp 95 mm²
Klemmgehäuse Alu, Druckstück Messing
适用母线: 30, 40, 60, 80, 100, 120 x 10
短期内将供货
更多

37525000A
QUADRON®185Power
条形熔断器式隔离开关 160 A
尺寸 00,单极分断
high version with V-clamp 95 mm²
Klemmgehäuse Alu, Druckstück Messing
适用母线: 30, 40, 60, 80, 100, 120 x 10
短期内将供货
更多

33520000A
QUADRON®185Power
条形熔断器式隔离开关 160 A
尺寸 00,3 极分断
high version with V-clamp 95 mm²
Klemmengehäuse Alu, Druckstück Messing
适用母线: 30, 40, 60, 80, 100, 120 x 10
短期内将供货
更多

33530000A
QUADRON®185Power
条形熔断器式隔离开关 160 A
尺寸 00,3 极分断
high version with V-clamp 95 mm²
Klemmgehäuse Alu, Druckstück Stahl
适用母线: 30, 40, 60, 80, 100, 120 x 10
短期内将供货
更多

37520000A
QUADRON®185Power
条形熔断器式隔离开关 160 A
尺寸 00,3 极分断
high version with V-clamp 95 mm²
Klemmengehäuse Alu, Druckstück Messing
适用母线: 30, 40, 60, 80, 100, 120 x 10
短期内将供货
更多

37520000B
QUADRON®185Power
条形熔断器式隔离开关 160 A
尺寸 00,3 极分断
high version with V-clamp 95 mm²
Klemmengehäuse Alu, Druckstück Messing
适用母线: 30, 40, 60, 80, 100, 120 x 10
短期内将供货
更多
