Part No.: 23009 000AD
CAPUS®Panel
switch-disconnector 3-pole
screw M12, graphite-grey handle
2500 A
for mounting plate
S32-2500/3
System
Panel
| Product group | 14 |
| Subgroup | 18 |
| pack size | 1 |
| EAN | 4021267230098 |
| ECLASS 6.1 | 27371403 |
| ECLASS 7.1 | 27371403 |
| ETIM 4.0 | EC000216 |
| ETIM 5.0 | EC000216 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Approvals
CCC
type number: CP-S32-2500/3P
| size: | 5 |
| Details IEC | |
| Standards | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Electrical data IEC | |
| rated current (IEC): | 2500 A |
| rated voltage (IEC) AC: | 500 V |
| rated isolation voltage Ui AC: | 1000 V |
| rated surge voltage Uimp : | 12 kV |
| rated short-time withstand current Icw (1.0 s) max.: | 50 kA |
| rated making capacity: | 110 kA |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 240.0 W.
(The power dissipation at full load would be 375.0 W.)
| Gebrauchskategorien siehe Datenblatt (unter Downloads) |
| Mechanical data | |
| W x H x D: | 385 x 450 x 248 |
| weight: | 2850.0 kg/100 |
| poles: | 3-pole |
| Mounting: | for mounting plate |
all poles switched at the same time
23919
000AD
connection space cover, top / bottom attachable
for covering all terminals at one side of the switch, transparent
for 3P, 3P+N, 4P
for: S32 2500 A / 3150 A
More
23903
000AD
door coupling rotary drive
graphite grey, without handle
without door interlock
for: S32 630 A / 1000 A / 1250 A / 1600 A / 2500 A / 3150 A
More
23906
000AD
door coupling rotary drive
graphite grey, without handle
with door interlock, for padlocks
for: S32 630 A / 1000 A / 1250 A / 1600 A / 2500 A / 3150 A
More
23909
000AD
door coupling rotary drive
graphite grey, without handle
with door interlock, for padlocks
for: S32 630 A / 1000 A / 1250 A / 1600 A / 2500 A / 3150 A
More
23914
000AD
door coupling rotary drive
yellow-red, with handle
with door interlock, for padlocks
for: S32 2500 A / 3150 A
More
23921
000AD
pilot switch
1 n/c + 1 n/o, plug connectors 6.3 x 0.8
for: S32 250 A / 400 A / 630 A / 1000 A / 1250 A / 1600 A / 2500 A / 3150 A
More
23924
000AD
extension shaft, 300 mm long
for: S32 630 A - 3150 A
More
33381
000
extension shaft, 550 mm long
LTS-800, LTS-F 630
for: LTS-800, LTS-F630
More

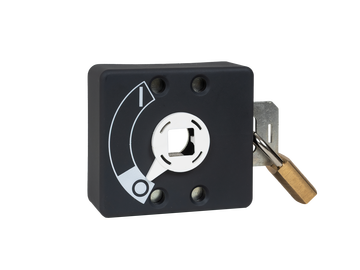

23956
000AD
CAPUS®Panel
locking device for direct drive
for: S32-3, S32-4, S32-5
NEW
More
