switch-disconnector 3-pole (23009)

The picture may show a similar product.

Description

Part No.: 23009000AD

CAPUS®Panel

switch-disconnector 3-pole

screw M12, graphite-grey handle

2500 A

for mounting plate

S32-2500/3

NEW

System

Panel

Product group 14
Subgroup 18
pack size 1
EAN 4021267230098
ECLASS 6.1 27371403
ECLASS 7.1 27371403
ETIM 4.0 EC000216
ETIM 5.0 EC000216

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Approvals

CCC

type number: CP-S32-2500/3P

Technical data

size: 5
Details IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Electrical data IEC
rated current (IEC): 2500 A
rated voltage (IEC) AC: 500 V
rated isolation voltage Ui AC: 1000 V
rated surge voltage Uimp : 12 kV
rated short-time withstand current Icw (1.0 s) max.: 50 kA
rated making capacity: 110 kA

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 240,0 W.

(The power dissipation at full load would be 375,0 W.)

Gebrauchskategorien siehe Datenblatt (unter Downloads)
Mechanical data
W x H x D: 385 x 450 x 248
weight: 2850,0 kg/100
poles: 3-pole
Mounting: for mounting plate

all poles switched at the same time

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| Mounting instructions

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Dimensioned drawing  #2

| Data sheet

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Accessories

23903000AD
door coupling rotary drive
graphite grey, without handle
without door interlock
for: S32 630 A / 1000 A / 1250 A / 1600 A / 2500 A / 3150 A
NEW
More

23906000AD
door coupling rotary drive
graphite grey, without handle
with door interlock, for padlocks
for: S32 630 A / 1000 A / 1250 A / 1600 A / 2500 A / 3150 A
NEW
More

23909000AD
door coupling rotary drive
graphite grey, without handle
with door interlock, for padlocks
for: S32 630 A / 1000 A / 1250 A / 1600 A / 2500 A / 3150 A
NEW
More

23914000AD
door coupling rotary drive
yellow-red, with handle
with door interlock, for padlocks
for: S32 2500 A / 3150 A
NEW
More

23919000AD
connection space cover, top / bottom attachable
for covering all terminals at one side of the switch, transparent
für 3P, 3P+N, 4P
for: S32 2500 A / 3150 A
NEW
More

23921000AD
pilot switch
1 n/c + 1 n/o, plug connectors 6.3 x 0.8
for: S32 250 A / 400 A / 630 A / 1000 A / 1250 A / 1600 A / 2500 A / 3150 A
NEW
More

23924000AD
extension shaft, 300 mm long
for: S32 630 A - 3150 A
NEW
More

33381000
extension shaft, 550 mm long
LTS-800, LTS-F 630
for: LTS-800, LTS-F630
More

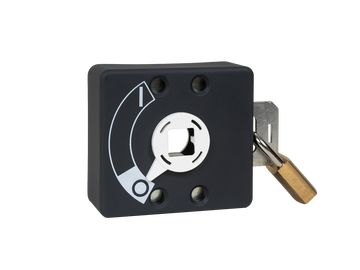

23956000AD
CAPUS®Panel
locking device for direct drive
for: S32-3, S32-4, S32-5
NEW
More
