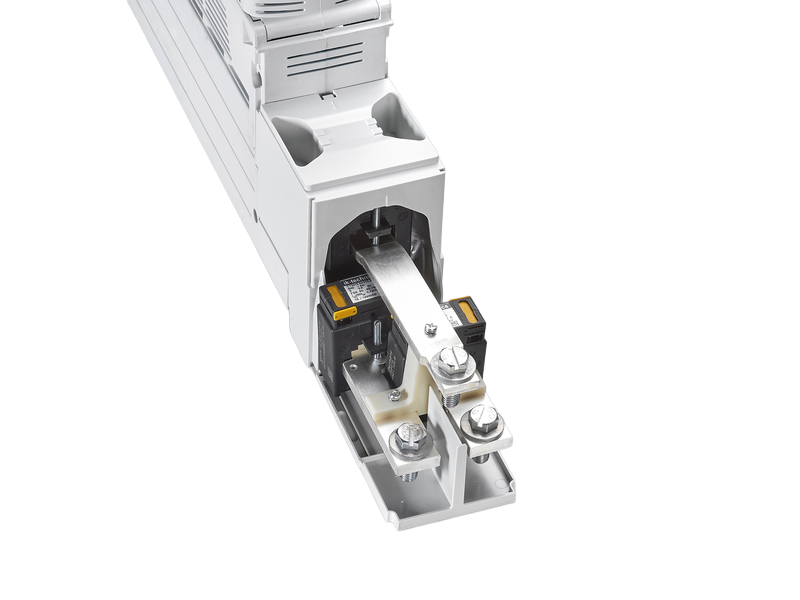

universal current transformer module (33762)

The picture may show a similar product.

Description

Part No.: 33762000A

universal current transformer module

for mounting in the connection compartment

size 1 - 3

System

185Power

Product group 18
Subgroup 70
pack size 1
EAN 4021267337629
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Quadron®185Power Speed:
- max. 600 A
- increase of power dissipation by 30%

Quadron®185Power, connection bottom:
- max. 630 A
- increase of power dissipation by 35%

Crito®185Power connection rail, connection bottom:
- max. 750 A
- increase of power dissipation by 28%
Mechanical data
weight: 170.0 kg/100
