universal current transformer module

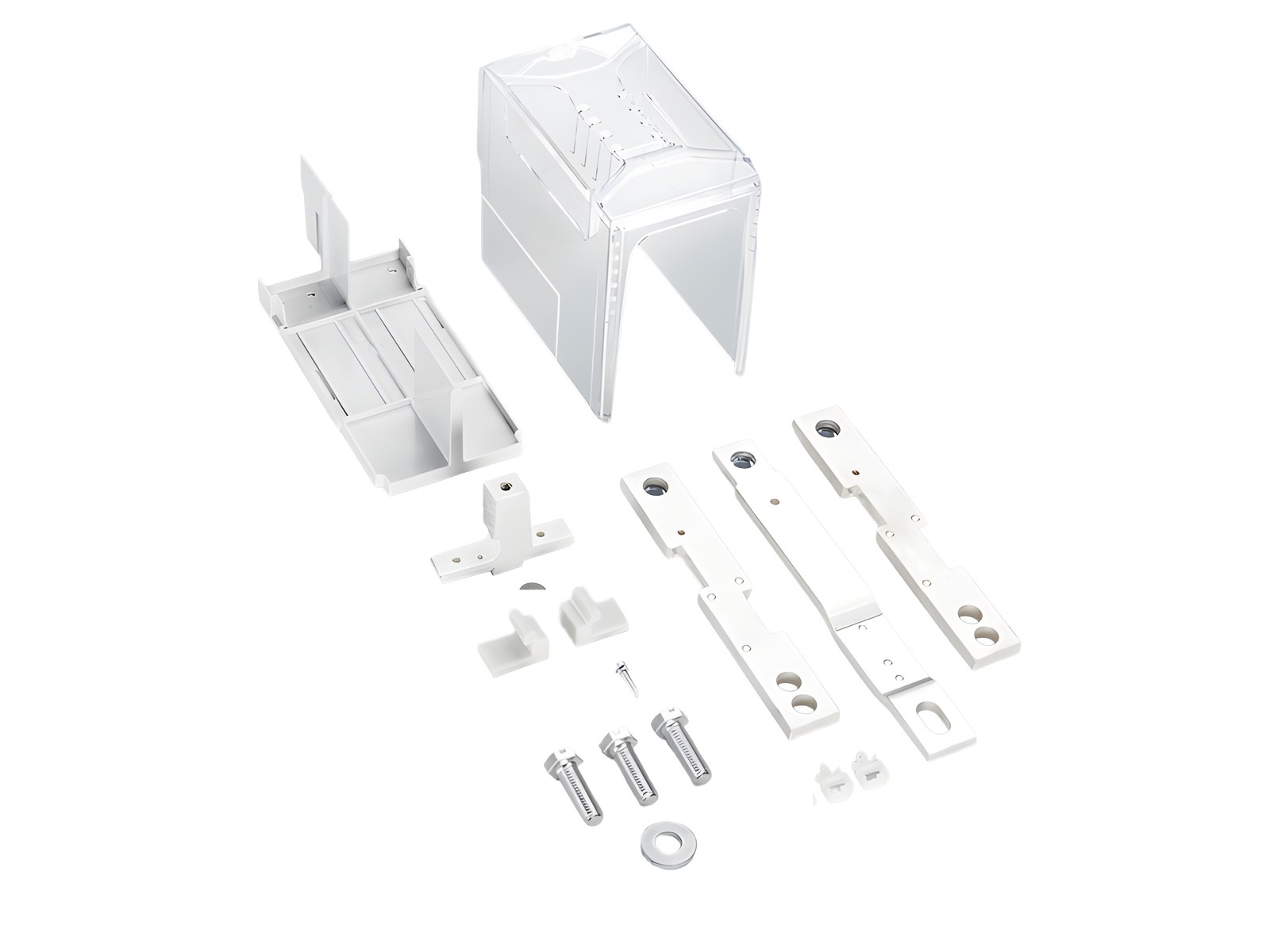

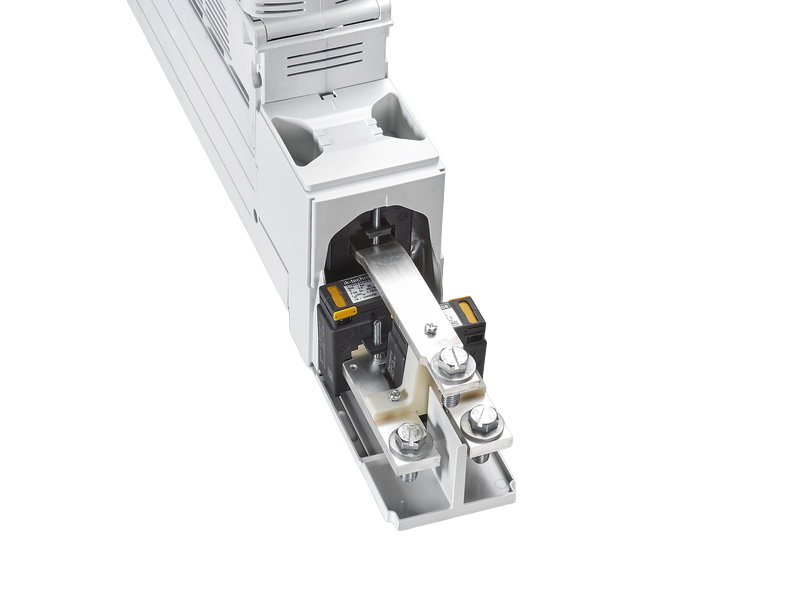

The picture may show a similar product.

Description

Part No.: 33762 000A

universal current transformer module

for mounting in the connection compartment

size 1 - 3

System

185Power

Product group 18
Subgroup 70
pack size 1
EAN 4021267337629
ECLASS 14.0 27142190
ETIM 5.0 EC002498
ETIM 8.0 EC002498
ETIM 10.0 EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

EAC Type: AC-A

Technical data

Details IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Quadron®185Power Speed:
- max. 600 A
- increase of power dissipation by 30%

Quadron®185Power, connection bottom:
- max. 630 A
- increase of power dissipation by 35%

Crito®185Power connection rail, connection bottom:
- max. 750 A
- increase of power dissipation by 28%
Mechanical data
weight: 170.0 kg/100
Material properties
halogen-free: Yes

Links (Prices, CAD data)

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD data WSCAD

Downloads

| General technical information

| Mounting instructions

| CAD model 3D PDF

| CAD model 3D STP

| Dimensioned drawing

| Dimensioned drawing  #2

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - GAEB90 (in German) (*.d81)

Accessories

current transformers class 0.5

Usage

https://pim.woehner.de/EN/US/1000183718
