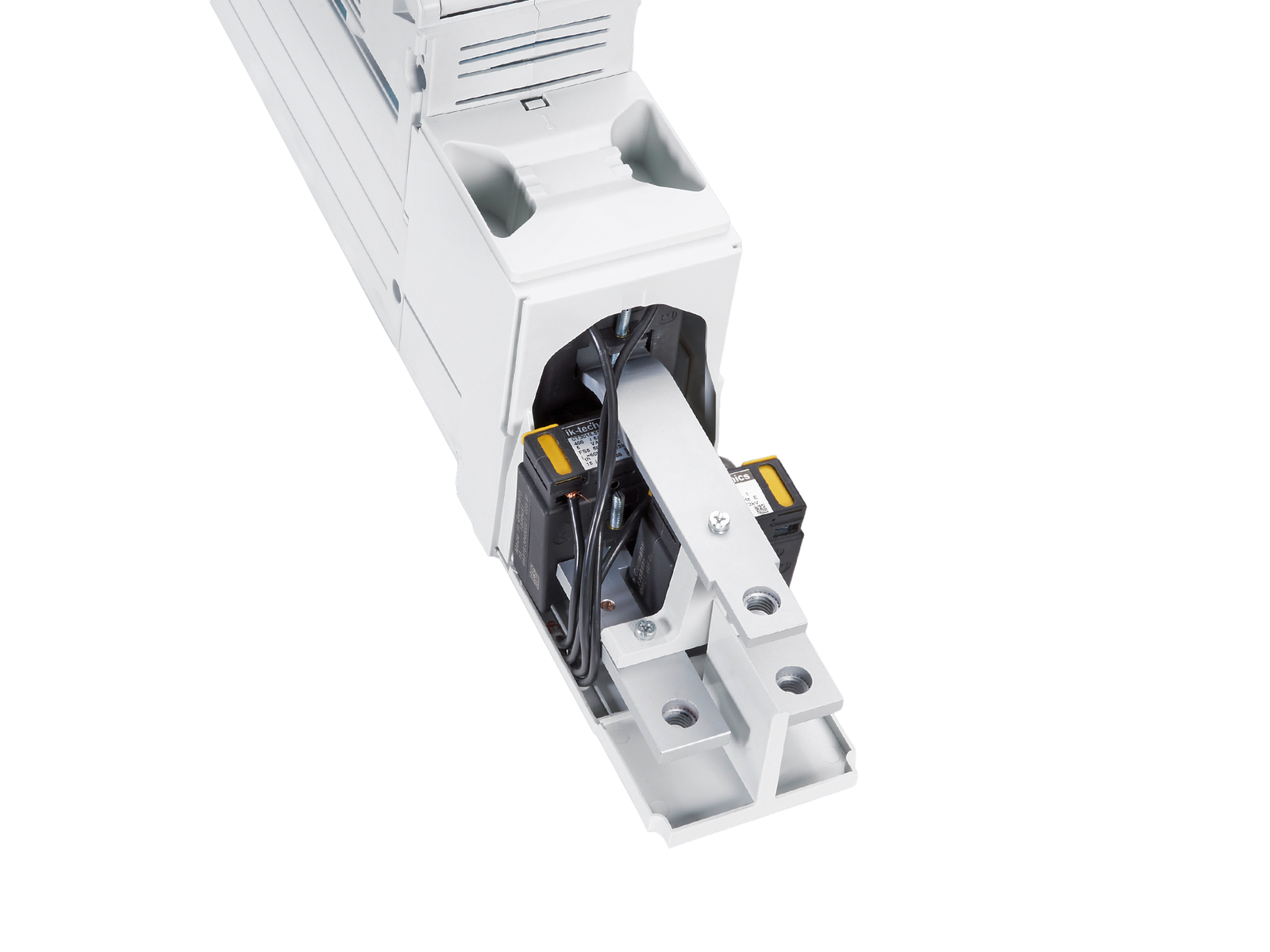

universal current transformer module (33762)

The picture may show a similar product.

Description

Part No.: 33762000A

universal current transformer module

for mounting in the connection compartment

size 1 - 3

System

185Power

Product group	18
Subgroup	70

pack size	1
EAN	4021267337629

ECLASS 6.1	27142190
ECLASS 7.1	27142190
ETIM 4.0	EC002498
ETIM 5.0	EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only

Quadron®185Power Speed:
- max. 600 A
- increase of power dissipation by 30%

Quadron®185Power, connection bottom:
- max. 630 A
- increase of power dissipation by 35%

Crito®185Power connection rail, connection bottom:
- max. 750 A
- increase of power dissipation by 28%

Mechanical data
weight:	170.0 kg/100

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| Mounting instructions

| CAD model 3D PDF

| CAD model 3D STP

| Dimensioned drawing

| Dimensioned drawing #2

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

| Text for specification - GAEB90 (in German) (*.d81)

Accessories

33787000
current transformer 600 A / 5 A, with decl. of conformity
5 VA / class 0.5
size 1 - 3
phase-out product
