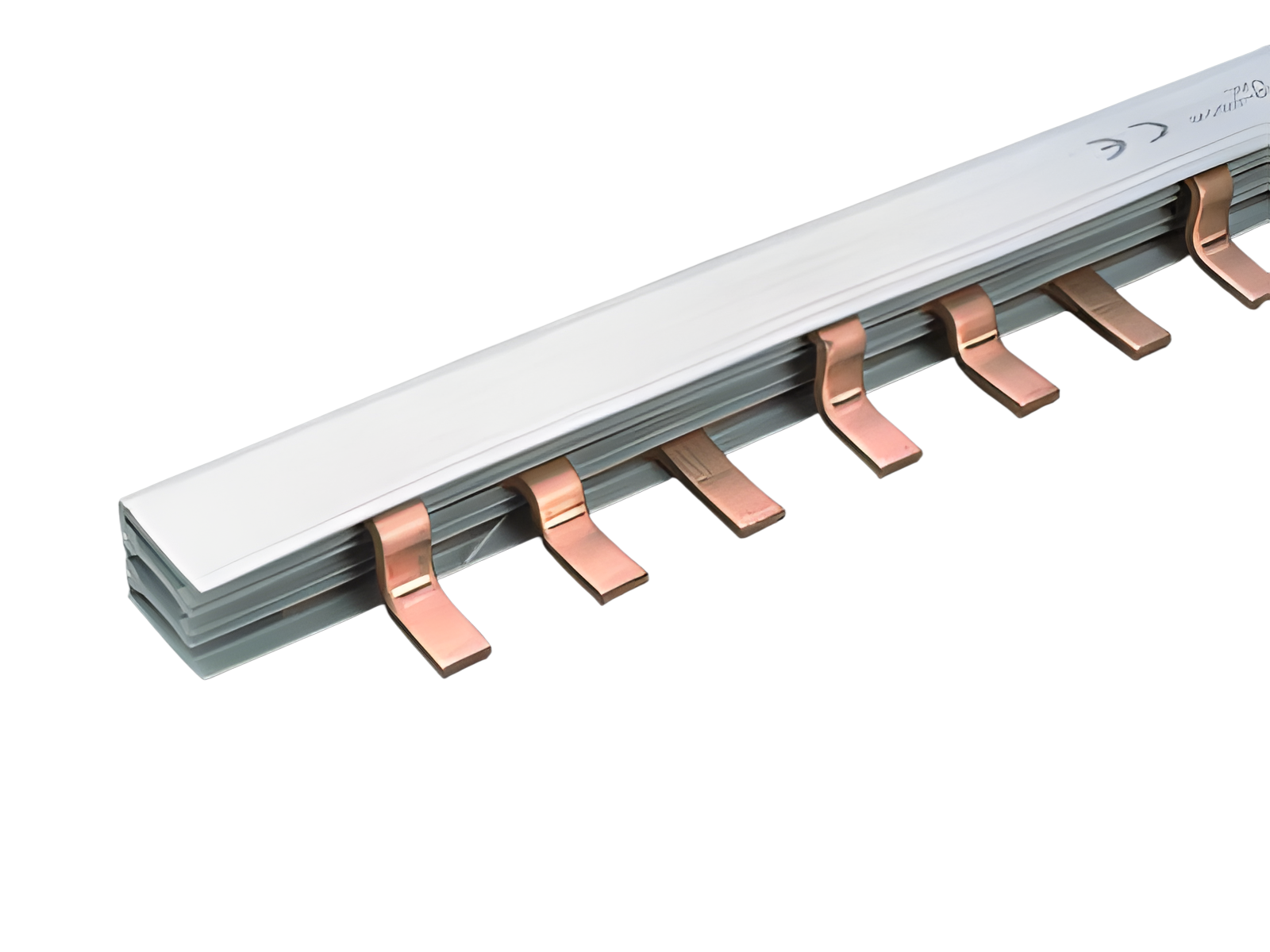

comb-type busbar, 3-pole, bridge type, pitch 27 mm (31056)

The picture may show a similar product.

Description

Part No.: 31056000A

comb-type busbar, 3-pole, bridge type, pitch 27 mm

130 A, 1 m long

35 mm²

Product group 06
Subgroup 95
pack size 4
EAN 4021267310561
ECLASS 6.1 27371306
ECLASS 7.1 27371306
ETIM 4.0 EC000215
ETIM 5.0 EC000215

Approvals

Standards

IEC 61439-1:2020

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
Electrical data IEC
Rated current (IEC): 130 A
rated voltage (IEC) AC: 400 V
rated surge voltage Uimp : 4 kV

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 2.2 W.

(The power dissipation at full load would be 3.4 W.)

Supplementary data IEC

The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.
current carrying capacity for centre feed: 220 A
Mechanical data
W x H x D: 1000 x 30 x 15
weight: 125.0 kg/100
cross-section: 35 mm²
