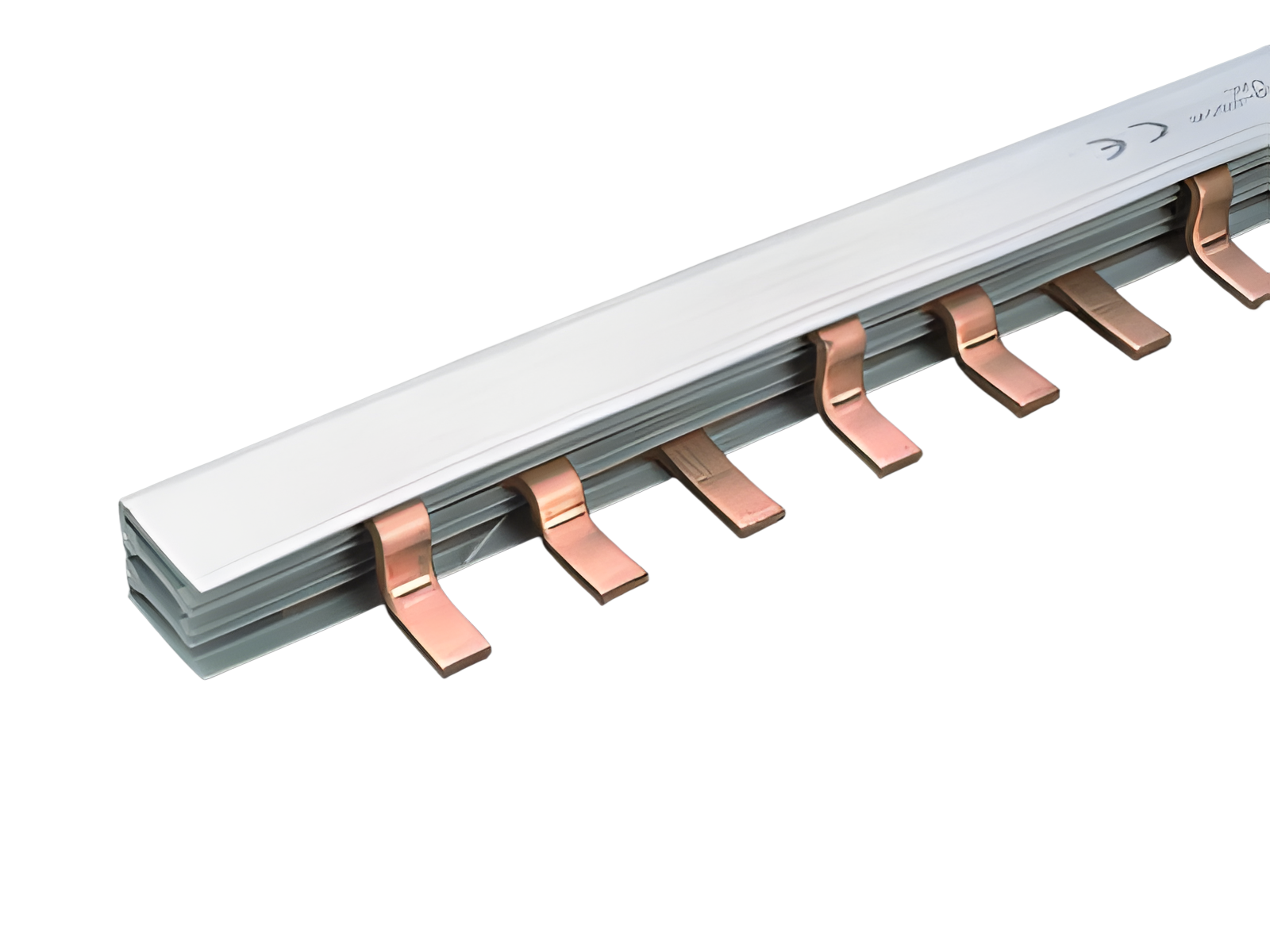

The picture may show a similar product.
Part No.: 31056 000A
comb-type busbar, 3-pole, bridge type, pitch 27 mm
130 A, 1 m long
35 mm²
| Product group | 06 |
| Subgroup | 95 |
| pack size | 4 |
| EAN | 4021267310561 |
| ECLASS 6.1 | 27371306 |
| ECLASS 7.1 | 27371306 |
| ETIM 4.0 | EC000215 |
| ETIM 5.0 | EC000215 |
Standards
IEC 61439-1:2020
CCC approval: no certification required
| Details IEC | |
| Standards | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| rated current (IEC): | 130 A |
| rated voltage (IEC) AC: | 400 V |
| rated surge voltage Uimp : | 4 kV |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 2.2 W.
(The power dissipation at full load would be 3.4 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| current carrying capacity for centre feed: | 220 A |
| Mechanical data | |
| W x H x D: | 1000 x 30 x 15 |
| weight: | 125.0 kg/100 |
| cross-section: | 35 mm² |
