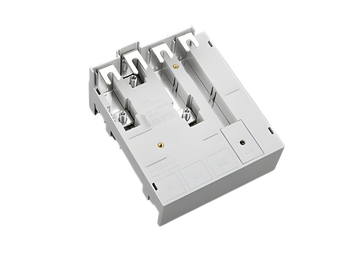

32640000

EQUES^®30Compact
busbar adapter 160 A, 4-pole
141 x 160
connection to the system top
for: Schneider Electric INS100, INS125, INS160
for busbars: 12 x 5
