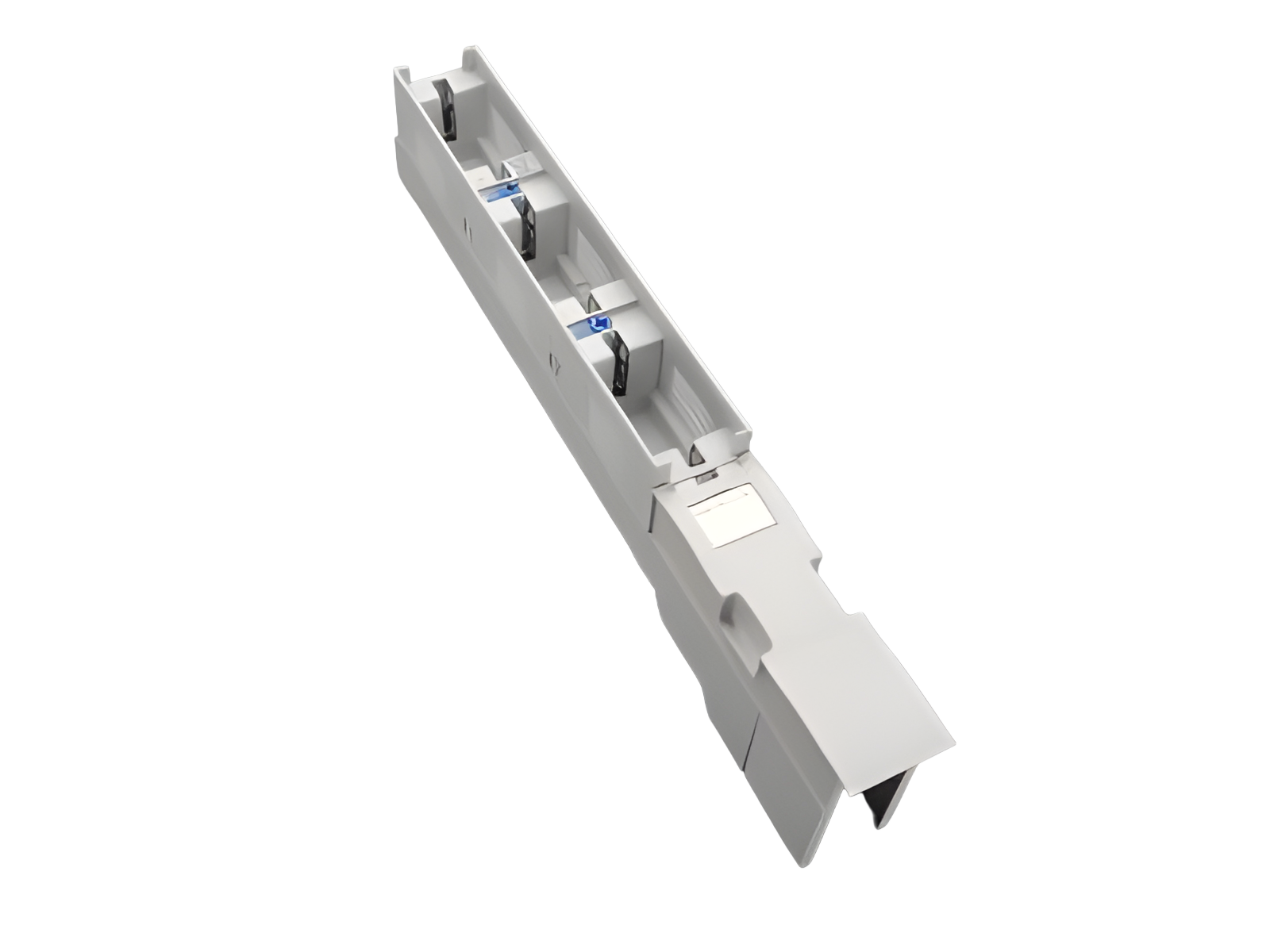

NH in-line fuse base, 160 A (33384)

The picture may show a similar product.

Description

Part No.: 33384 000

QUADRON®100Energy

NH in-line fuse base, 160 A

wedge terminal 70 mm²

size 00

for busbars 30, 40, 50, 60 x 10

System

100Energy

Advantages of the product

Undrilled mounting possible with terminal clamp

Product group 12
Subgroup 31
pack size 1
EAN 4021267333843
ECLASS 6.1 27142106
ECLASS 7.1 27142106
ETIM 4.0 EC001046
ETIM 5.0 EC001046

Approvals

Standards

IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016

Technical data

for fuse links size: NH 000, NH 00
fuse links acc. to standard: IEC / HD 60269-2
Details IEC
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016
Electrical data IEC
rated current (IEC): 160 A
rated voltage (IEC) AC: 690 V
rated surge voltage Uimp : 6 kV
short-circuit strength when protected by fuses: 50 kA

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 11.2 W.

(The power dissipation at full load would be 17.5 W.)

Supplementary data IEC

The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.
max. permitted voltage (IEC) AC: 800 V
Mechanical data
W x H x D: 50 x 455 x 80
weight: 99.5 kg/100
for busbars: 30, 40, 50, 60 x 10
Terminal points


wedge clamp terminal for Cu an Al:
stranded round 16 - 70 mm²,
stranded sectored 16 - 70 mm²,
flexible with wire-end ferrules 16 - 70 mm²

(flexible cables of maximum cross-section may not fit when using wire-end ferrule)

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Accessories

accessories for mounting

33238 000
terminal clamp
size 00
for: 33235
More

connection accessories

03727 000
clamp connector
1.5 - 70 mm²
size 00
More

30894 000
M8 screw connector
with spring washer
size 00
More

covers

33113 000
lateral cover support
for front covers
size 00 - 3
More

33280 000
connection cover
size 00
for: 33234, 33235
More

accessories for fuses

03502 000
NH fuse extractor handle
without sleeve
size 000 - 3
More
