Part No.: 33384000
QUADRON®100Energy

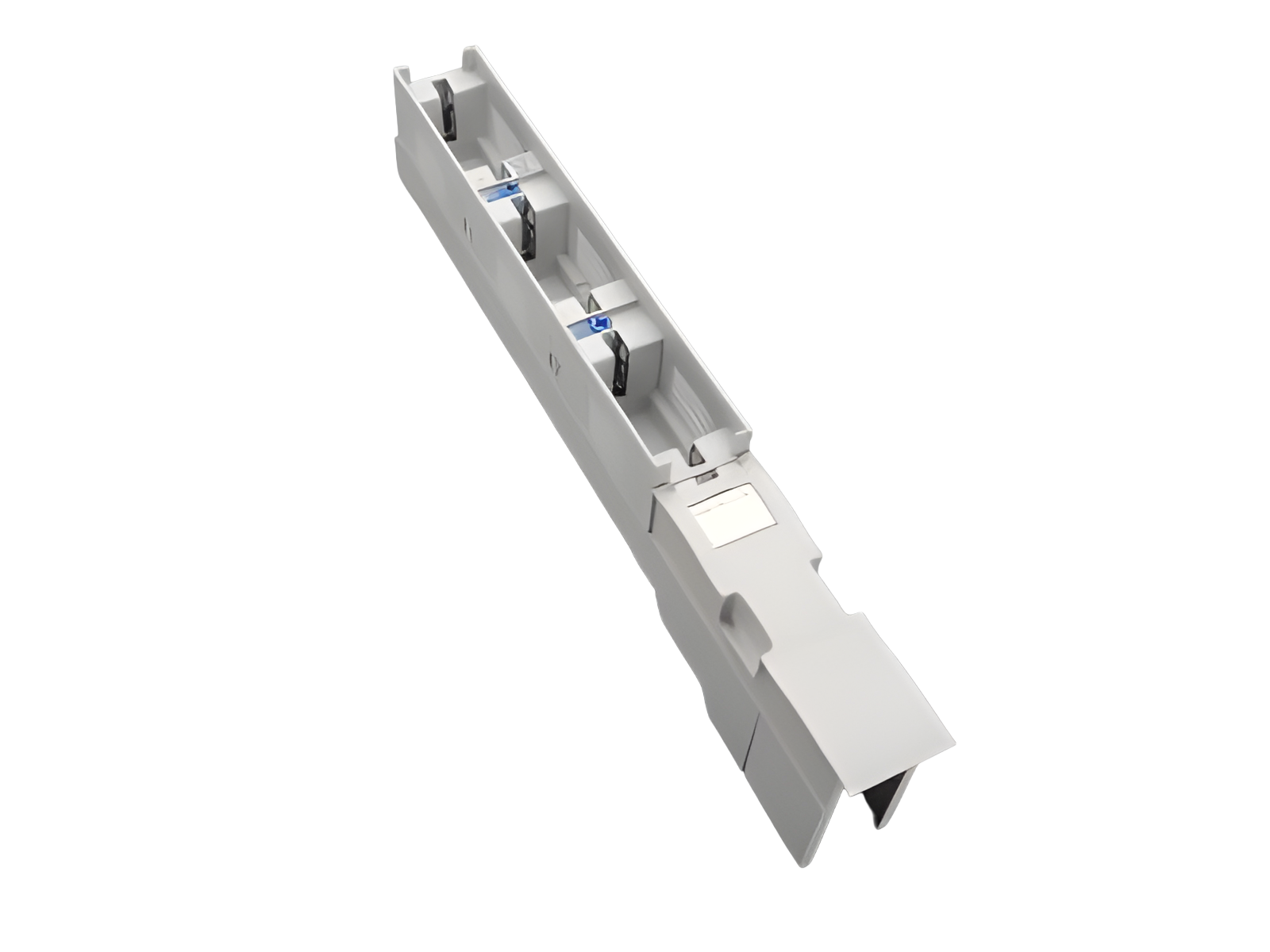

NH in-line fuse base, 160 A
wedge terminal 70 mm²
size 00
for busbars 30, 40, 50, 60 x 10
System
100Energy
Advantages of the product
Undrilled mounting possible with terminal clamp
| Product group | 12 |
| Subgroup | 31 |
| pack size | 1 |
| EAN | 4021267333843 |
| ECLASS 6.1 | 27142106 |
| ECLASS 7.1 | 27142106 |
| ETIM 4.0 | EC001046 |
| ETIM 5.0 | EC001046 |
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016
| for fuse links size: | NH 000, NH 00 |
| fuse links acc. to standard: | IEC / HD 60269-2 |
| Details IEC | |
| Standards | |
|
IEC 60269-1:2006 + A1:2009 + A2:2014 IEC 60269-2:2013 + A1:2016 |
| Electrical data IEC | |
| Rated current (IEC): | 160 A |
| rated voltage (IEC) AC: | 690 V |
| rated surge voltage Uimp : | 6 kV |
| short-circuit strength when protected by fuses: | 50 kA |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 11.2 W.
(The power dissipation at full load would be 17.5 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| max. permitted voltage (IEC) AC: | 800 V |
| Mechanical data | |
| W x H x D: | 50 x 455 x 80 |
| weight: | 99.5 kg/100 |
| for busbars: | 30, 40, 50, 60 x 10 |
| Terminal points | |
|
wedge clamp terminal for Cu an Al: |
|
