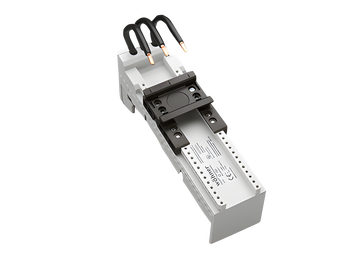

32590000

EQUES^®30Compact
busbar adapter 32 A
1 adjustable mounting rail
45 x 160, with leads AWG 10 (6 mm²)
for busbars: 12 x 5, 10
More

32693000A

EQUES^®30Compact
busbar adapter 25 A
for direct starter Siemens S00 with spring terminal connection
45 x 160, with leads AWG 12 (4 mm²)
for busbars: 12 x 5, 10
More

32694000A

EQUES^®30Compact
busbar adapter 30 A
for direct starter Siemens S0 with spring terminal connection
45 x 160, with leads AWG 10 (6 mm²)
for busbars: 12 x 5, 10
More

36001000D

EQUES^®30Compact
busbar adapter 16 A
1 fixed mounting rail, with fuse-carrier 10x38 / Class CC
22.5 x 160, with removable upper section and leads AWG 14 (2.5 mm²)
for busbars: 12 x 5, 10
More
