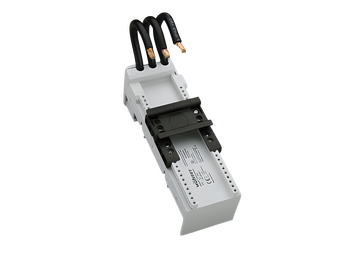

32591000

EQUES^®30Compact
busbar adapter 63 A
1 adjustable mounting rail
54 x 160, with leads AWG 8 (10 mm²)
for busbars: 12 x 5, 10
