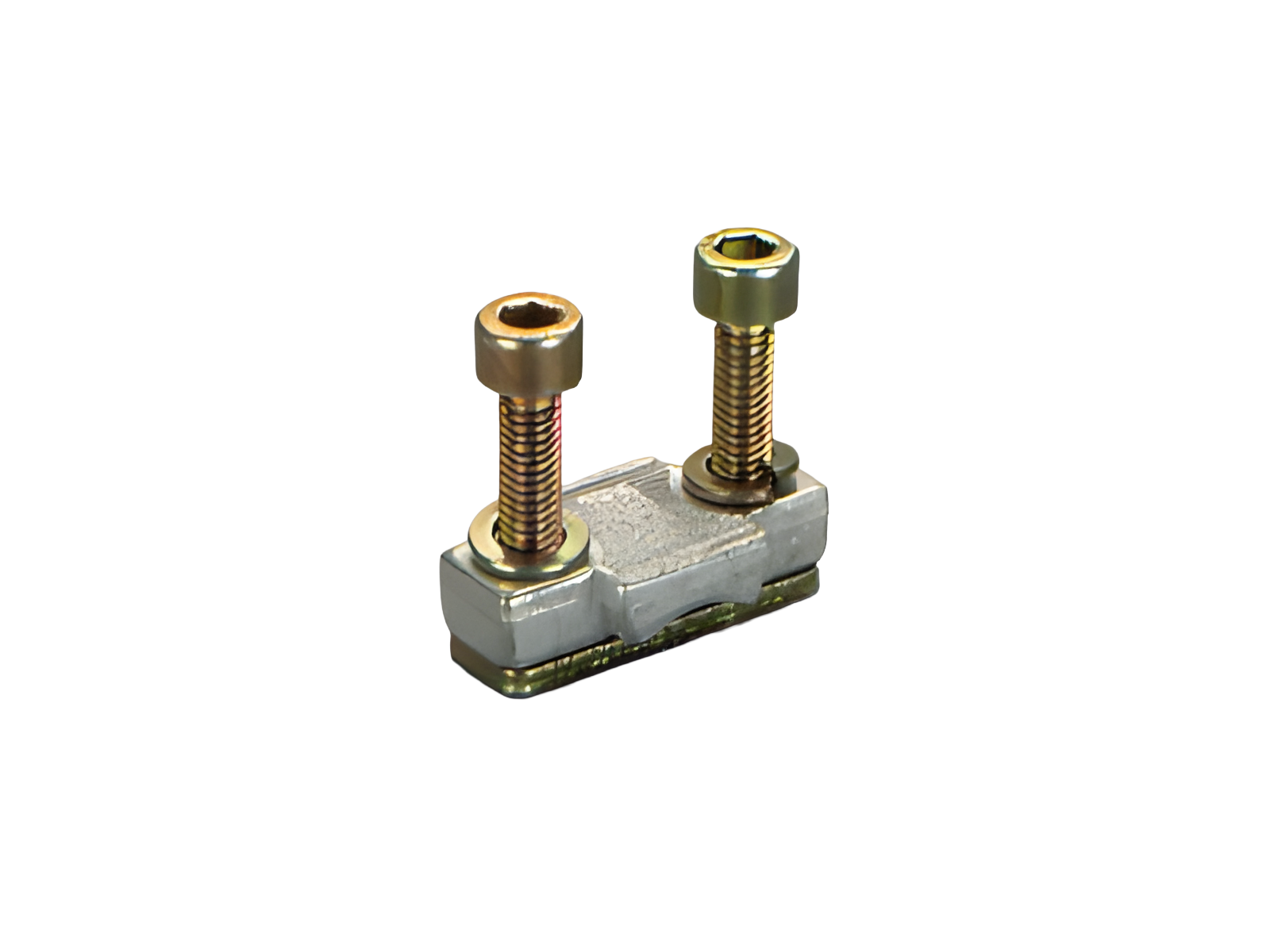

clamp connector for Cu cables (33163)

The picture may show a similar product.

Description

Part No.: 33163000

clamp connector for Cu cables

70 - 150 mm²

for QCB-NH1, QCS-NH1, LTS-F 250, LTS 400

System

60Classic

Product group	09
Subgroup	51

pack size	1
EAN	4021267331634

ECLASS 6.1	27142190
ECLASS 7.1	27142190
ETIM 4.0	EC002498
ETIM 5.0	EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only

Electrical data

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0.0 W.

(The power dissipation at full load would be 0.0 W.)

Mechanical data
weight:	6.3 kg/100

Cu 70-150mm² s(r), f, f+AE, lam. Cu 18 x (2-14)mm

Terminal points
Not suitable for aluminium cables !

18 x 10

Application notes

Not suitable for aluminium cables !

short-circuit withstandability:	determined by main product

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| Mounting instructions

| CAD model 3D PDF

| CAD model 3D STP

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

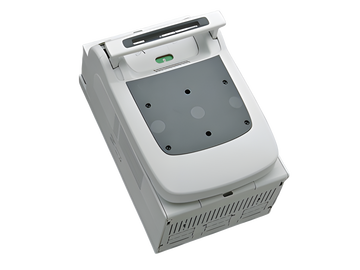

33552000
QUADRON^®Panel Speed
switch-disconnector 3-pole
screw M10
320 A
More

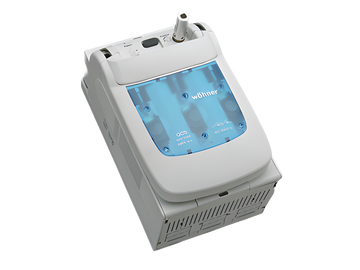

33515000
QUADRON^®Panel Speed
switch disconnector with fuses, 3-pole
screw M10, for door coupling rotary handle
size 1
double-breaking
More

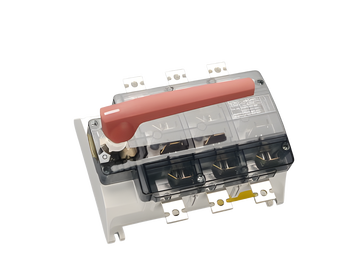

33356000
CAPUS^®Panel
switch-disconnector 3-pole
screw M10, red handle
400 A
More

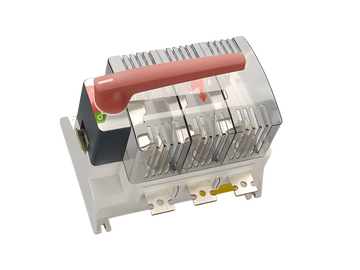

33360000
CAPUS^®Panel
switch disconnector with fuses, 3-pole
screw M10, red handle
size 1
More

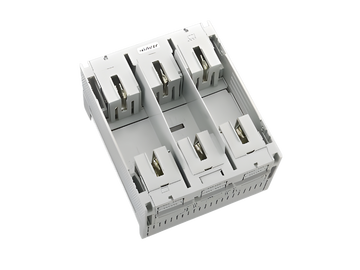

03301000
QUADRON^®60Classic
NH fuse base 250 A
screw M10
size 1 / 3P
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

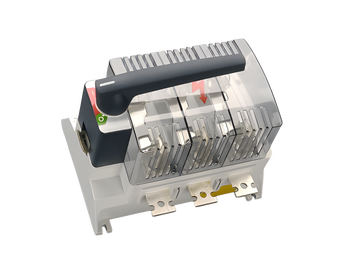

33338000
CAPUS^®Panel
switch disconnector with fuses, 3-pole
screw M10, graphite-grey handle
size 1
More

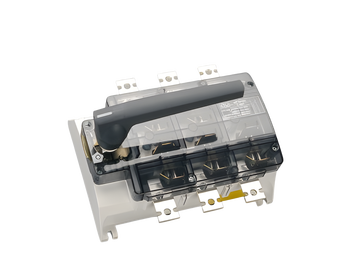

33334000
CAPUS^®Panel
switch-disconnector 3-pole
screw M10, graphite-grey handle
400 A
More

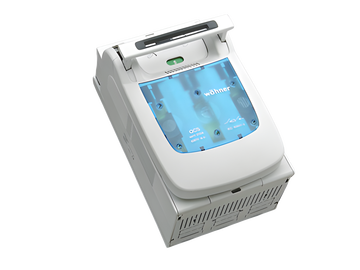

33512000
QUADRON^®Panel Speed
switch disconnector with fuses, 3-pole
screw M10
size 1
double-breaking
More

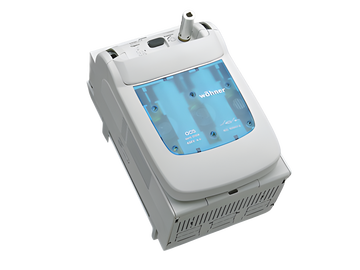

33514000
QUADRON^®60Classic Speed
switch disconnector with fuses, 3-pole
screw M10, connection top, for door coupling rotary handle
size 1
double-breaking
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

03300000
QUADRON^®60Classic
NH fuse base 250 A
box terminal
size 1 / 3P
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

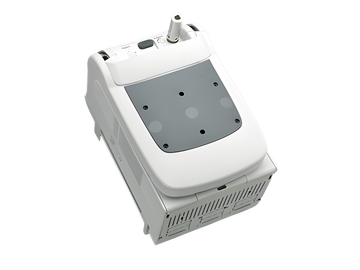

33553000
QUADRON^®60Classic Speed
switch-disconnector 3-pole
screw M10, connection bottom, for door coupling rotary handle
320 A
double-breaking
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

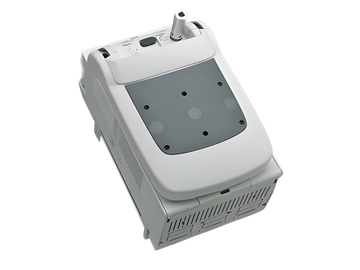

33554000
QUADRON^®60Classic Speed
switch-disconnector 3-pole
screw M10, connection top, for door coupling rotary handle
320 A
double-breaking
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

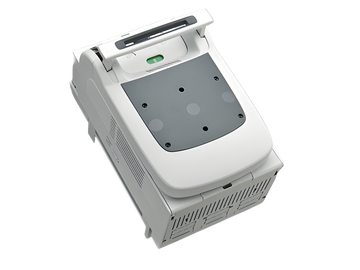

33551000
QUADRON^®60Classic Speed
switch-disconnector 3-pole
screw M10, connection top
320 A
double-breaking
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

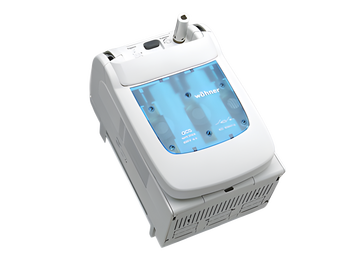

33513000
QUADRON^®60Classic Speed
switch disconnector with fuses, 3-pole
screw M10, connection bottom, for door coupling rotary handle
size 1
double-breaking
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

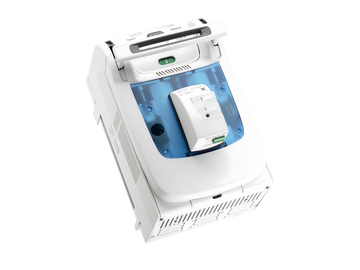

33516000
QUADRON^®60Classic Speed
switch disconnector with fuses, 3-pole
screw M10, connection bottom, with electronic fuse monitoring
size 1
double-breaking
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33550000
QUADRON^®60Classic Speed
switch-disconnector 3-pole
screw M10, connection bottom
320 A
double-breaking
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33511000
QUADRON^®60Classic Speed
switch disconnector with fuses, 3-pole
screw M10, connection top
size 1
double-breaking
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33510000
QUADRON^®60Classic Speed
switch disconnector with fuses, 3-pole
screw M10, connection bottom
size 1
double-breaking
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33393000
QUADRON^®Panel
NH fuse switch-discon. size 1, 250 A, panel mounting
box terminal
More

33330000
QUADRON^®Panel
NH fuse switch-discon. size 1, 250 A, panel mounting
screw M10
with electronic fuse monitoring
More

33600000
QUADRON^®60Classic
NH fuse switch-disconnector size 1, 250 A
box terminal
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33149000
QUADRON^®Panel
NH fuse switch-discon. size 1, 250 A, panel mounting
screw M10
with electromechanical fuse monitoring
More

33201000
QUADRON^®Panel
NH fuse switch-discon. size 1, 250 A, panel mounting
screw M10
More

33160000
QUADRON^®60Classic
NH fuse switch-disconnector size 1, 250 A
screw M10
with electromechanical fuse monitoring
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33325000
QUADRON^®60Classic
NH fuse switch-disconnector size 1, 250 A
screw M10
with electronic fuse monitoring
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33601000
QUADRON^®60Classic
NH fuse switch-disconnector size 1, 250 A
screw M10
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

https://pim.woehner.de/EN/ES/1000047375

Find your contact

to the contact site

Wöhner GmbH & Co. KG
Elektrotechnische Systeme
Mönchrödener Str. 10
96472 Rödental

Order hotline (Germany)
+49 9563 751 161
order@woehner.de

Technical hotline (Germany)
+49 9563 751 260
support@woehner.com
