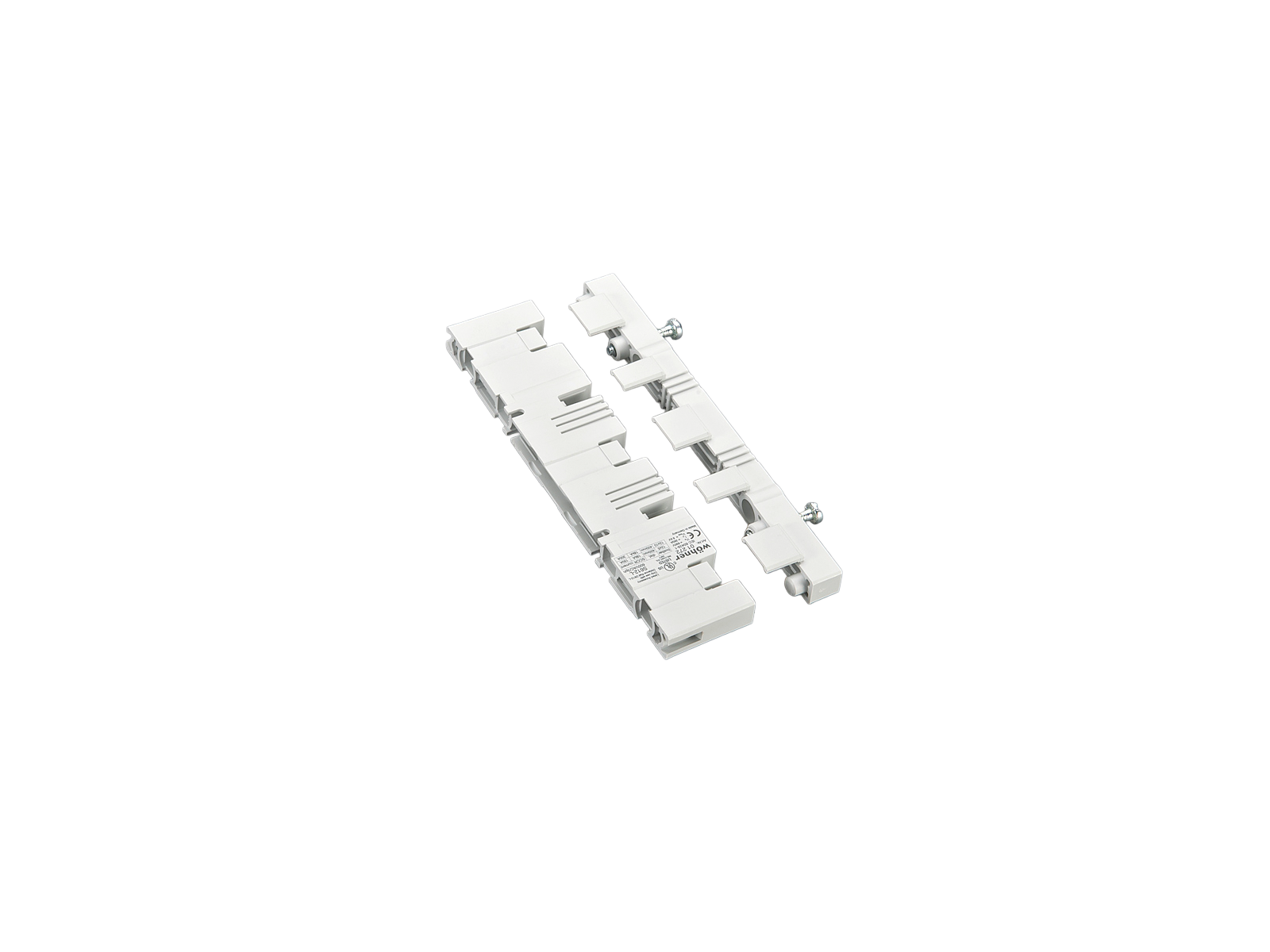

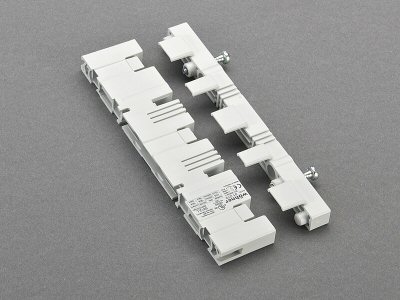

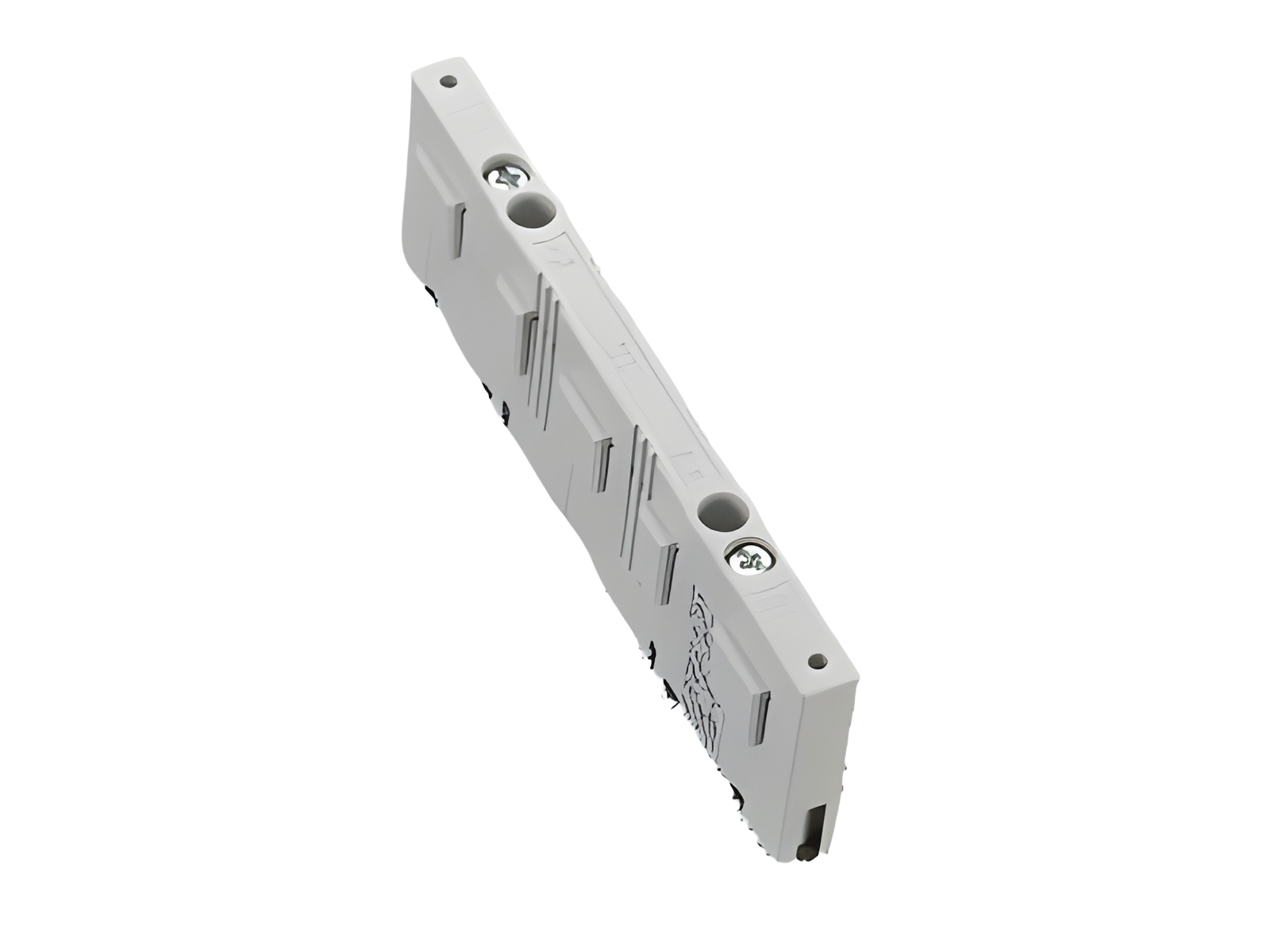

busbar support 3 phases + N + E, with end cover (01272)

The picture may show a similar product.

Description

Part No.: 01272000

busbar support 3 phases + N + E, with end cover

for busbar 3-pole 12 x 5 and 12 x 10

for busbars 5-pole 12 x 5 and 12 x 10, N + PE 12 x 5

System

30Compact 3P, 30Compact 5P

Product group 06
Subgroup 09
pack size 10
EAN 4021267012724
ECLASS 6.1 27400607
ECLASS 7.1 27400607
ETIM 4.0 EC001166
ETIM 5.0 EC001166

Approvals

Standards

IEC 61439-1:2020

UL 508

Approvals

UL

for UL feeder circuits >250V

type number: S612-L

UL file: E123577, UL category (for USA): NMTR https://www.ul.com

UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
Electrical data IEC
rated voltage (IEC) AC: 690 V
rated frequency (IEC): 50 / 60 Hz
rated isolation voltage Ui AC: 800 V
rated surge voltage Uimp : 6 kV
rated peak withstand current  Ipk max.: 54 kA

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0.0 W.

(The power dissipation at full load would be 0.0 W.)

short-circuit capacity IEC / EN :
3-pole: Ipk max. = 54 kA (busbar 12x10, 2 busbar supports in 250 mm distance)
go to calculation for 3-pole system (IEC)

4- and 5-pole : Ipk = 32 kA (2 busbar supports in 250 mm distance)
go to calculation for 5-pole system (IEC)
Details UL
Standards
UL 508
for UL feeder circuits >250V
Electrical data UL
rated voltage (UL) AC: 600 V
rated frequency (UL): 50 / 60 Hz
SCCR unprotected max.: 18 kA
3 cycles (without OPD) @ 600 V AC
Mechanical data
W x H x D: 15 x 156 x 45
weight: 6.8 kg/100
poles: 3-pole

Application notes

Reference

Zur Einhaltung der erhöhten Luft- und Kriechstrecken nach UL 508A ist das Distanzstück 01 374 zu verwenden.

Drehmoment für die Schrauben des Schienenträgerdeckels Md = 3Nm

for UL feeder circuits >250V

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| Mounting instructions

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| Short-circuit diagram IEC

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Accessories

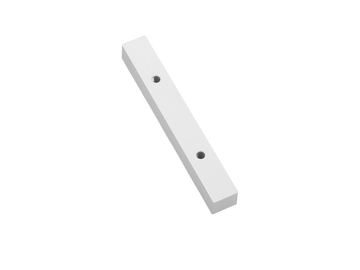

01374000A
spacer
suitable for 01272
for UL applications
More

01371000
base plate
700 x 160
More
