Part No.: 01272 000

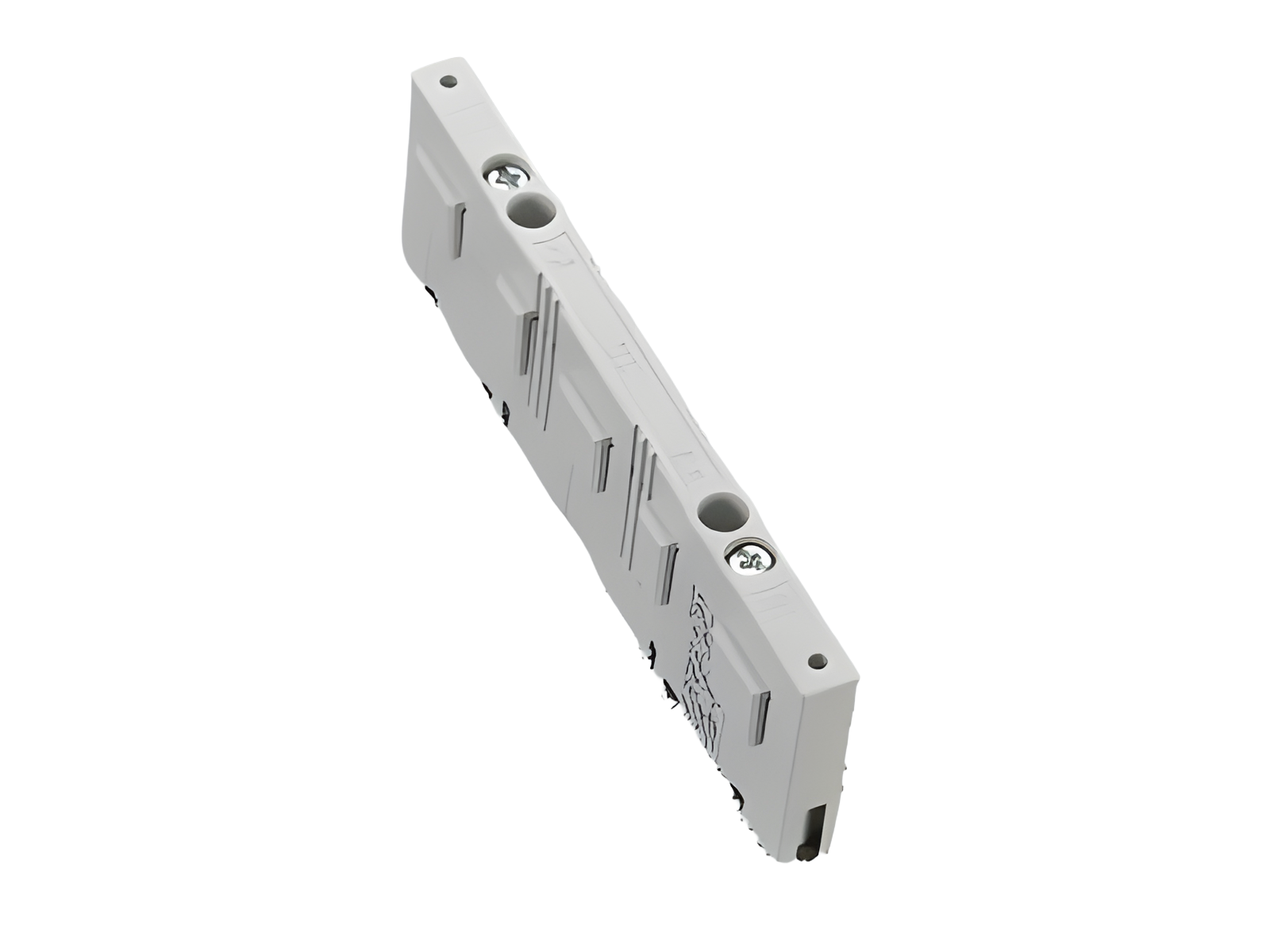

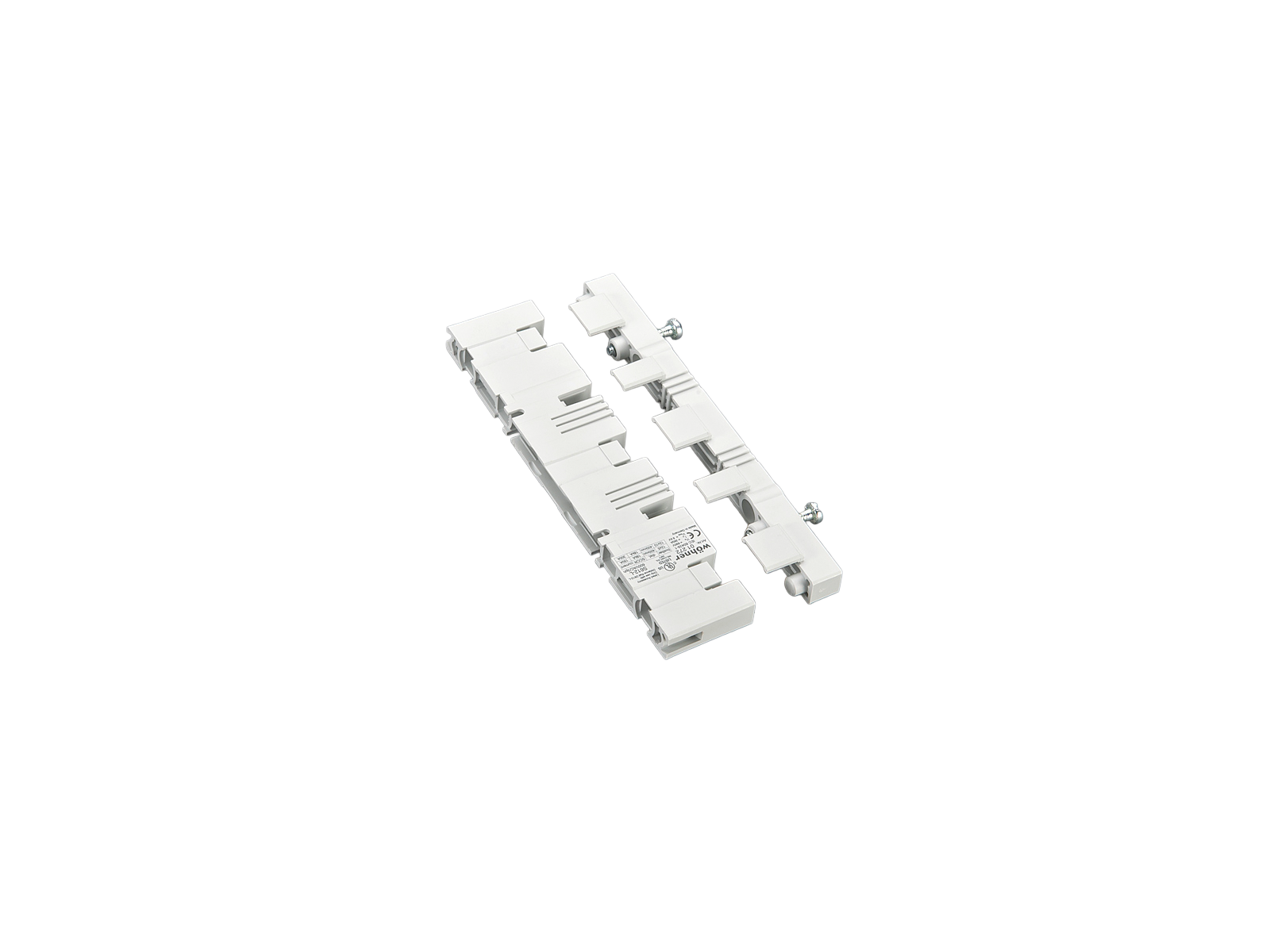

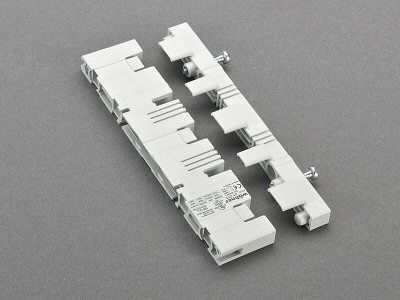

busbar support 3 phases + N + E, with end cover
for busbar 3-pole 12 x 5 and 12 x 10
for busbars 5-pole 12 x 5 and 12 x 10, N + PE 12 x 5
System
30Compact 3P, 30Compact 5P
| Product group | 06 |
| Subgroup | 09 |
| pack size | 10 |
| EAN | 4021267012724 |
| ECLASS 6.1 | 27400607 |
| ECLASS 7.1 | 27400607 |
| ETIM 4.0 | EC001166 |
| ETIM 5.0 | EC001166 |
Standards
IEC 61439-1:2020
UL 508
Approvals
UL
for UL feeder circuits >250V
type number: S612-L
UL file: E123577, UL category (for USA): NMTR https://www.ul.com
UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
CCC approval: no certification required
| Details IEC | |
| Standards | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| rated voltage (IEC) AC: | 690 V |
| rated frequency (IEC): | 50 / 60 Hz |
| rated isolation voltage Ui AC: | 800 V |
| rated surge voltage Uimp : | 6 kV |
| rated peak withstand current Ipk max.: | 54 kA |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0.0 W.
(The power dissipation at full load would be 0.0 W.)
| short-circuit capacity IEC / EN : 3-pole: Ipk max. = 54 kA (busbar 12x10, 2 busbar supports in 250 mm distance) go to calculation for 3-pole system (IEC) 4- and 5-pole : Ipk = 32 kA (2 busbar supports in 250 mm distance) go to calculation for 5-pole system (IEC) |
| Details UL | |
| Standards | |
| UL 508 |
| for UL feeder circuits >250V |
| Electrical data UL | |
| rated voltage (UL) AC: | 600 V |
| rated frequency (UL): | 50 / 60 Hz |
| SCCR unprotected max.: | 18 kA |
| 3 cycles (without OPD) @ 600 V AC |
| Mechanical data | |
| W x H x D: | 15 x 156 x 45 |
| weight: | 6.8 kg/100 |
| poles: | 3-pole |
|

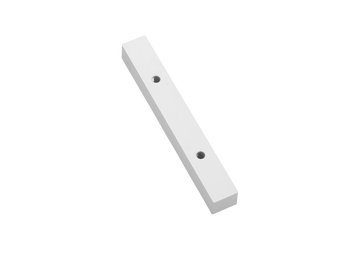

Zur Einhaltung der erhöhten Luft- und Kriechstrecken nach UL 508A ist das Distanzstück 01 374 zu verwenden. |
|
| for UL feeder circuits >250V |
