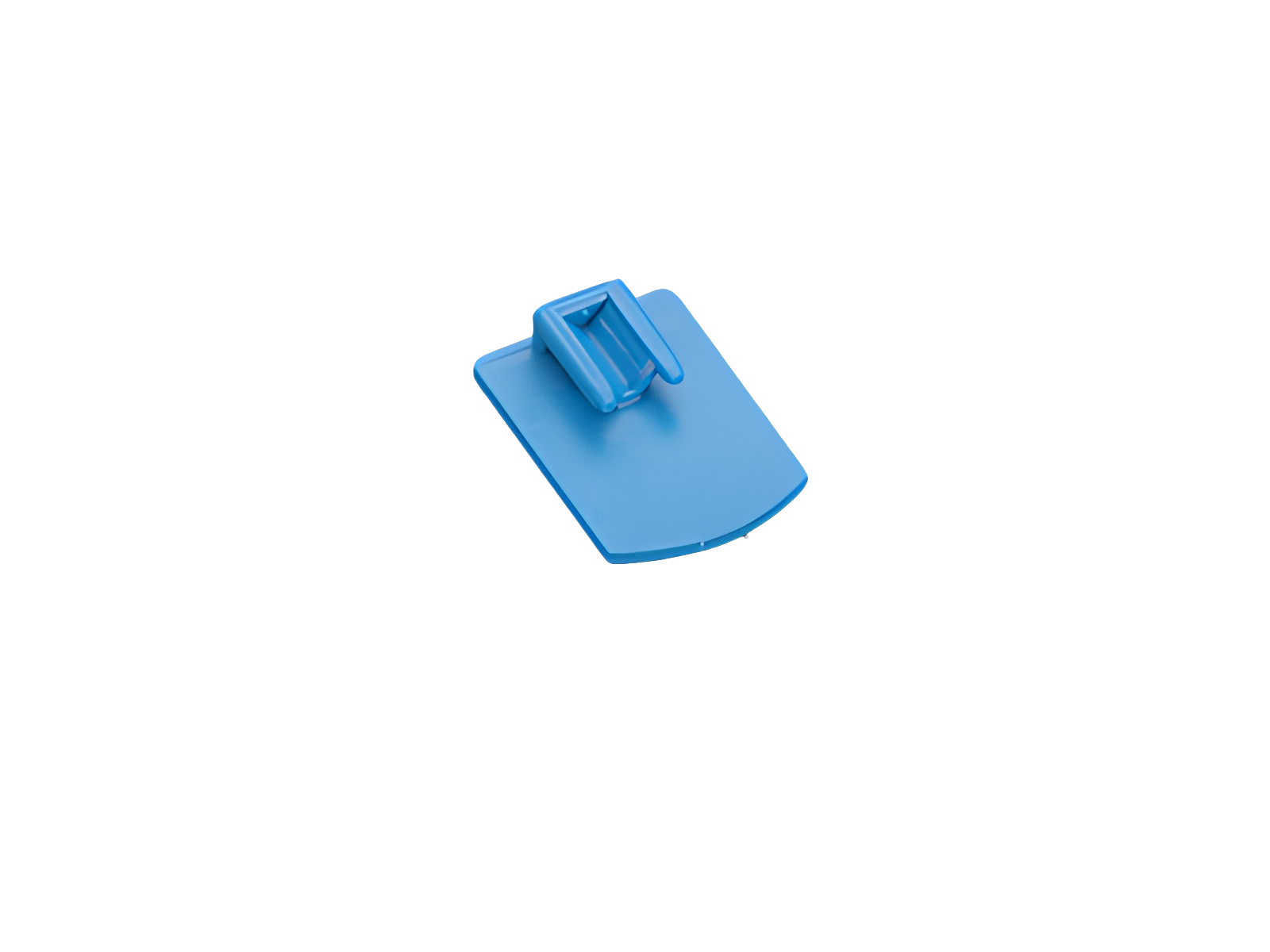

mounting rail end stop (32969)

The picture may show a similar product.

Description

Part No.: 32969 000

mounting rail end stop

System

60Classic

Product group 05
Subgroup 57
pack size 50
EAN 4021267329693
ECLASS 6.1 27370390
ECLASS 7.1 27370390
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 61439-1:2020

Approvals

for UL feeder circuits >250V

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
for UL feeder circuits >250V
Mechanical data
W x H x D: 1 x 10 x 15
weight: 0.1 kg/100

Application notes

not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

for UL feeder circuits >250V

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

32420 000
EQUES®60Classic
busbar component support
2 adjustable mounting rails
45 x 200, with removable upper section, without electrical connection
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32478 000
EQUES®60Classic
busbar component support
2 adjustable mounting rails
54 x 200, without electrical connection
