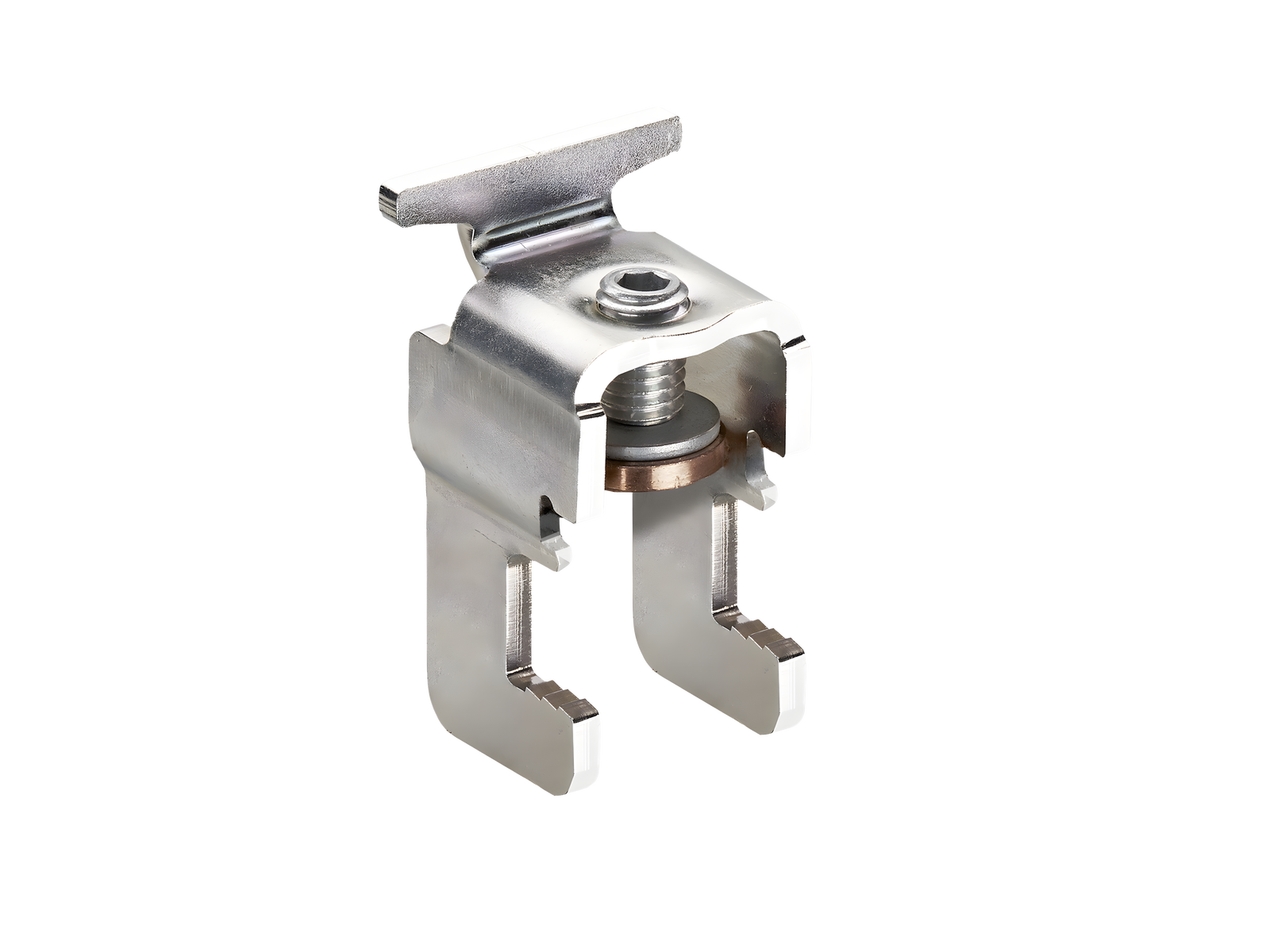

terminal clamp (33739)

The picture may show a similar product.

Description

Part No.: 33739000A

terminal clamp

for busbar systems without system covers

size 00

System

185Power

Product group 12
Subgroup 70
pack size 3
EAN 4021267337391
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Electrical data

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0.0 W.

(The power dissipation at full load would be 0.0 W.)

Mechanical data
weight: 14.0 kg/100

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| CAD model 3D PDF

| CAD model 3D STP

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

| Text for specification - GAEB90 (in German) (*.d81)

Usage

33720000A
QUADRON®185Power
in-line fuse switch-disconnector 160 A
Size 00, 3-pole switchable, with fuse monitoring
high version with screw M8
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33771000A
QUADRON®185Power
in-line fuse switch-disconnector 160 A
Size 00, 3-pole switchable, with fuse monitoring
high version with box terminal 70 mm²
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33715000A
QUADRON®185Power
in-line fuse switch-disconnector 160 A
Size 00, 1-pole switchable
high version with screw M8
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33772000A
QUADRON®185Power
in-line fuse switch-disconnector 160 A
Size 00, 1-pole switchable
high version with box terminal 70 mm²
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33770000A
QUADRON®185Power
in-line fuse switch-disconnector 160 A
Size 00, 3-pole switchable
high version with box terminal 70 mm²
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33700000A
QUADRON®185Power
in-line fuse switch-disconnector 160 A
Size 00, 3-pole switchable
high version with screw M8
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33724000A
QUADRON®185Power
in-line fuse switch-disconnector 160 A
Size 00, 3-pole switchable, with fuse monitoring
flat version with screw M8
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33774000A
QUADRON®185Power
in-line fuse switch-disconnector 160 A
Size 00, 3-pole switchable, with fuse monitoring
flat version with box terminal 70 mm²
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33773000A
QUADRON®185Power
in-line fuse switch-disconnector 160 A
Size 00, 3-pole switchable
flat version with box terminal 70 mm²
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33704000A
QUADRON®185Power
in-line fuse switch-disconnector 160 A
Size 00, 3-pole switchable
flat version with screw M8
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33775000A
QUADRON®185Power
in-line fuse switch-disconnector 160 A
Size 00, 1-pole switchable
flat version with box terminal 70 mm²
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33719000A
QUADRON®185Power
in-line fuse switch-disconnector 160 A
Size 00, 1-pole switchable
flat version with screw M8
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33705000A
QUADRON®185Power
NH in-line fuse base 160 A
Size 00, open design
screw M8, flat version
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33592000A
QUADRON®185Power
in-line fuse switch-disconnector 160 A
with extended touch protection IP20 when open
Size 00, 1-pole switchable
high version with box terminal 70 mm²
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

33591000A
QUADRON®185Power
in-line fuse switch-disconnector 160 A
with extended touch protection IP20 when open
Size 00, 1-pole switchable
high version with screw M8
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

33590000A
QUADRON®185Power
in-line fuse switch-disconnector 160 A
high version with box terminal 70 mm²
Size 00, 3-pole switchable
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

33589000A
QUADRON®185Power
in-line fuse switch-disconnector 160 A
with extended touch protection IP20 when open
Size 00, 3-pole switchable
high version with screw M8
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More
