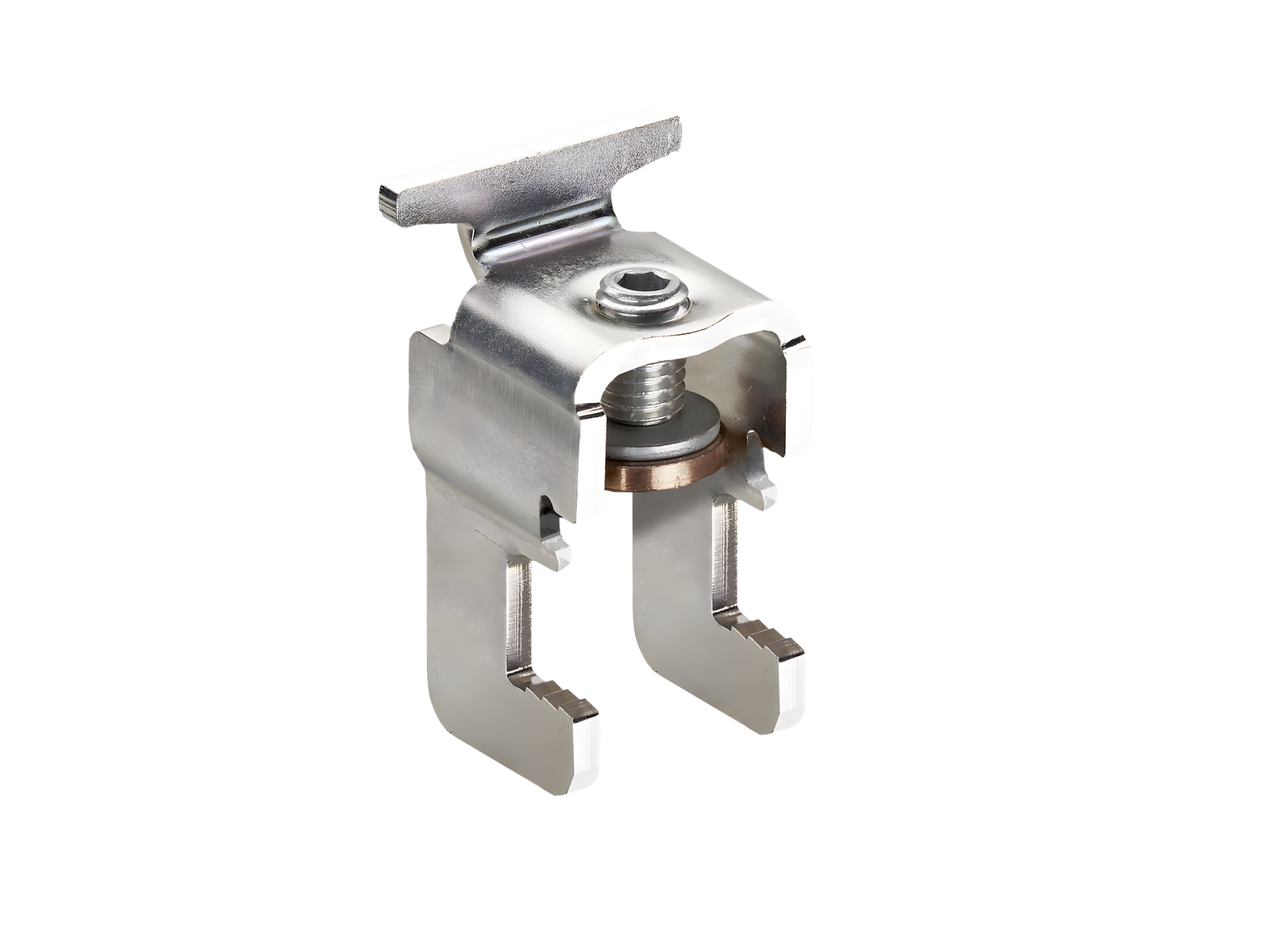

terminal clamp (33739)

The picture may show a similar product.

Description

Part No.: 33739000A

terminal clamp

for busbar systems without system covers

size 00

System

185Power

Product group 12
Subgroup 70
pack size 3
EAN 4021267337391
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Electrical data

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0.0 W.

(The power dissipation at full load would be 0.0 W.)

Mechanical data
weight: 14.0 kg/100
