grip lug cover (79448)

The picture may show a similar product.

Description

Part No.: 79448000

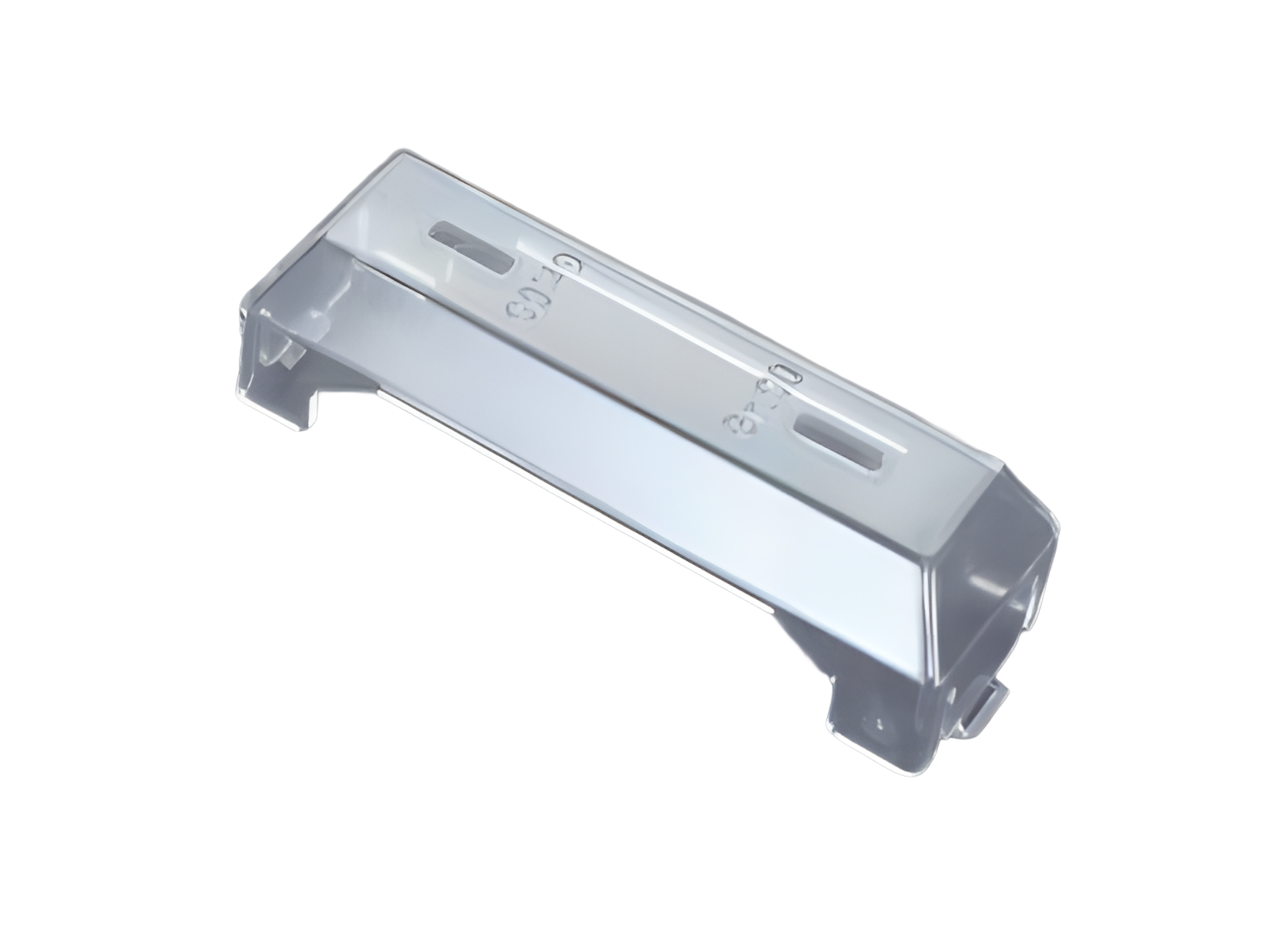

grip lug cover

for NH base and 33705

NH 00

System

60Classic, 100Energy

Product group 10
Subgroup 66
pack size 30
EAN 4021267794484
ECLASS 6.1 27149217
ECLASS 7.1 27149217
ETIM 4.0 EC001660
ETIM 5.0 EC001660

Approvals

Standards

IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016

Technical data

Details IEC
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016
Mechanical data
W x H x D: 30 x 94 x 30
weight: 1.2 kg/100

Application notes

short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

03587000
QUADRON®60Classic
NH fuse-base 160 A
screw, screw-on on bar
size 00 / 1P
More

03761000
QUADRON®Panel
NH fuse-base 160 A
both sides clamp
size 00 / 3P, with touch protection
More

03656000
QUADRON®60Classic
NH fuse base 160 A
screw M8
size 00 / 3P
connection top
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

03654000
QUADRON®60Classic
NH fuse base 160 A
terminal 70 mm²
size 00 / 3P
connection top
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

03759000
QUADRON®Panel
NH fuse-base 160 A
both sides screw M8
size 00 / 3P, with touch protection
More

03760000
QUADRON®Panel
NH fuse-base 160 A
both sides clamp
size 00 / 1P, with touch protection
More

03758000
QUADRON®Panel
NH fuse-base 160 A
both sides screw M8
size 00 / 1P, with touch protection
More

03212000
QUADRON®Panel
NH fuse-base 160 A
both sides screw M8
size 00 / 3P, with long touch protection cover
More

03299000
QUADRON®60Classic
NH fuse-base 160 A
screw M8
size 00 / 3P
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33705000A
QUADRON®185Power
NH in-line fuse base 160 A
Size 00, open design
screw M8, flat version
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

03199000
QUADRON®60Classic
NH fuse-base 160 A
box terminal
size 00 / 3P
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More
