grip lug cover (79448)

The picture may show a similar product.

Description

Part No.: 79448 000

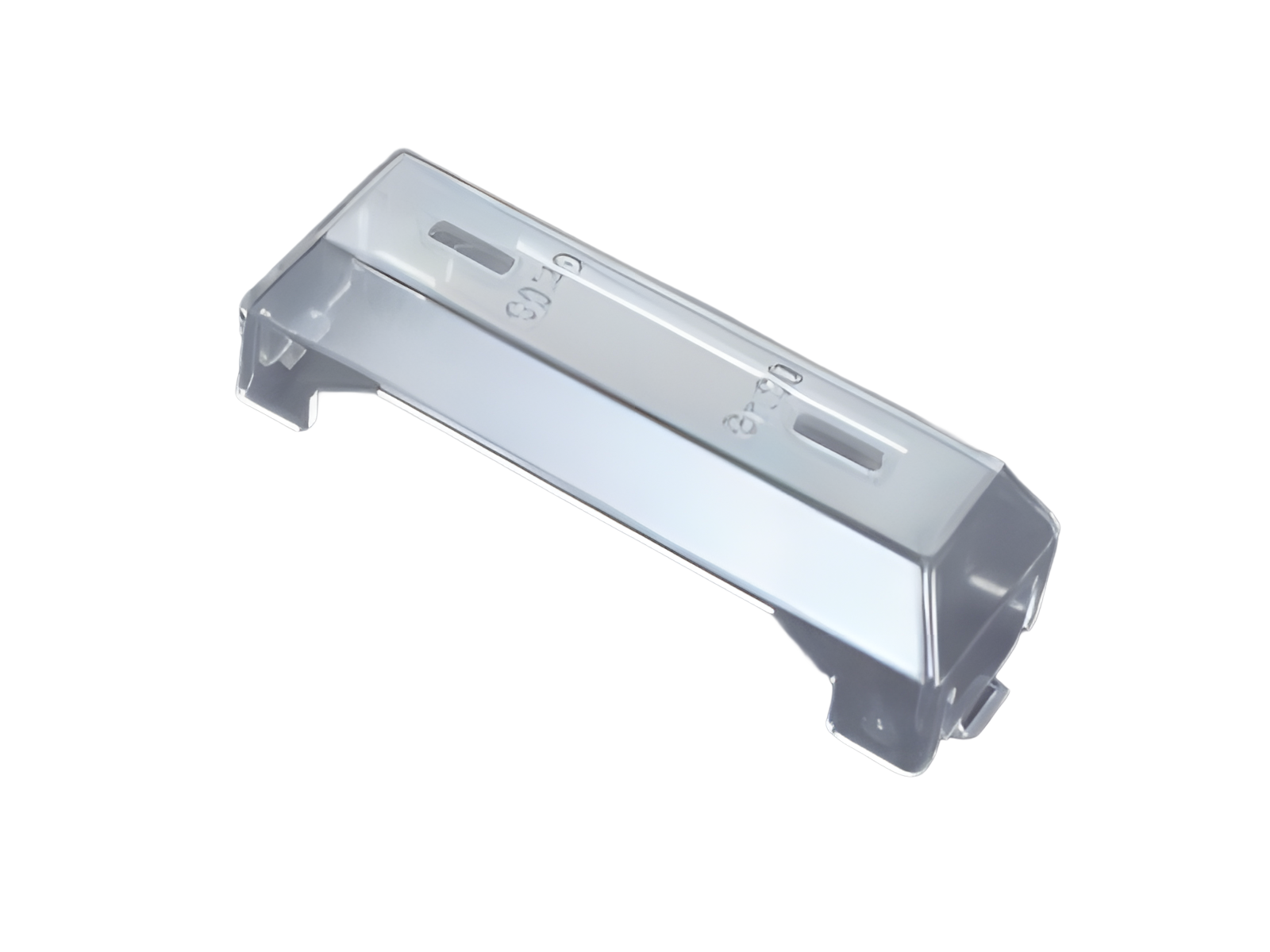

grip lug cover

for NH base and 33705

NH 00

System

60Classic, 100Energy

Product group 10
Subgroup 66
pack size 30
EAN 4021267794484
ECLASS 6.1 27149217
ECLASS 7.1 27149217
ETIM 4.0 EC001660
ETIM 5.0 EC001660

Approvals

Standards

IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016

Technical data

Details IEC
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016
Mechanical data
W x H x D: 30 x 94 x 30
weight: 1,2 kg/100

Application notes

short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit
