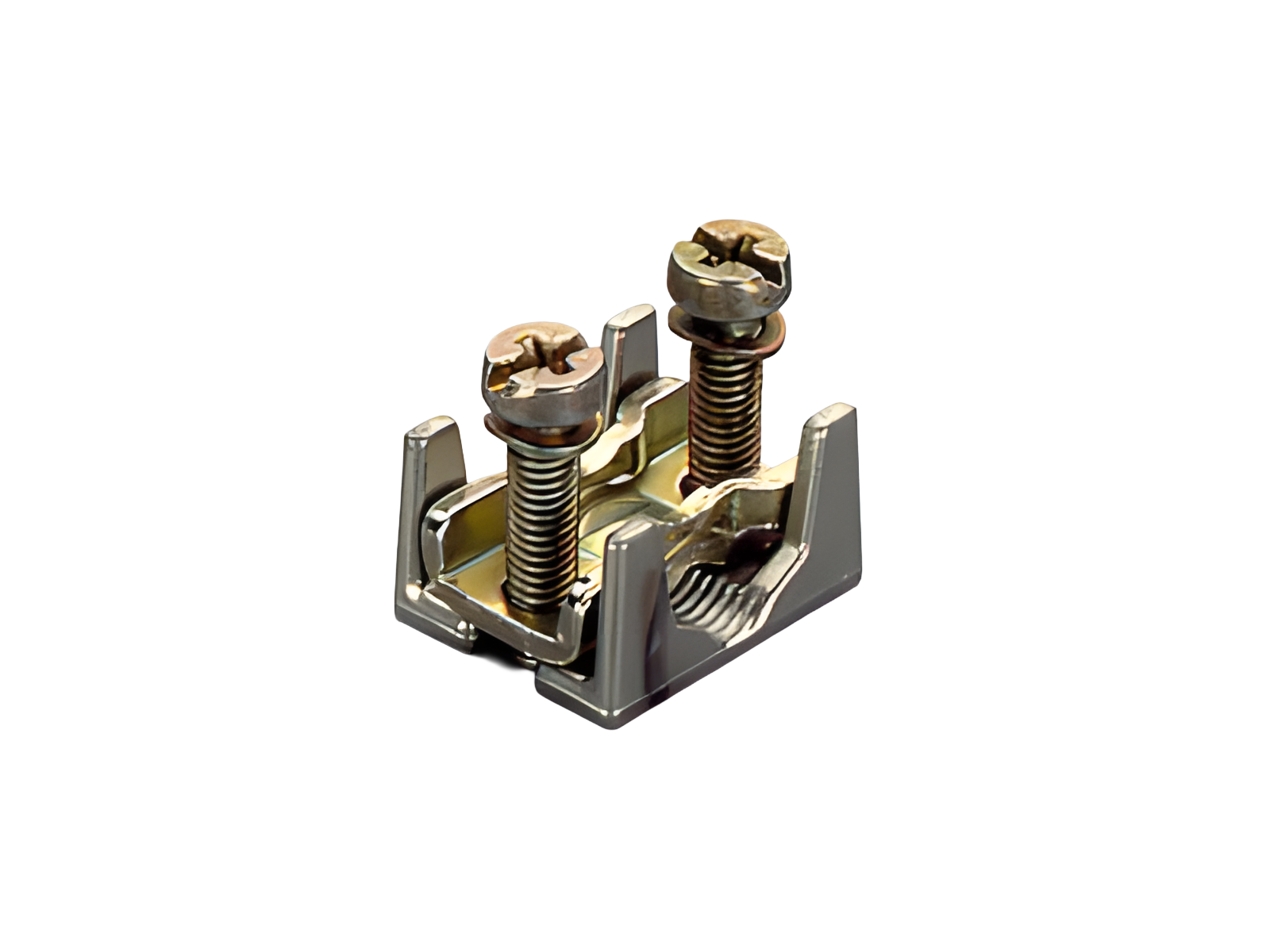

prism terminal, single, for Cu cables (33224)

The picture may show a similar product.

Description

Part No.: 33224000

prism terminal, single, for Cu cables

16 - 70 mm²

NH 00

System

60Classic

Product group 09
Subgroup 51
pack size 3
EAN 4021267332242
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Mechanical data
W x H x D: 106 x 200 x 137
weight: 3.0 kg/100
Terminal points
screw drive: PZ2
wire stripping: 18 mm
min. cross-section: 16 mm²
max. cross-section: 70 mm²
rm: 16 - 70 mm²
f: 16 - 70 mm²
f + AE: 16 - 70 mm²
(f + AE may not fit with max. cross-section)
sm: 16 - 70 mm²
Md min.: 2.4 Nm
Md max.: 3.6 Nm
Not suitable for aluminium cables !

Application notes

Not suitable for aluminium cables !
short-circuit withstandability: determined by main product

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| CAD model 3D STP

| Data packet EPlan (*.edz)

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

33420000AC
NH fuse switch-disconnector size 00, 160 A
screw M8
with electromechanical fuse monitoring
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33394000AC
NH fuse switch-disconnector size 00, 160 A
screw M8
with electronic fuse monitoring
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
Difference: production in China, no CrossLink
More

03299000
QUADRON®60Classic
NH fuse-base 160 A
screw M8
size 00 / 3P
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33079000
QUADRON®60Classic
NH fuse-switch-disconnector size 00, 160 A
screw M8
suitable for 5-pole system
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33207000
QUADRON®Panel
NH fuse switch-disconnector size 00, 160 A, panel mounting
clamp 70 mm²
with electromechanical fuse monitoring
More

33285000
in-line fuse switch-disconnector 160 A
screw M8 / clamp 70 mm², with electronic fuse monitoring
size 00
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33234000
in-line fuse switch-disconnector 160 A
screw M8 / clamp 70 mm²
size 00
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33200000
QUADRON®Panel
NH fuse switch-disconnector size 00, 160 A, panel mounting
screw M8
More

33221000
QUADRON®Panel
NH fuse switch-disconnector size 00, 160 A, panel mounting
clamp 70 mm², with short protection cover
More

33208000
QUADRON®Panel
NH fuse switch-disconnector size 00, 160 A, panel mounting
screw M8
with electromechanical fuse monitoring
More

33222000
QUADRON®Panel
NH fuse switch-disconnector size 00, 160 A, panel mounting
screw M8, with short protection cover
More

33199000
QUADRON®Panel
NH fuse switch-disconnector size 00, 160 A, panel mounting
clamp 70 mm²
More

33286000
in-line fuse switch-disconnector 160 A
screw M8 / clamp 70mm², with electron. fuse monitoring
size 00
for busbars: 30, 40, 50, 60 x 10
More

33329000
QUADRON®Panel
NH fuse switch-disconnector size 00, 160 A, panel mounting
screw M8
with electronic fuse monitoring
More

33235000
in-line fuse switch-disconnector 160 A
screw M8 / clamp 70mm²
size 00
for busbars: 30, 40, 50, 60 x 10
More

33328000
QUADRON®Panel
NH fuse switch-disconnector size 00, 160 A, panel mounting
clamp 70 mm²
with electronic fuse monitoring
More
