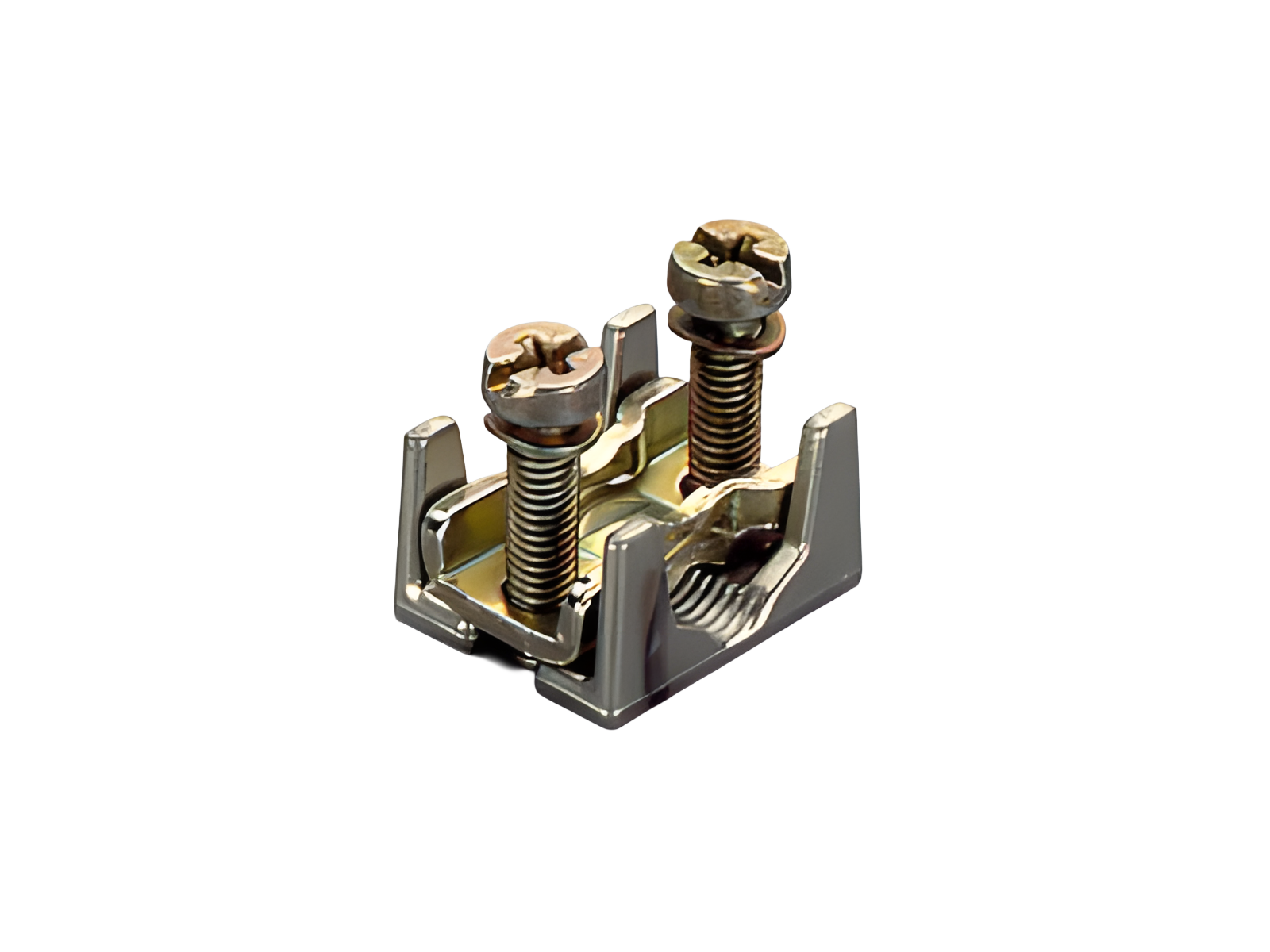

prism terminal, single, for Cu cables (33224)

The picture may show a similar product.

Description

Part No.: 33224 000

prism terminal, single, for Cu cables

16 - 70 mm²

NH 00

System

60Classic

Product group	09
Subgroup	51

pack size	3
EAN	4021267332242

ETIM 5.0	EC002498
ETIM 8.0	EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only

Mechanical data
W x H x D:	106 x 200 x 137
weight:	3.0 kg/100

Terminal points
screw drive:	PZ2
wire stripping:	18 mm
min. cross-section:	16 mm²
max. cross-section:	70 mm²
rm:	16 - 70 mm²
f:	16 - 70 mm²
f + AE:	16 - 70 mm²
(f + AE may not fit with max. cross-section)
sm:	16 - 70 mm²
Md min.:	2.4 Nm
Md max.:	3.6 Nm
Not suitable for aluminium cables !

Material properties
halogen-free:	Yes

Application notes

Not suitable for aluminium cables !

determined by main product

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| Data packet EPlan (*.edz)

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

03299 000
QUADRON^®60Classic
NH fuse-base 160 A
Size NH 00
screw M8
size 00 / 3P
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33420 000
QUADRON^®60Classic
NH fuse switch-disconnector size 00, 160 A
Size NH 00
screw M8
with electromechanical fuse monitoring
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33079 000
QUADRON^®60Classic
NH fuse-switch-disconnector size 00, 160 A
Size NH 00
screw M8
suitable for 5-pole system
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10
More

33285 000
in-line fuse switch-disconnector 160 A
Size NH 00
screw M8 / clamp 70 mm², with electronic fuse monitoring
size 00
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33234 000
in-line fuse switch-disconnector 160 A
Size NH 00
screw M8 / clamp 70 mm²
size 00
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33286 000
in-line fuse switch-disconnector 160 A
Size NH 00
screw M8 / clamp 70mm², with electron. fuse monitoring
size 00
for busbars: 30, 40, 50, 60 x 10
More

33394 000
QUADRON^®60Classic
NH fuse switch-disconnector size 00, 160 A
Size NH 00
screw M8
with electronic fuse monitoring
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33199 000
QUADRON^®Panel
NH fuse switch-disconnector size 00, 160 A, panel mounting
Size NH 00
clamp 70 mm²
for mounting plate
More

33221 000
QUADRON^®Panel
NH fuse switch-disconnector size 00, 160 A, panel mounting
Size NH 00
clamp 70 mm², with short protection cover
for mounting plate
More

33235 000
in-line fuse switch-disconnector 160 A
Size NH 00
screw M8 / clamp 70mm²
size 00
for busbars: 30, 40, 50, 60 x 10
More

33222 000
QUADRON^®Panel
NH fuse switch-disconnector size 00, 160 A, panel mounting
Size NH 00
screw M8, with short protection cover
for mounting plate
More

33200 000
QUADRON^®Panel
NH fuse switch-disconnector size 00, 160 A, panel mounting
Size NH 00
screw M8
for mounting plate
More

33398 000
QUADRON^®60Classic
NH fuse switch-disconnector size 00, 160 A
Size NH 00
screw M8
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33208 000
QUADRON^®Panel
NH fuse switch-disconnector size 00, 160 A, panel mounting
Size NH 00
screw M8
with electromechanical fuse monitoring
for mounting plate
More

33329 000
QUADRON^®Panel
NH fuse switch-disconnector size 00, 160 A, panel mounting
Size NH 00
screw M8
with electronic fuse monitoring
for mounting plate
More

33207 000
QUADRON^®Panel
NH fuse switch-disconnector size 00, 160 A, panel mounting
Size NH 00
clamp 70 mm²
with electromechanical fuse monitoring
for mounting plate
More

33328 000
QUADRON^®Panel
NH fuse switch-disconnector size 00, 160 A, panel mounting
Size NH 00
clamp 70 mm²
with electronic fuse monitoring
for mounting plate
More

https://pim.woehner.de/EN/US/1000047438

Find your contact

to the contact site

Wöhner GmbH & Co. KG
Elektrotechnische Systeme
Mönchrödener Str. 10
96472 Rödental

Order hotline (Germany)
+49 9563 751 161
order@woehner.de

Technical hotline (Germany)
+49 9563 751 260
support@woehner.com
