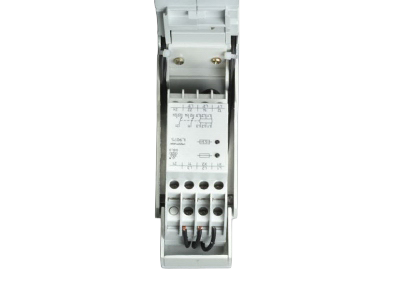

The picture may show a similar product.
Part No.: 33286000
in-line fuse switch-disconnector 160 A
screw M8 / clamp 70mm², with electron. fuse monitoring
size 00
for busbars 30, 40, 50, 60 x 10
System
100Energy
Advantages of the product
Self-closing inspection holes are available in the cover.
Electronic fuse monitoring:
operating current principle, optionally with latching properties (latches without bridge X1-X2)
device display:
green LED = intact fuses
red LED = fuse tripped, cover position up
| Product group | 12 |
| Subgroup | 51 |
| pack size | 1 |
| EAN | 4021267332860 |
| catalog page | 2015 : 3.2 |
| ECLASS 6.1 | 27142108 |
| ECLASS 7.1 | 27142108 |
| ETIM 4.0 | EC001046 |
| ETIM 5.0 | EC001046 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Approvals
IEC (CB) , CCC , EAC
type number: SLS-00
EAC Type: NH
CCC certificate: 2004010302117261
| for fuse links size: | NH 000, NH 00 |
| fuse links acc. to standard: | IEC / HD 60269-2 |
| permitted power dissipation of the fuse-link: | 12 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| Details IEC | |
| Standards | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Electrical data IEC | |
| Rated current (IEC): | 160 A |
| rated voltage (IEC) AC: | 400 V |
| rated isolation voltage Ui AC: | 400 V |
| rated surge voltage Uimp : | 4 kV |
| Utilisation category AC (IEC 60947-3) : | AC-23B (400V) |
| cond. short-circuit current with fuses (AC): | 50 kA / 690 V |
| approved wth fuse links of operation class: | gG |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 12.8 W.
(The power dissipation at full load would be 20.0 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. |
| Electronic fuse monitoring: nominal voltage: 3AC 400V, nominal frequency: 50...40Hz, switch contact: 2 changeover switches, max. AC 250V, AC15 closer 3A, opener 1A, rated surge voltage: 4kV, pollution degree: 2 |
|
| Degree of protection IP30 at front, degree of protection near terminal depends on installation |
| Mechanical data | |
| W x H x D: | 49 x 610 x 136 |
| weight: | 143.0 kg/100 |
| for busbars: | 30, 40, 50, 60 x 10 |
Type of fastening: can be screwed onto drilled busbar,
M8, 12 - 14Nm torque,
or using terminal clamp,
adapter for 185-mm-System,
connection 70mm², screw M8, 12 - 14Nm torque,
connection clamp 1.5-70mm², 3Nm torque
wedge clamp terminal 16-70mm², 3Nm torque
Conductor connection, fuse monitoring:
2 x 2.5mm² solid DIN 46 288 or
2 x 1.5mm² braid with ferrule DIN 46 228-1/-2/-3
| Terminal points | |
|
screw M8 : |
|
Reference
with adapter (accessory) for the 185mm-System power
