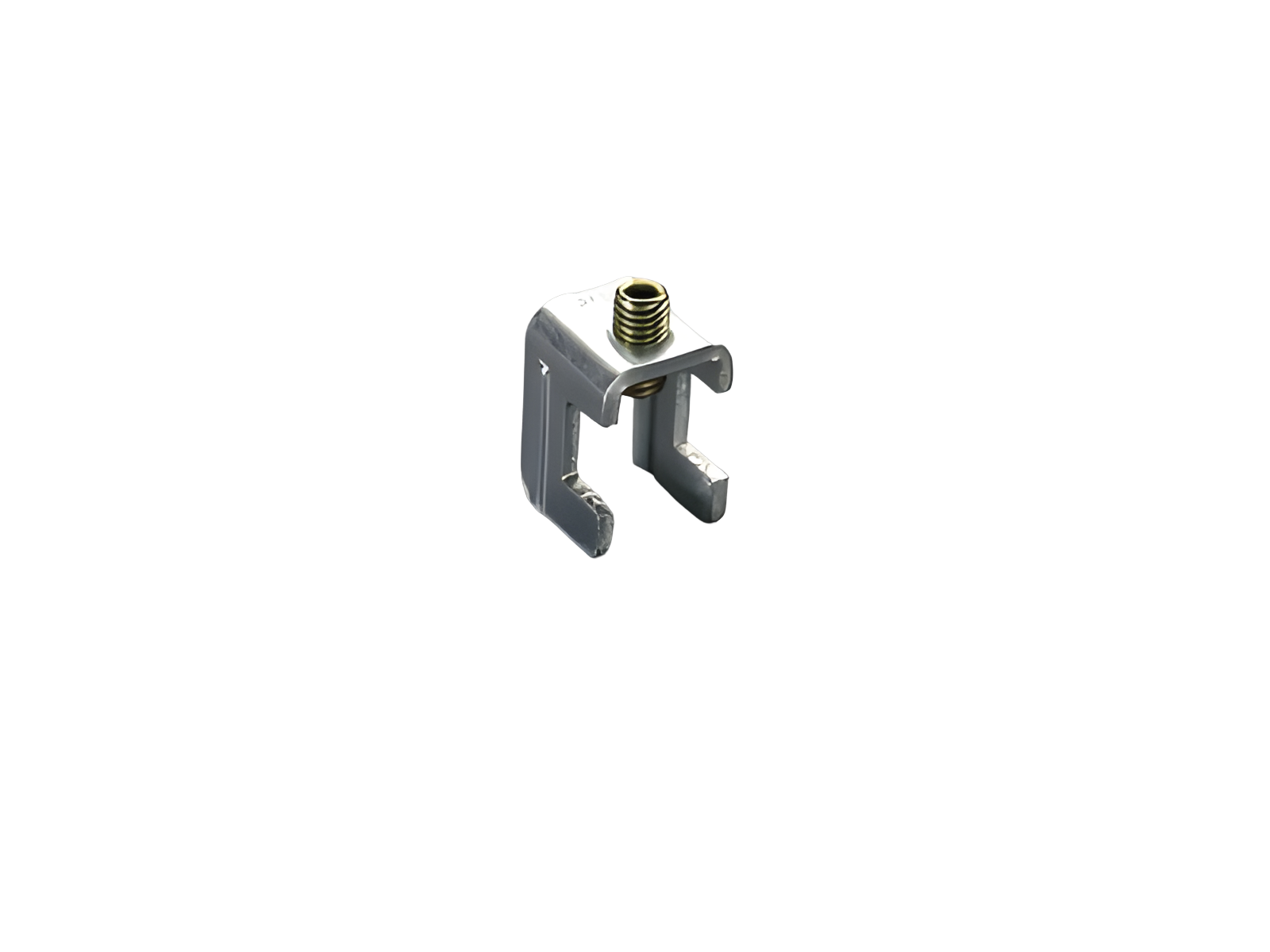

terminal clamp (33238)

The picture may show a similar product.

Description

Part No.: 33238000

terminal clamp

size 00

for 33235

System

100Energy

Product group	12
Subgroup	70

pack size	3
EAN	4021267332389

catalog page

2015 : 3.2

ECLASS 6.1	27142190
ECLASS 7.1	27142190
ETIM 4.0	EC002498
ETIM 5.0	EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Approvals

EAC

EAC Type: AC-A

Technical data

Details IEC
Standards
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only

Electrical data
short-circuit withstandability:	determined by main product

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0.0 W.

(The power dissipation at full load would be 0.0 W.)

Mechanical data
weight:	3.1 kg/100

Links

Article master data, overviews and prices

Current metal surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| Dimensioned drawing

| EU declaration of conformity

| Declaration of conformity UKCA

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

33384000
QUADRON^®100Energy
NH in-line fuse base, 160 A
wedge terminal 70 mm²
size 00
for busbars: 30, 40, 50, 60 x 10
More

33286000
in-line fuse switch-disconnector 160 A
screw M8 / clamp 70mm², with electron. fuse monitoring
size 00
for busbars: 30, 40, 50, 60 x 10
More

33235000
in-line fuse switch-disconnector 160 A
screw M8 / clamp 70mm²
size 00
for busbars: 30, 40, 50, 60 x 10
More
