The picture may show a similar product.

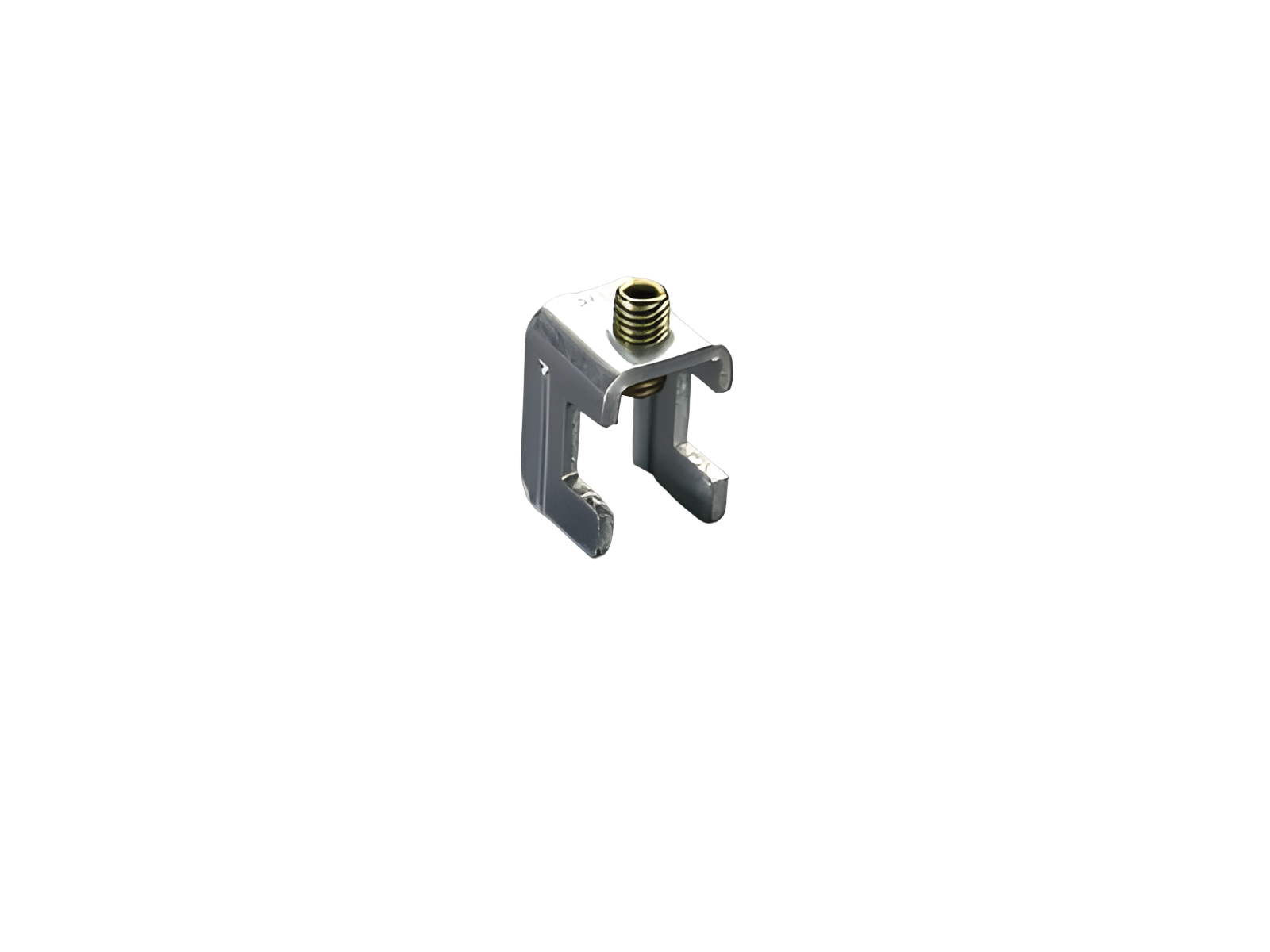

Part No.: 33238 000
terminal clamp
size 00
for 33235
System
100Energy
| Product group | 12 |
| Subgroup | 70 |
| pack size | 3 |
| EAN | 4021267332389 |
| ECLASS 6.1 | 27142190 |
| ECLASS 7.1 | 27142190 |
| ETIM 4.0 | EC002498 |
| ETIM 5.0 | EC002498 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
| Details IEC | |
| Standards | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
Electrical data
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0.0 W.
(The power dissipation at full load would be 0.0 W.)
| Mechanical data | |
| weight: | 3.1 kg/100 |
|
determined by main product |
|

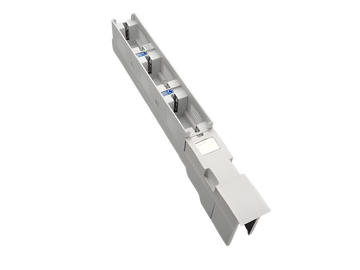

33384
000
QUADRON®100Energy
NH in-line fuse base, 160 A
wedge terminal 70 mm²
size 00
for busbars: 30, 40, 50, 60 x 10
More
33286
000
in-line fuse switch-disconnector 160 A
screw M8 / clamp 70mm², with electron. fuse monitoring
size 00
for busbars: 30, 40, 50, 60 x 10
More
33235
000
in-line fuse switch-disconnector 160 A
screw M8 / clamp 70mm²
size 00
for busbars: 30, 40, 50, 60 x 10
More
