Part No.: 33238000

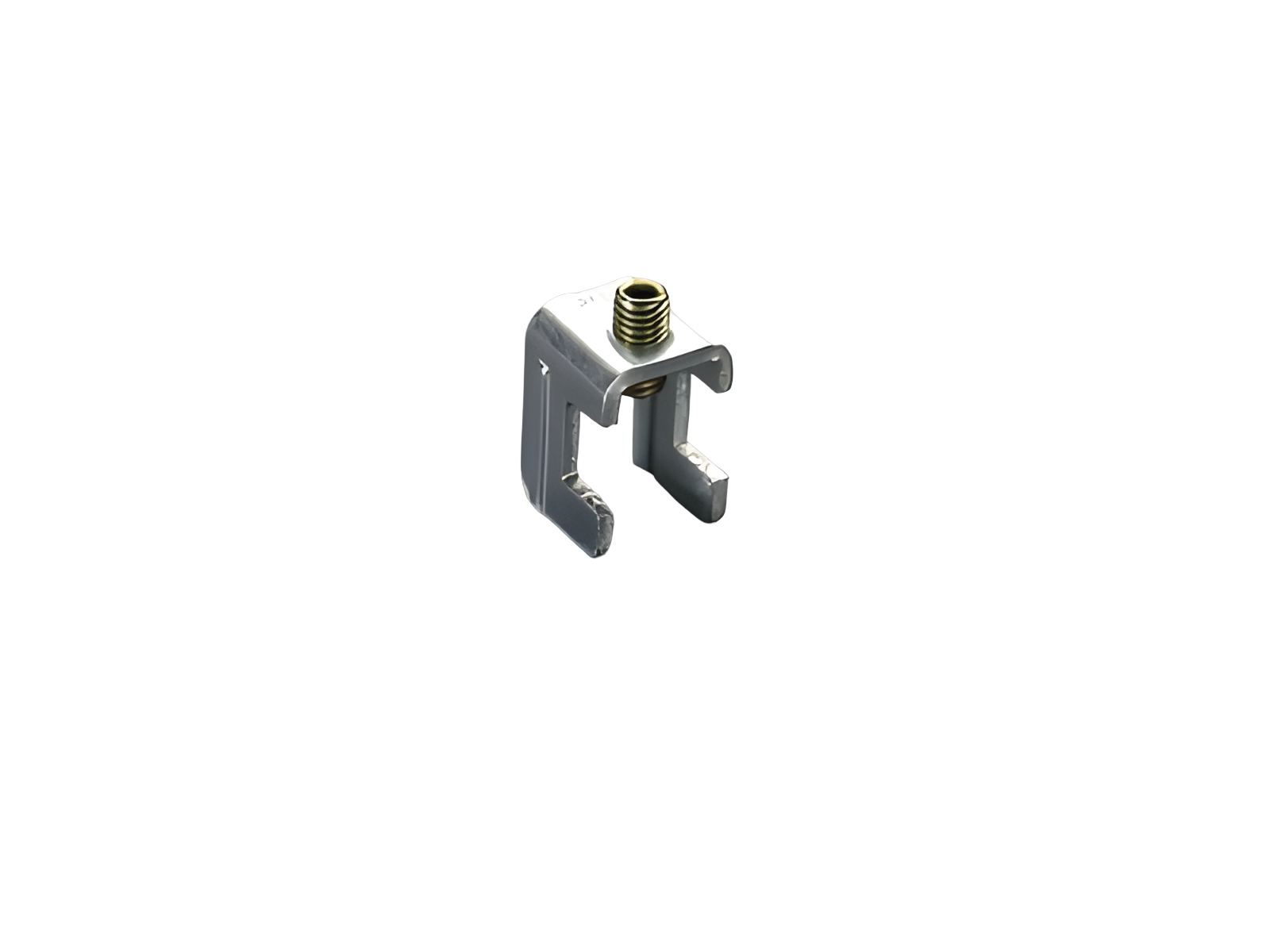

terminal clamp
size 00
for 33235
System
100Energy
Product group | 12 |
Subgroup | 70 |
pack size | 3 |
EAN | 4021267332389 |
ECLASS 6.1 | 27142190 |
ECLASS 7.1 | 27142190 |
ETIM 4.0 | EC002498 |
ETIM 5.0 | EC002498 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Details IEC | |
Standards | |
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
Electrical data
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0,0 W.
(The power dissipation at full load would be 0,0 W.)
Mechanical data | |
weight: | 3,1 kg/100 |
short-circuit withstandability: | determined by main product |
33384000
QUADRON®100Energy
NH in-line fuse base, 160 A
wedge terminal 70 mm²
size 00
for busbars: 30, 40, 50, 60 x 10
More
33286000
in-line fuse switch-disconnector 160 A
screw M8 / clamp 70mm², with electron. fuse monitoring
size 00
for busbars: 30, 40, 50, 60 x 10
More
33235000
in-line fuse switch-disconnector 160 A
screw M8 / clamp 70mm²
size 00
for busbars: 30, 40, 50, 60 x 10
More
