clamp connector for Cu cables (33164)

The picture may show a similar product.

Description

Part No.: 33164000

clamp connector for Cu cables

120 - 240 mm²

for QCB-NH2, LTS-F 400, LTS 630

System

60Classic

Product group 09
Subgroup 51
pack size 1
EAN 4021267331641
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Electrical data

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0.0 W.

(The power dissipation at full load would be 0.0 W.)

Mechanical data
weight: 10.6 kg/100

Cu 120-240mm² s(r), f+AE, lam. Cu 21 x (1-14)mm

Terminal points
Not suitable for aluminium cables !


21 x 13

Application notes

Not suitable for aluminium cables !
short-circuit withstandability: determined by main product

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| Mounting instructions

| CAD model 3D PDF

| CAD model 3D STP

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

33361000

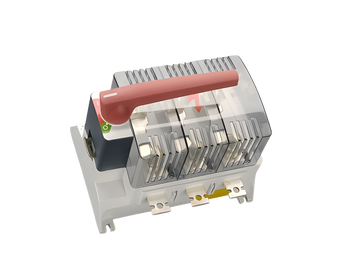

CAPUS®Panel
switch disconnector with fuses, 3-pole
screw M10, red handle
size 2
More

33357000

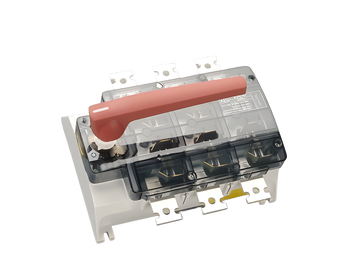

CAPUS®Panel
switch-disconnector 3-pole
screw M10, red handle
630 A
More

33339000

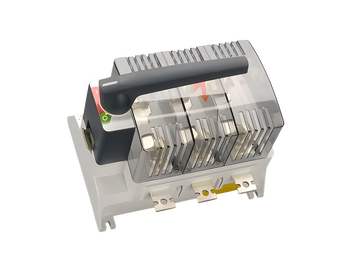

CAPUS®Panel
switch disconnector with fuses, 3-pole
screw M10, graphite-grey handle
size 2
More

33335000

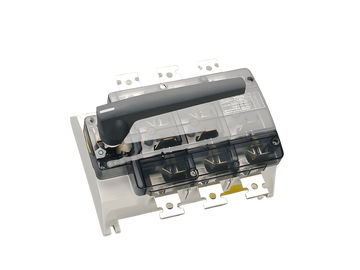

CAPUS®Panel
