The picture may show a similar product.
Part No.: 33164000
clamp connector for Cu cables
120 - 240 mm²

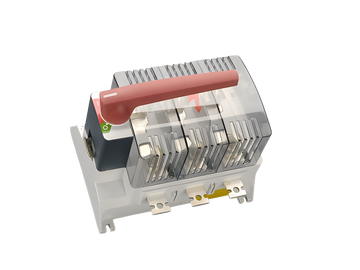

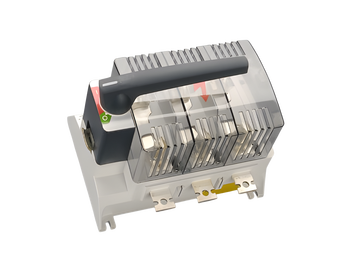

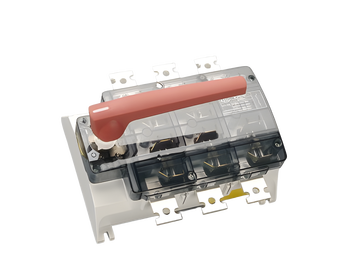

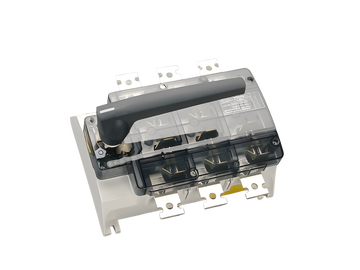

for QCB-NH2, LTS-F 400, LTS 630
System
60Classic
| Product group | 09 |
| Subgroup | 51 |
| pack size | 1 |
| EAN | 4021267331641 |
| ECLASS 6.1 | 27142190 |
| ECLASS 7.1 | 27142190 |
| ETIM 4.0 | EC002498 |
| ETIM 5.0 | EC002498 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
| Details IEC | |
| Standards | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
Electrical data
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0.0 W.
(The power dissipation at full load would be 0.0 W.)
| Mechanical data | |
| weight: | 10.6 kg/100 |
Cu 120-240mm² s(r), f+AE, lam. Cu 21 x (1-14)mm
| Terminal points | |
| Not suitable for aluminium cables ! | |
|
21 x 13 |
|
| Not suitable for aluminium cables ! | |
| short-circuit withstandability: | determined by main product |
