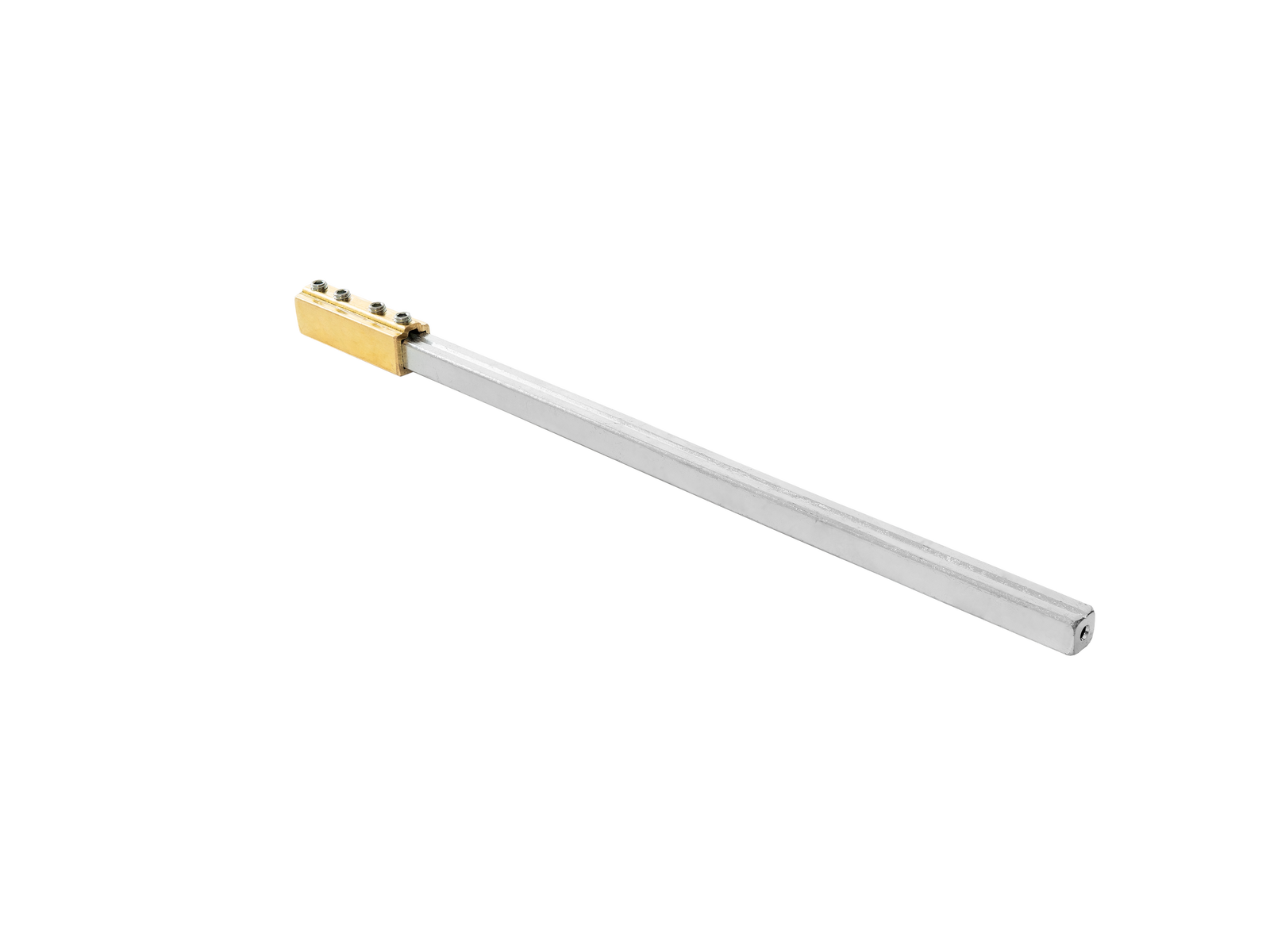

extension shaft, 300 mm long (23923)

The picture may show a similar product.

Description

Part No.: 23923000AD

extension shaft, 300 mm long

for S32 250 A / 400 A

P-10

NEW

Product group	14
Subgroup	51

pack size	1
EAN	4021267239237

ECLASS 6.1	27371492
ECLASS 7.1	27371492
ETIM 4.0	EC000916
ETIM 5.0	EC000916

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only

Mechanical data
weight:	28.1 kg/100

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)
