The picture may show a similar product.
Part No.: 23181 000AD

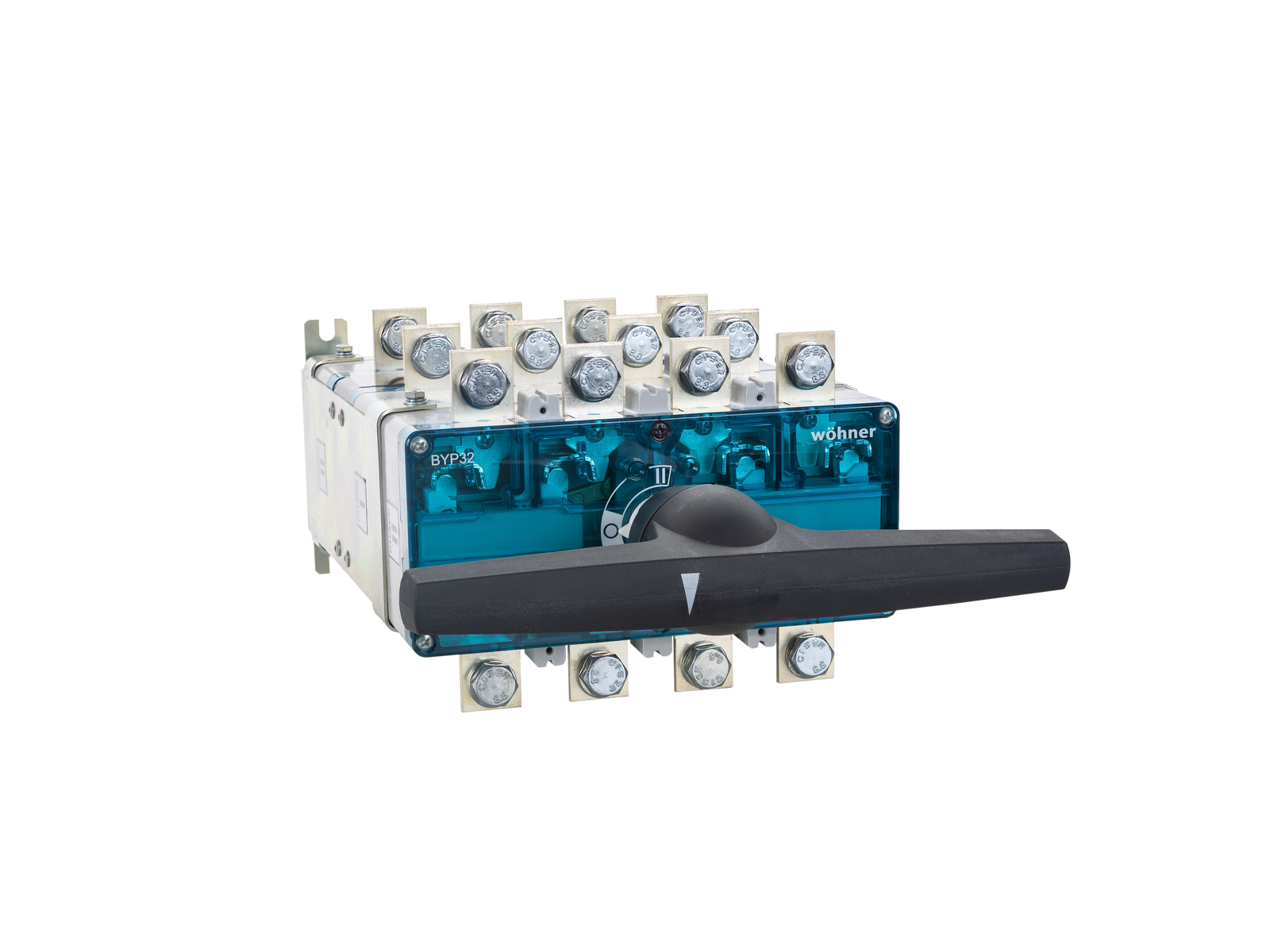

CAPUS Panel
changeover switch 3-pole
screw M8
250 A
for mounting plate
BYP32-250/3
NEW
| Product group | 14 |
| Subgroup | 33 |
| pack size | 1 |
| ETIM 5.0 | EC001040 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
| size: | 2 |
| Details IEC | |
| Standards | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Electrical data IEC | |
| rated current (IEC): | 250 A |
| rated voltage (IEC) AC: | 690 V |
| rated isolation voltage Ui AC: | 1000 V |
| rated surge voltage Uimp : | 8 kV |
| rated short-time withstand current Icw (0.3 s) max.: | 12 kA |
| rated making capacity: | 10 kA |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 20.0 W.
(The power dissipation at full load would be 31.2 W.)
| Mechanical data | |
| W x H x D: | 211 x 135 x 350 |
| weight: | 406.0 kg/100 |
| poles: | 3-pole |
| Mounting: | for mounting plate |
all poles switched at the same time
|
passes Null when reversing |
|
23846
000AD

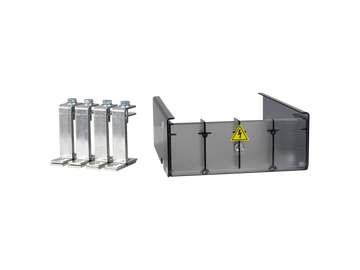

CAPUS Panel
connection bridge
with terminal compartment cover
for: BYP32 250A 3P
NEW
More
23925
000AD
connection terminal
1x 50 - 150 mm²
for: S32 250 A
More
23923
000AD
extension shaft, 300 mm long
for: S32 250 A / 400 A
More
23933
000AD
CAPUS Panel
door coupling rotary drive
graphite grey, without handle
with door interlock, for padlocks
for: BB32 250 A / 400 A
More
23921
000AD
pilot switch
1 n/c + 1 n/o, plug connectors 6.3 x 0.8
for: S32 250 A / 400 A / 630 A / 1000 A / 1250 A / 1600 A / 2500 A / 3150 A
More
