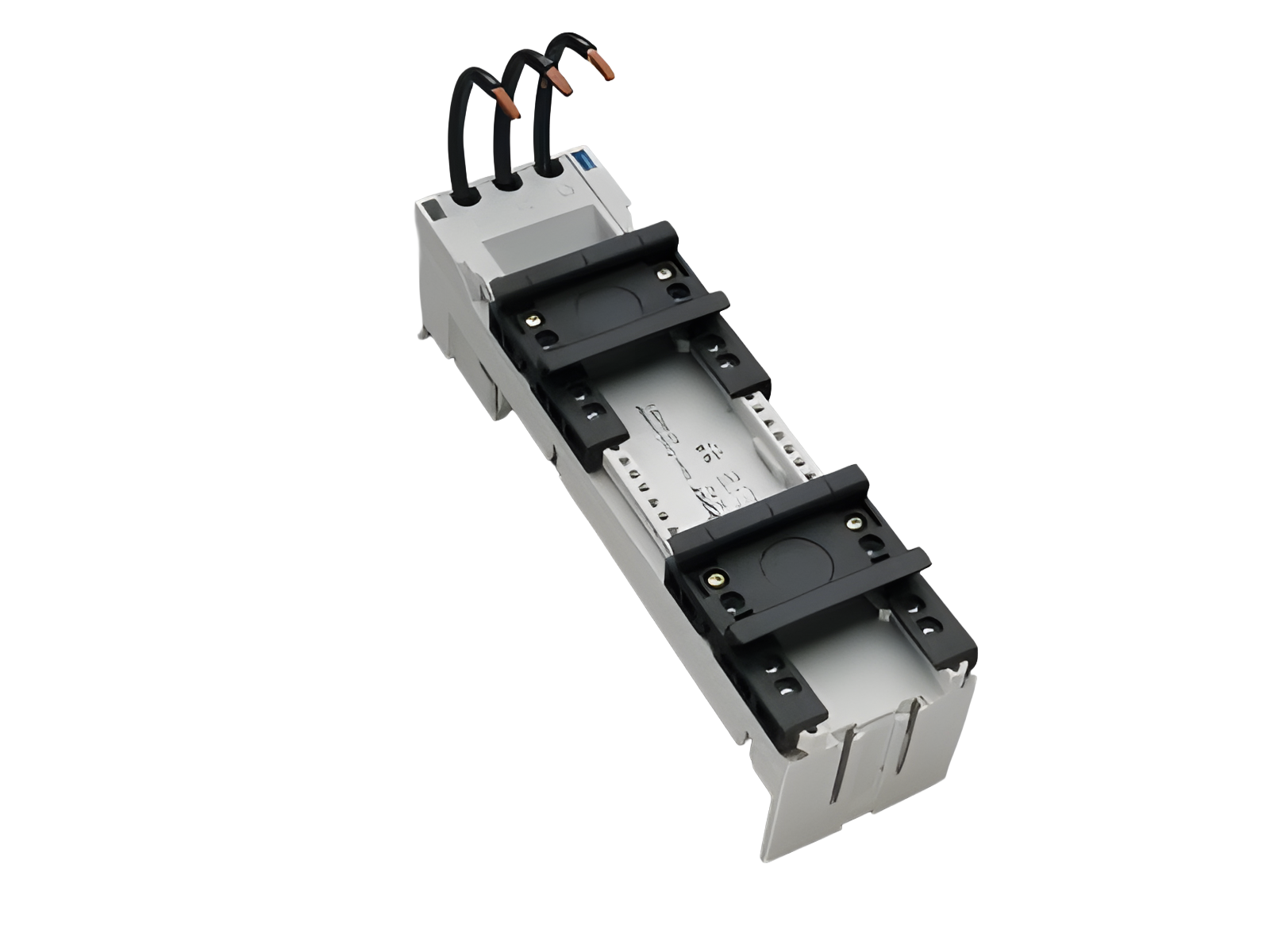

Part No.: 32506000A
EQUES®60Classic
busbar adapter 32 A
for direct starter ABB MS116/132
54 x 200, with leads AWG 10 (6 mm²)
for busbars 12, 15, 20, 25, 30 x 5, 10 and section busbars
phase-out product
System
60Classic
Advantages of the product
Conductor ends ultrasonically sealed.
Click mechanism when pushing onto the busbar.
| Product group | 05 |
| Subgroup | 21 |
| pack size | 4 |
| EAN | 4021267325060 |
| ECLASS 6.1 | 27370304 |
| ECLASS 7.1 | 27370304 |
| ETIM 4.0 | EC001531 |
| ETIM 5.0 | EC001531 |
Standards
IEC 61439-1:2020
UL 508
Approvals
CSA , UL
for UL feeder circuits >250V
type number: EEC6032-L
UL file: E123577, UL category (for USA): NMTR https://www.ul.com
UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
CCC approval: no certification required
| Details IEC | |
| Standards | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| rated current (IEC): | 32 A |
| rated voltage (IEC) AC: | 690 V |
| rated isolation voltage Ui AC: | 800 V |
| rated surge voltage Uimp : | 6 kV |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 1.5 W.
(The power dissipation at full load would be 2.4 W.)
| for direct starter ABB MS116/132 |
| Details UL | |
| Standards | |
| UL 508 |
| for UL feeder circuits >250V |
| Electrical data UL | |
| rated current (UL): | 30 A |
| rated voltage (UL) AC: | 600 V |
| rated frequency (UL): | 50 / 60 Hz |
| SCCR unprotected max.: | 5 kA |
| 3 cycles (without OPD) @ 600 V AC | |
| SCCR protected max.: | 65 kA |
| SCCR: | 65 kA with MS116, MS132 32 A / 480 V AC |
| Mechanical data | |
| W x H x D: | 54 x 200 x 63 |
| weight: | 38.0 kg/100 |
| poles: | 3-pole |
| for busbars: | 12, 15, 20, 25, 30 x 5, 10 and section busbars |
| Terminal points | |
| with leads | |
| AWG10 (6 mm²) | |
| wire stripping: | 9 mm |
| There must be a clearance of at least 12 mm above the article to remove it from the busbar system. | |
| short-circuit withstandability: | the short-circuit capacity of the combination of adapter and motor starter depends on the motor starter |
| for UL feeder circuits >250V | |
